A W Faber "Castell" 389
(10cm Scale Mini rule, Enhanced Mannheim)
Examples: 1922, 1930
Version Comparison
Early and mid versions of the model fully detailed below, differences summarised as follows:
Click on a column heading to jump down to version images and detailed description.
|
|
1922 |
1930 |
|
p Gauge Mark:
|
A & B
|
A, B, C & D
|
|
C & C1 Gauge Marks:
|
-
|
C
|
|
Cursor Spring:
|
Centre rivet
|
Left rivet
|
|
Brand & Model:
|
Centre, centre bottom
|
Well, right top
|
|
"*" or "Scales":
|
*
|
Scales
|
|
Origin Labelling:
|
-
|
Back, centre bottom
|
Click on the images for enlargements.

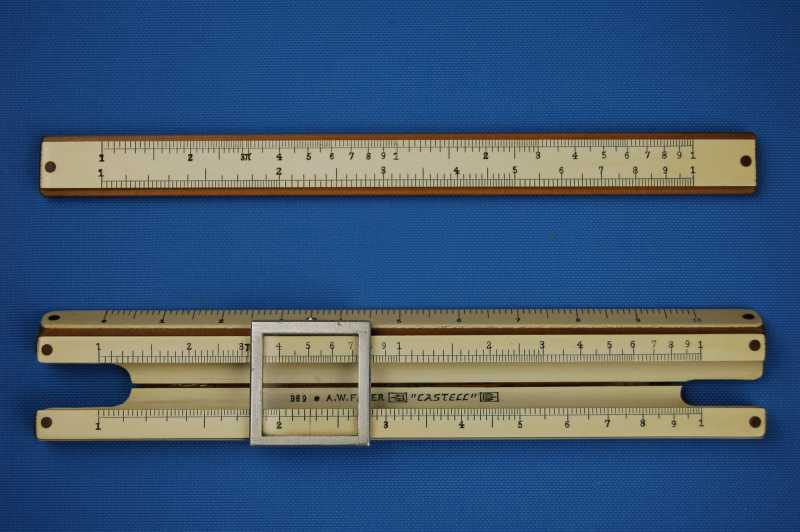

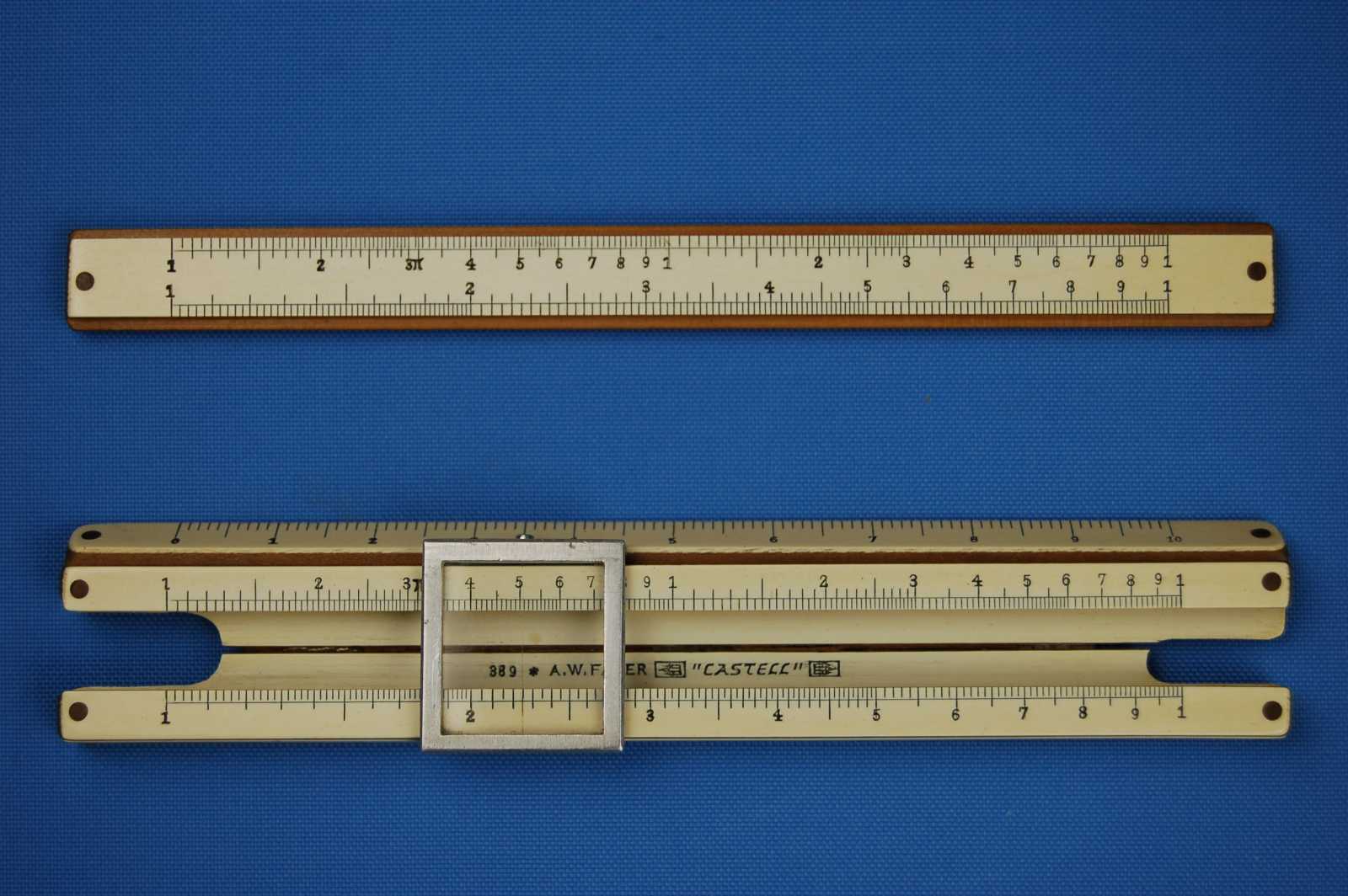

A W Faber "Castell" 389 (1922) |
|
|
Summary
|
|
System:
|
Enhanced Mannheim
|
|
Specialization:
|
-
|
|
Type:
|
Closed frame
|
|
Material:
|
Pearwood
|
|
Facings:
|
Celluliod
|
|
Scale Length:
|
10cm
|
No of Scales:
|
7
|
|
Front Length:
|
122mm
|
Front Width:
|
18mm
|
|
Language:
|
German
|
Origin:
|
-
|
|
Date:
|
1922, December
|
|
Features/Notes:
|
Mini rule
|
|
Scales (colours as shown)
|
|
Front:
|
A [ B, C ] D
|

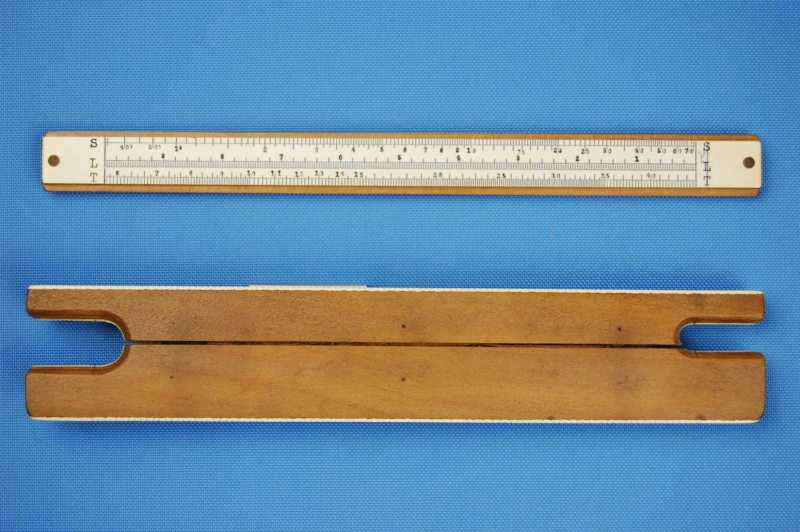

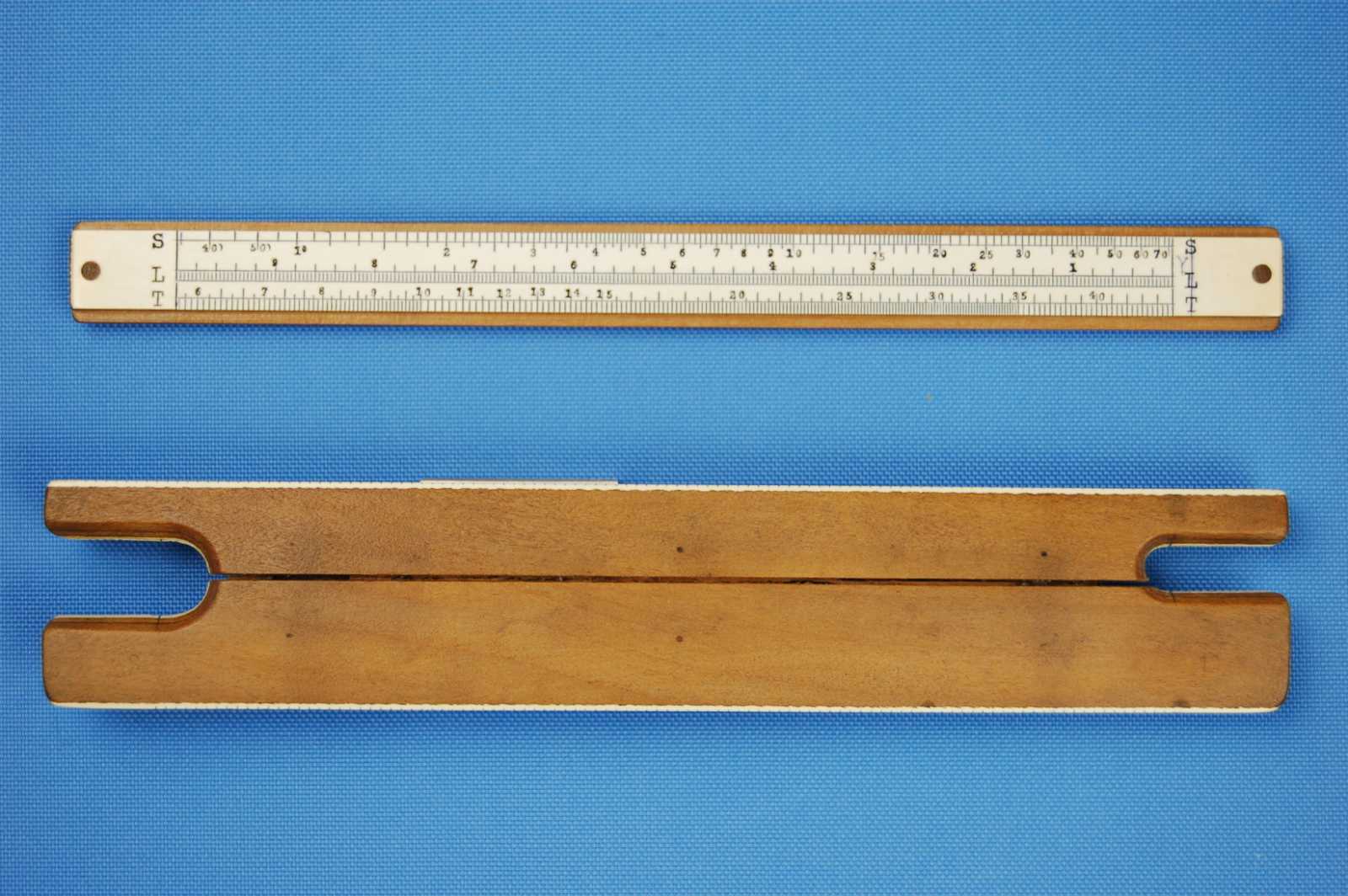

Back:
|
[ S, L, T ]
|
|
Labels Left:
|
-
|
Labels Left:
|
All, as scales
|
|
Labels Right:
|
-
|
Labels Right:
|
All, as scales
|
|
Style:
|
Railway track
|
Typeface:
|
Serif
|
|
Extensions:
|
-
|
Decimals:
|
-
|
|
Gauge Marks:
|
p (3.14) on A & B
|
Rulers:
|
cm on top edge
cm on bottom edge
|
|
Features/Notes:
|
-
|
|
Construction
|
|
Stock:
|
2 part split stock joined with steel springs (DRGM 522689, 1912; DRGM 452965, 1911).
Left and right viewing cutouts with index marks, in back for reverse of slide.
Bevelled top edge, square bottom edge.
High cursor grooves both cut parallel to front face.
Flat back.
Front, well, top and bottom edges celluloid faced, secured with wooden pins (DRGM 371190, 1908).
Length x Width x Height (mm) - 122 x 23 x 8
|
|
Slide:
|
Double sided
Celluliod faced on both sides, secured with wooden pins (DRGM 371190, 1908)
Front face width (mm) - 8
|

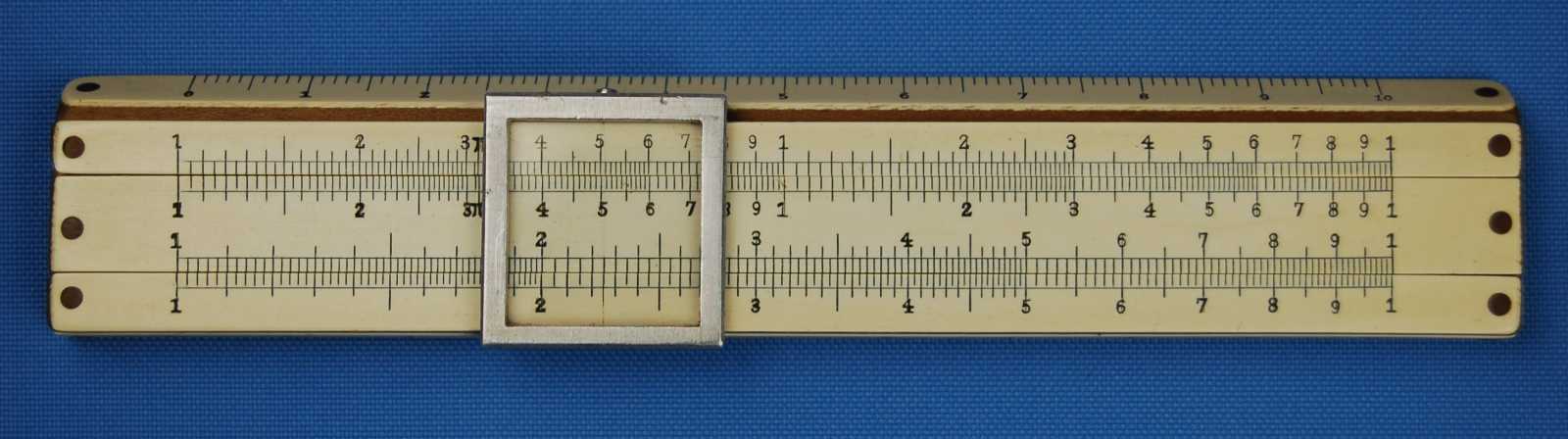

Cursor:
|
Aluminium frame, glass pane.
Square window.
Centre riveted steel spring on top runner.
Single central full length hairline.
Width x Height (mm) - 20 x 21
|
|
Printing (colours as shown)
|
|
Stock:
|

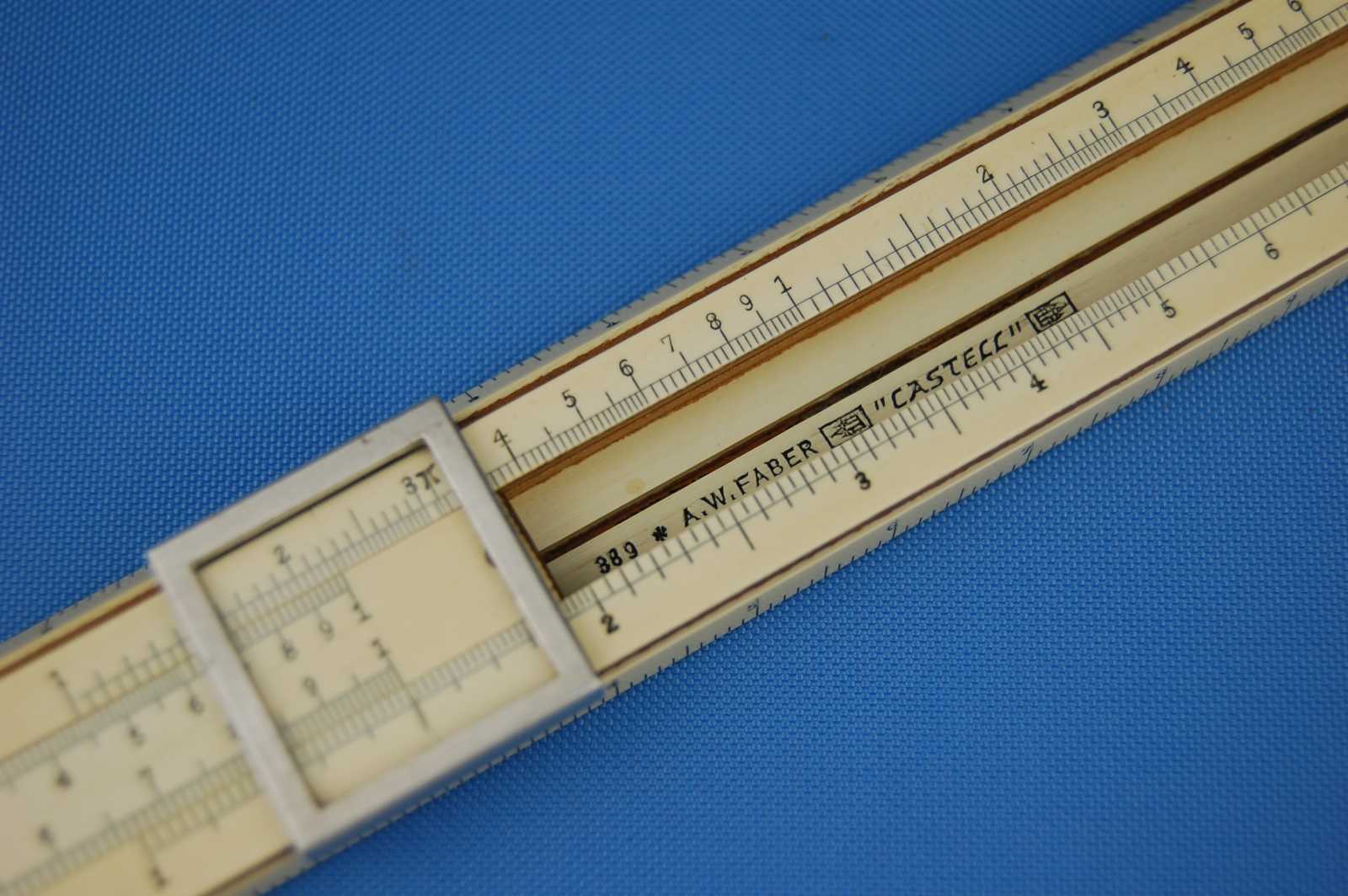

"389 * A.W.FABER" + ""CASTELL"" between lying castles in the centre of the well below the split, sans-serif.
|
|
Slide:
|
-
|
|
Cursor:
|
-
|
|
Labels:
|
None
|
|
Instructions
|
|
None
|
|
Box (colours as shown)
|
|
Style:
|
Rounded
|
L x W x D mm:
|
127 x 32 x 14
|
|
Material:
|
Cardboard
|
Colour:
|
Black
|
|
Construction:
|
2 part, internal sleeve join.
Faced.
Metal braced ends.
|
|
Printing:
|

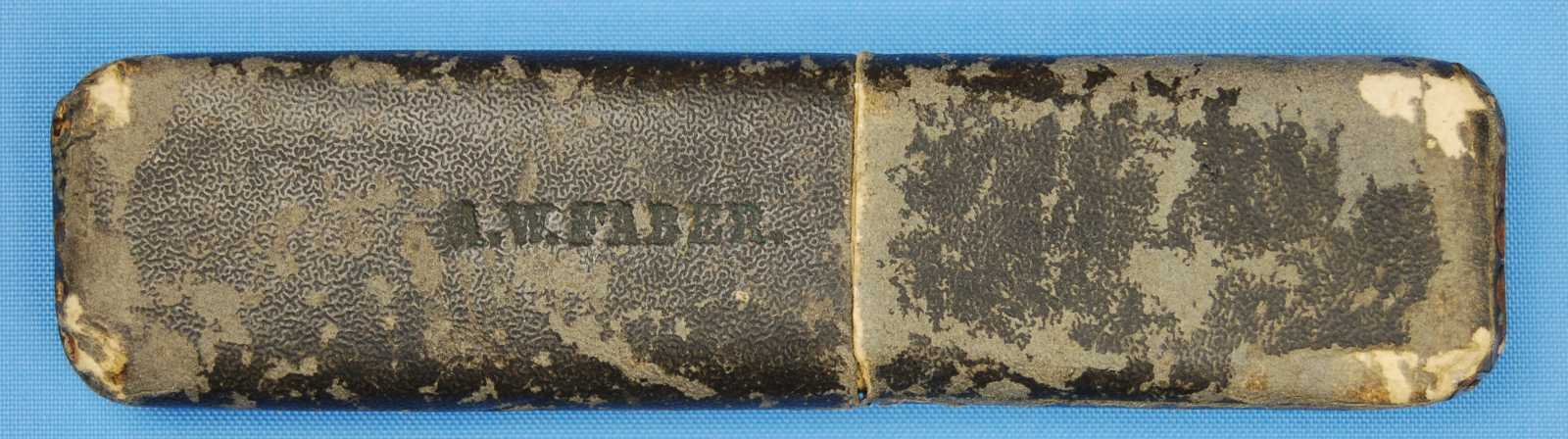

"A.W. FABER." impressed on the front.
|
|
Labels:
|
None seen on ends.

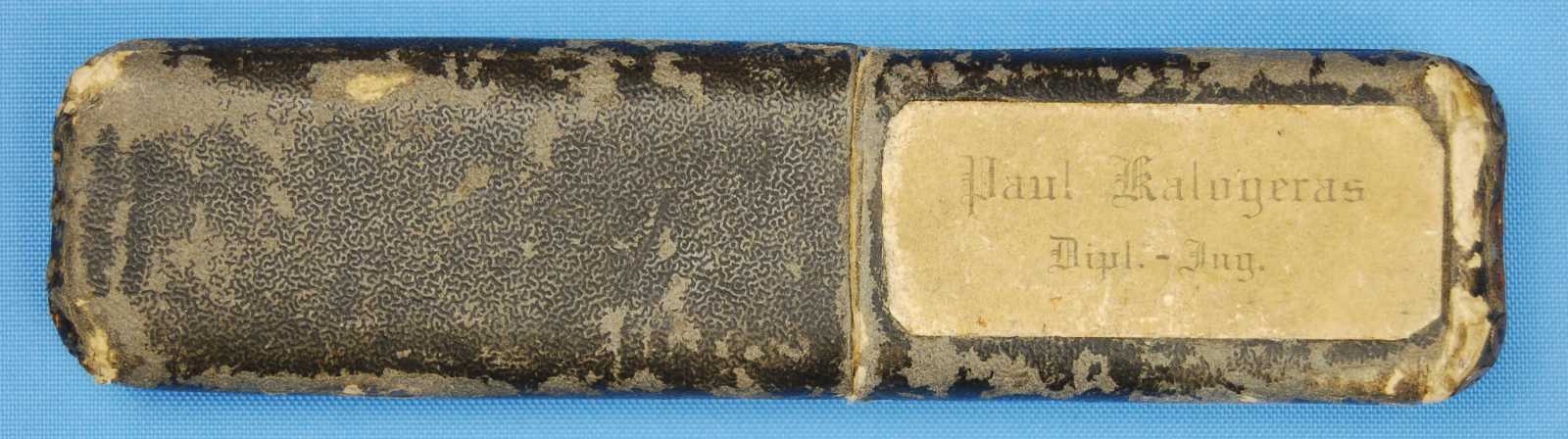

Gold reseller or owner sticker on back with black gothic printing - "Paul Kalogeras" and "Dipl - Ing." underneath.
|
|
Detail Images
|
|
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
|
Click on the images for enlargements.

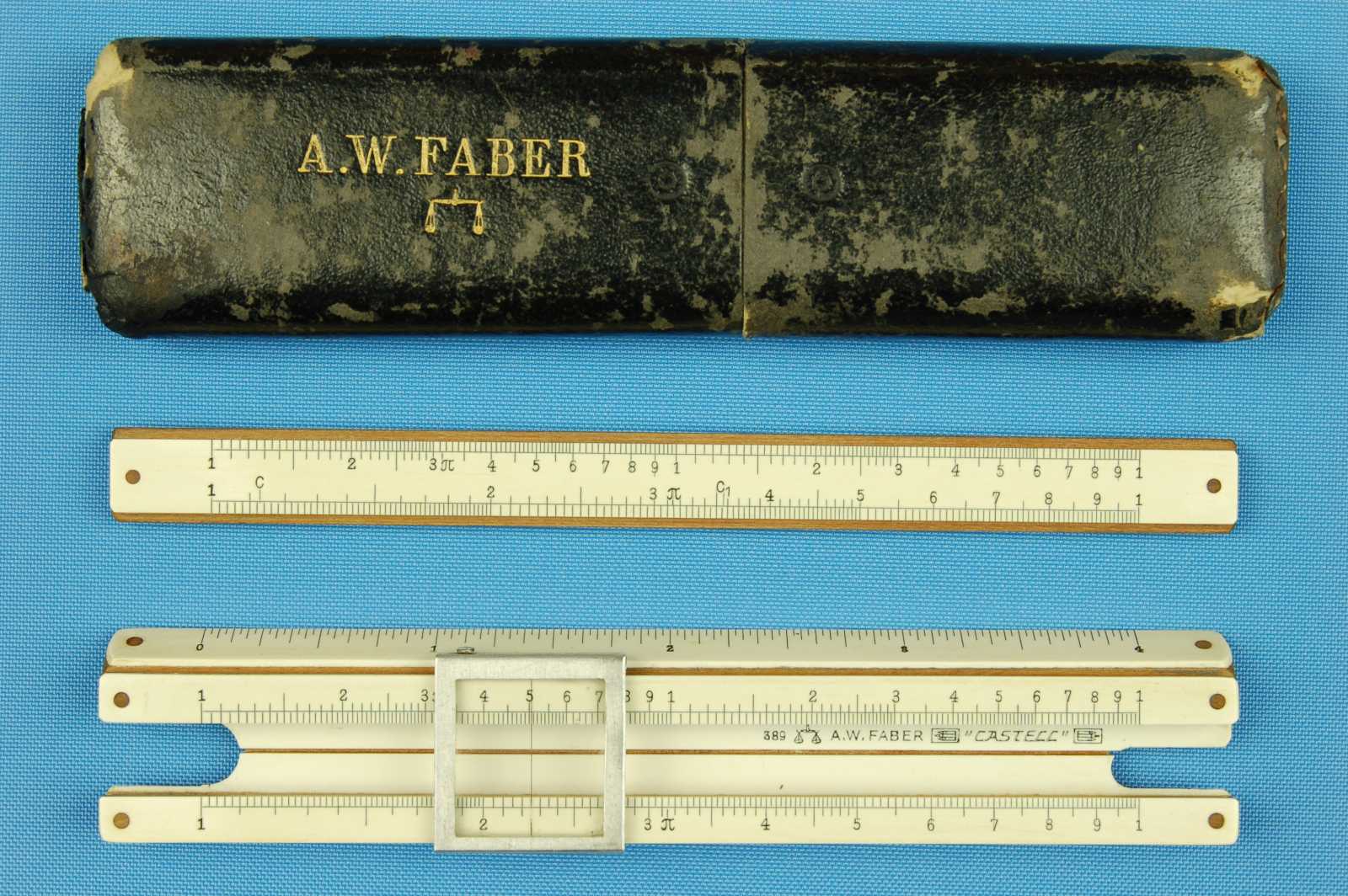

A W Faber "Castell" 389 (1930) |
|
|
Summary
|
|
System:
|
Enhanced Mannheim
|
|
Specialization:
|
-
|
|
Type:
|
Closed frame
|
|
Material:
|
Pearwood
|
|
Facings:
|
Celluliod
|
|
Scale Length:
|
10cm
|
No of Scales:
|
7
|
|
Front Length:
|
122mm
|
Front Width:
|
18mm
|
|
Language:
|
English
|
Origin:
|
Bavaria
|
|
Date:
|
1930, February
|
|
Features/Notes:
|
Mini rule
|
|
Scales (colours as shown)
|
|
Front:
|
A [ B, C ] D
|
Back:
|
[ S, L, T ]
|
|
Labels Left:
|
-
|
Labels Left:
|
All, as scales
|
|
Labels Right:
|
-
|
Labels Right:
|
All, as scales
|
|
Style:
|
Railway track
|
Typeface:
|
Serif
|
|
Extensions:
|
-
|
Decimals:
|
-
|
|

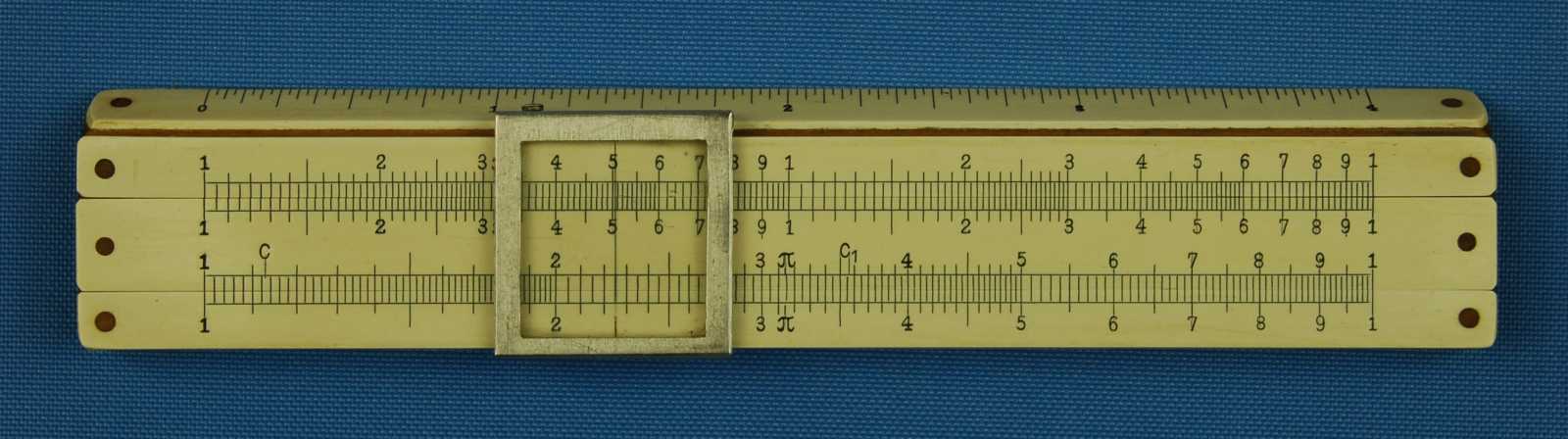

Gauge Marks:
|
p (3.14) on A, B, C & D
C (1.13) on C
C1 (3.57) on C
|
Rulers:
|
inch on top edge
cm on bottom edge
|
|
Features/Notes:
|
-
|
|
Construction
|
|
Stock:
|
2 part split stock joined with steel springs (DRGM 522689, 1912; DRGM 452965, 1911).
Left and right viewing cutouts with index marks, in back for reverse of slide.
Bevelled top edge, square bottom edge.
High cursor grooves both cut parallel to front face.
Flat back.
Front, well, top and bottom edges celluloid faced, secured with wooden pins (DRGM 371190, 1908).
Length x Width x Height (mm) - 122 x 23 x 8
|
|
Slide:
|
Double sided
Celluliod faced on both sides, secured with wooden pins (DRGM 371190, 1908)
Front face width (mm) - 8
|
Cursor:
|
Aluminium frame, glass pane.
Square window.
Left end riveted steel spring on top runner.
Single central full length hairline.
Width x Height (mm) - 20 x 21
|
|
Printing (colours as shown)
|
|
Stock:
|

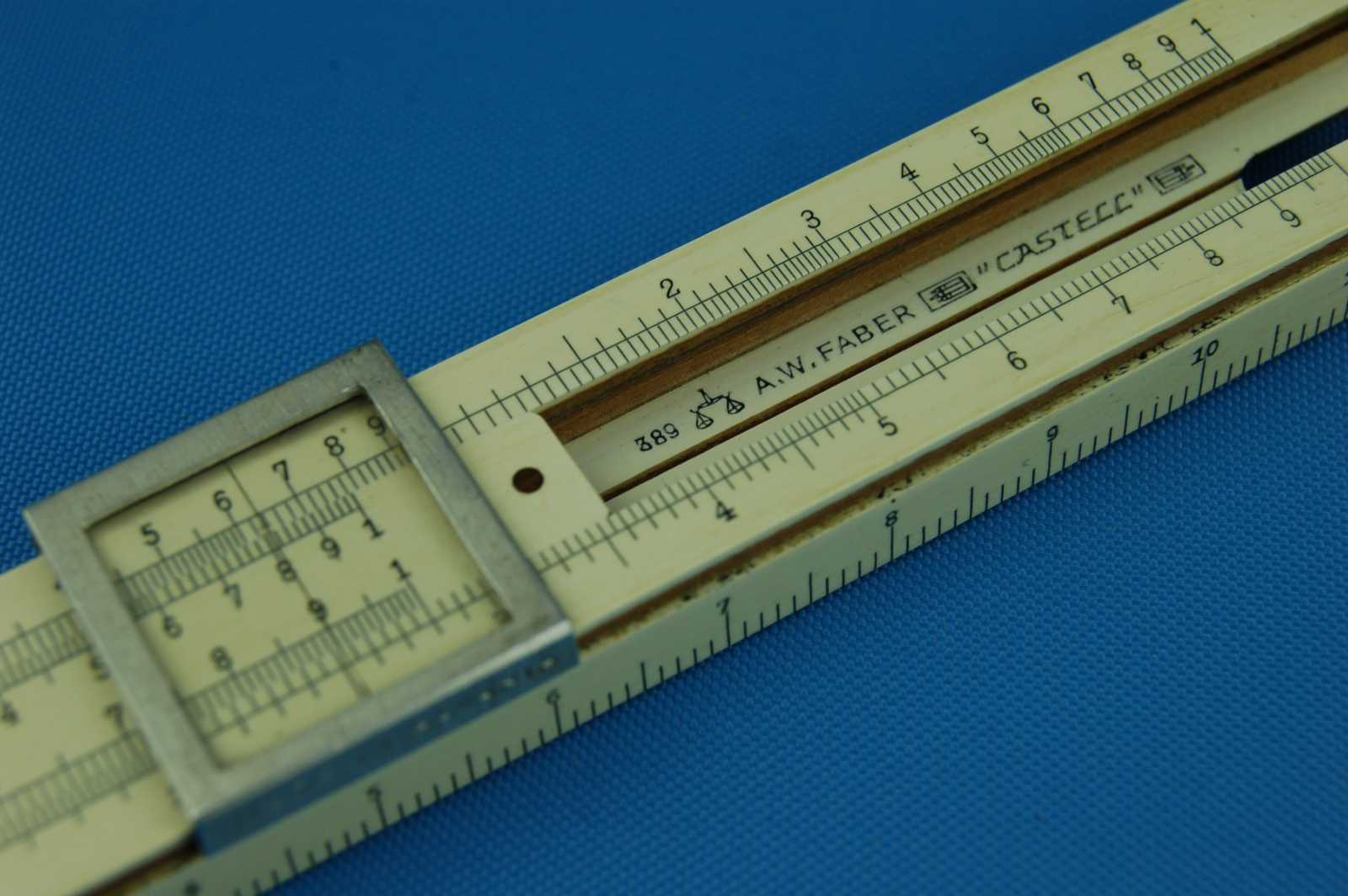

"389" + scales logo + "A.W.FABER" + ""CASTELL"" between lying castles in the well above the split at the right end, sans-serif.

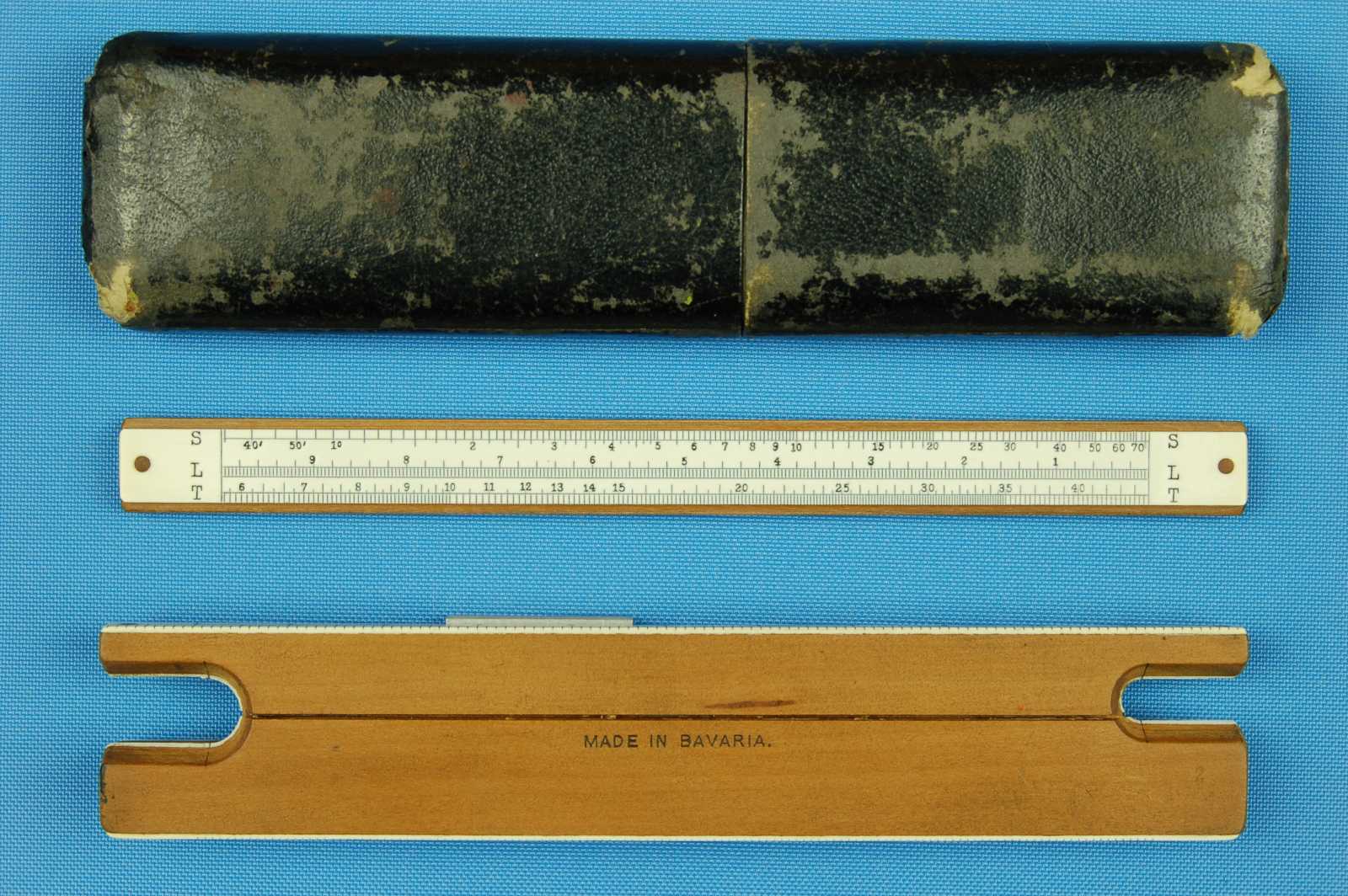

"MADE IN BAVARIA." in the centre of the back below the split, sans-serif.
|
|
Slide:
|
-
|
|
Cursor:
|
"MADE IN BAVARIA" stamped on the bottom edge, sans-serif.
|
|
Labels:
|
None
|
|
Instructions
|
|
None
|
|
Box (colours as shown)
|
|
Style:
|
Rounded
|
L x W x D mm:
|
127 x 32 x 14
|
|
Material:
|
Cardboard
|
Colour:
|
Black
|
|
Construction:
|
2 part, internal sleeve join.
Faced.
Metal braced ends.
|
|
Printing:
|
"A.W. FABER" and underneath scales logo on the front.
Round indentations on the front either side of the opening.
|
|
Labels:
|
None seen (ends damaged).
|
|
Detail Images
|
|
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
|
|
