A W Faber "Castell" 373
(10cm Scale Mini rule, Mannheim, All-celluloid)
Click on the images for enlargements.
A W Faber "Castell" 373 (1931) |
|
|
Summary
|
|
System:
|
Mannheim
|
|
Specialization:
|
-
|
|
Type:
|
Closed frame
|
|
Material:
|
Celluliod
|
|
Facings:
|
-
|
|
Scale Length:
|
10cm
|
No of Scales:
|
4
|
|
Front Length:
|
122mm
|
Front Width:
|
18mm
|
|
Language:
|
German
|
Origin:
|
-
|
|
Date:
|
1931, December
|
|
Features/Notes:
|
All celluliod, mini, promotional rule.
|
|

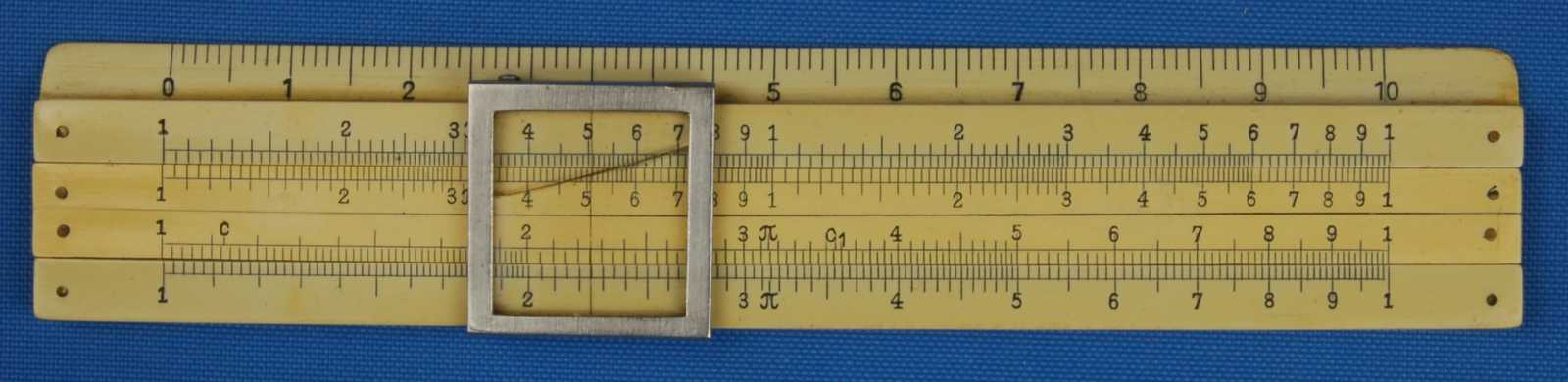

Scales (colours as shown)
|
|
Front:
|
A [ B, C ] D
|
Back:
|
-
|
|
Labels Left:
|
-
|
Labels Left:
|
-
|
|
Labels Right:
|
-
|
Labels Right:
|
-
|
|
Style:
|
Railway track
|
Typeface:
|
Serif
|
|
Extensions:
|
-
|
Decimals:
|
-
|
|
Gauge Marks:
|
p (3.14) on A, B, C & D
C (1.13) on C
C1 (3.57) on C
|
Rulers:
|
cm on top edge flange
inch on back, top edge
|
|
Features/Notes:
|
-
|
|

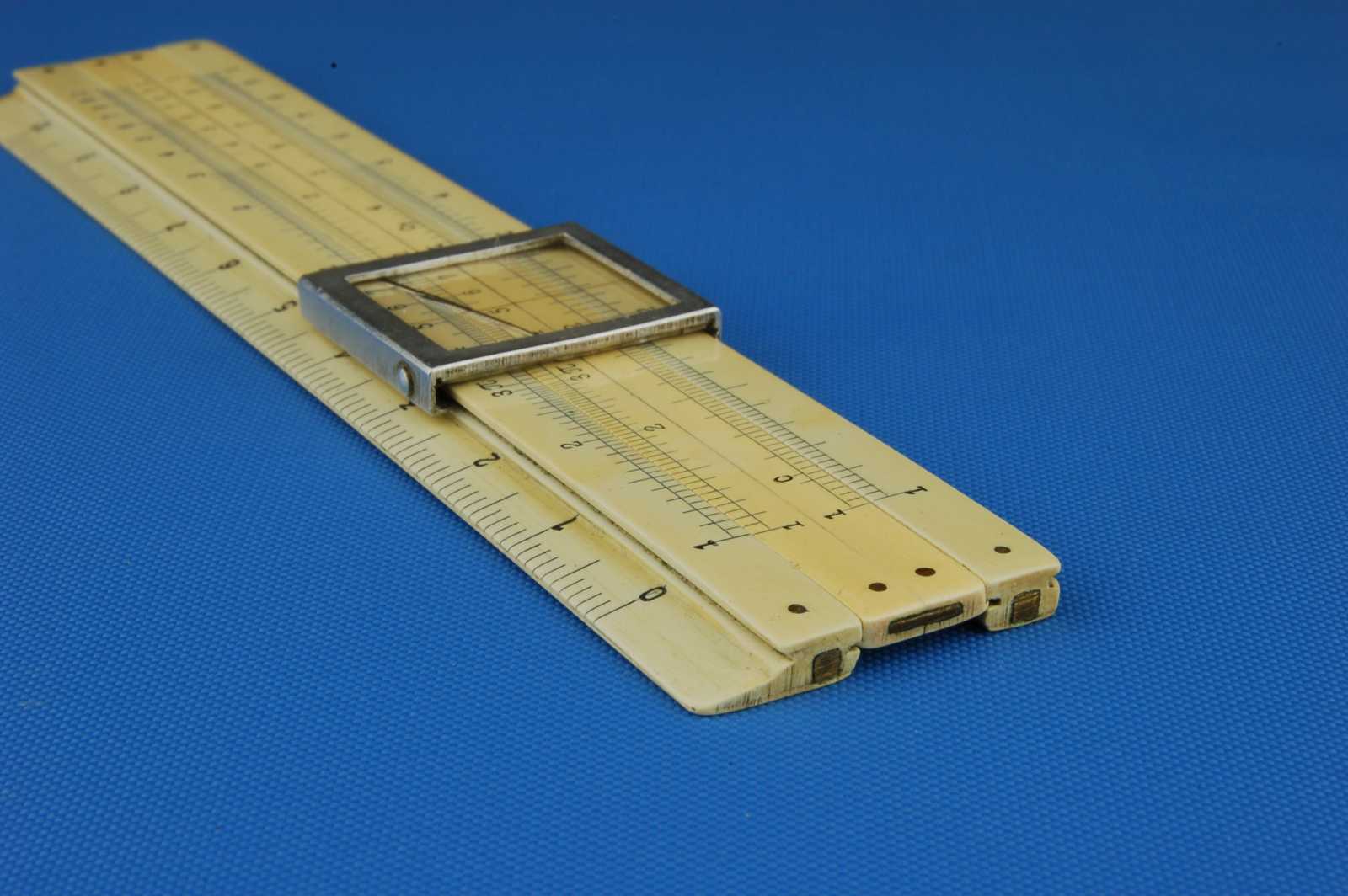

Construction
|
|
Stock:
|
Laminated celluliod secured with brass pins, one at each end of the upper and lower stock rails, 4 in total (possibly DRGM 1186061, 1931).
Braced with longitudinal brass strips (DRGM 559664, 1932).
Left and right finger cut-outs in well.
5mm flange on top edge for ruler, square bottom edge.
High cursor grooves both cut parallel to front face.
Flat back.
Length x Width x Height (mm) - 122 x 23 x 3.5
|
|
Slide:
|
Single sided
Celluloid braced with brass strips (DRGM 559664, 1932).
Laminated celluliod secured with brass pins, two at each end, 4 in total (possibly DRGM 1186061, 1931).
Front face width (mm) - 8
|
Cursor:
|
Aluminium frame, glass pane.
Square window.
Left end riveted steel spring on top runner.
Single central full length hairline.
Width x Height (mm) - 20 x 21
|
|
Printing (colours as shown)
|
|
Stock:
|

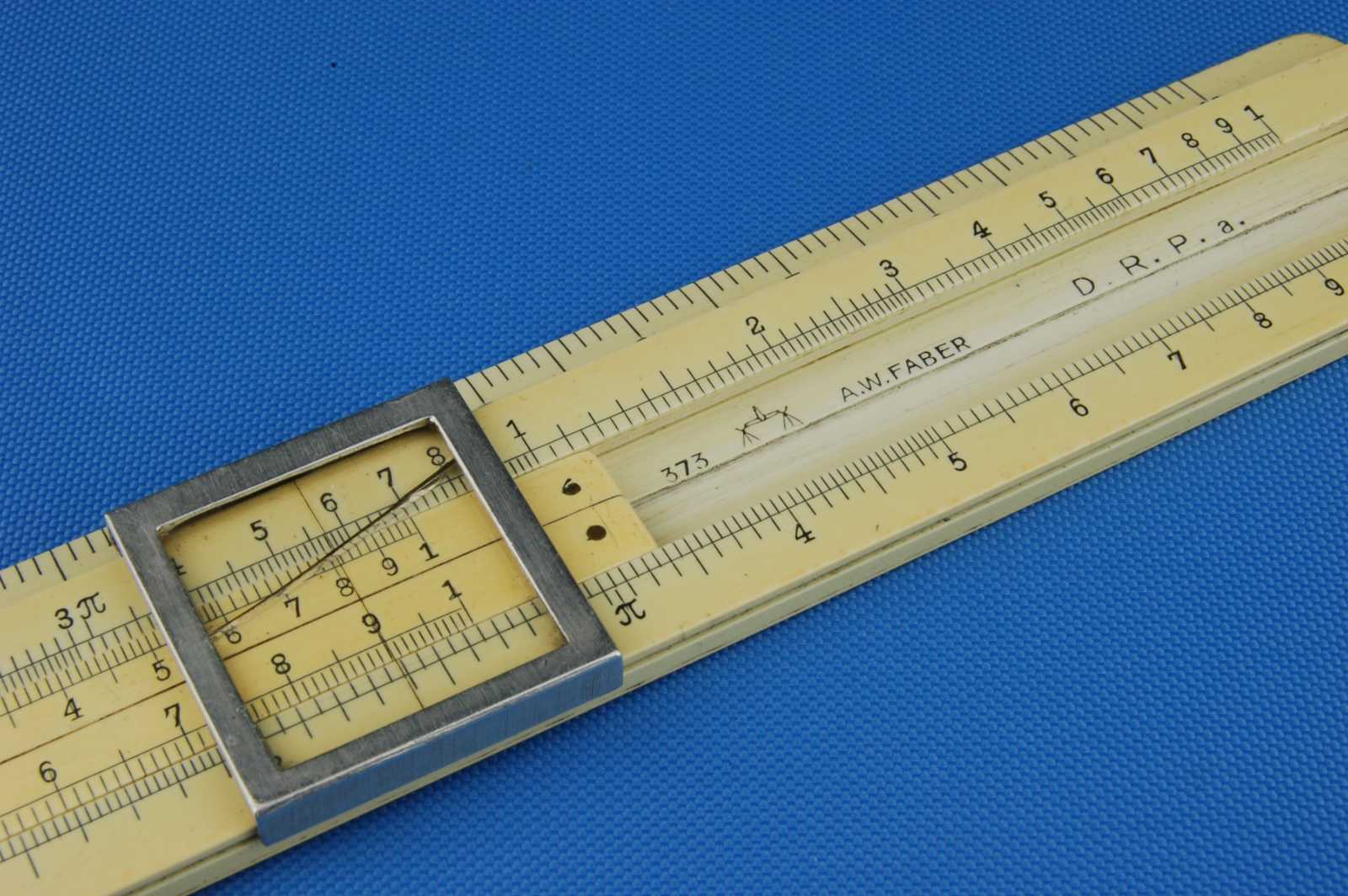

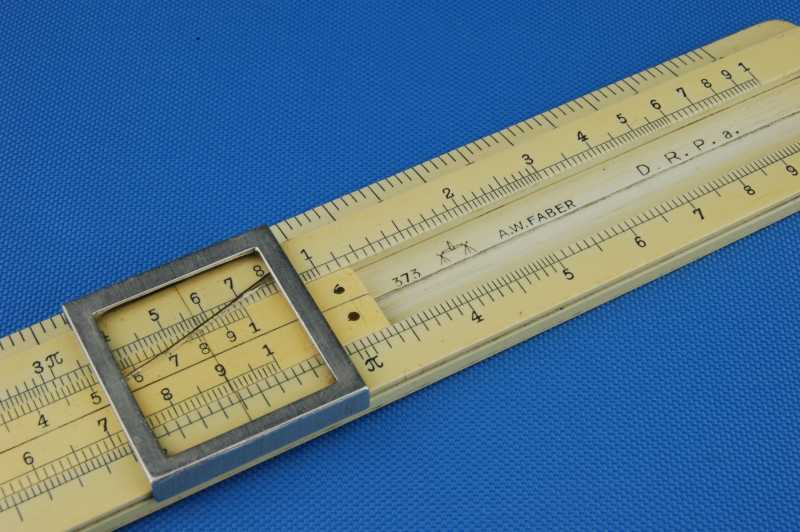

"373" + scales logo + "A.W.FABER" and then "D.R.P.a." in the well above the groove towards the right end, sans-serif.

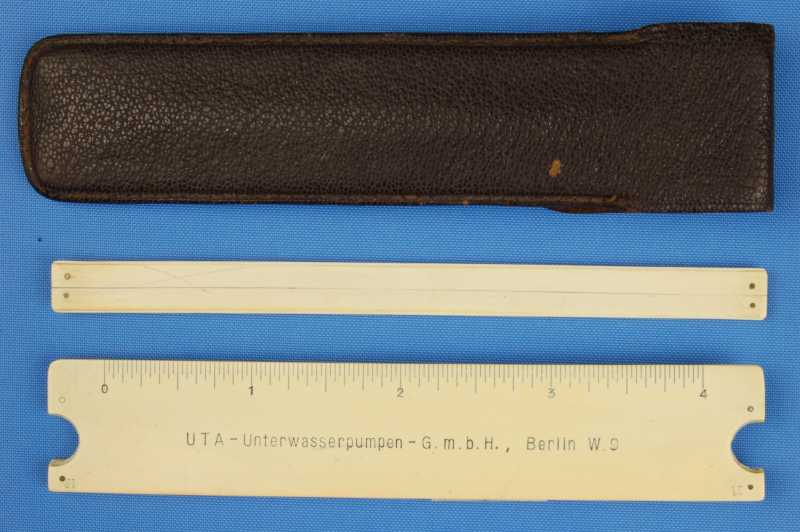

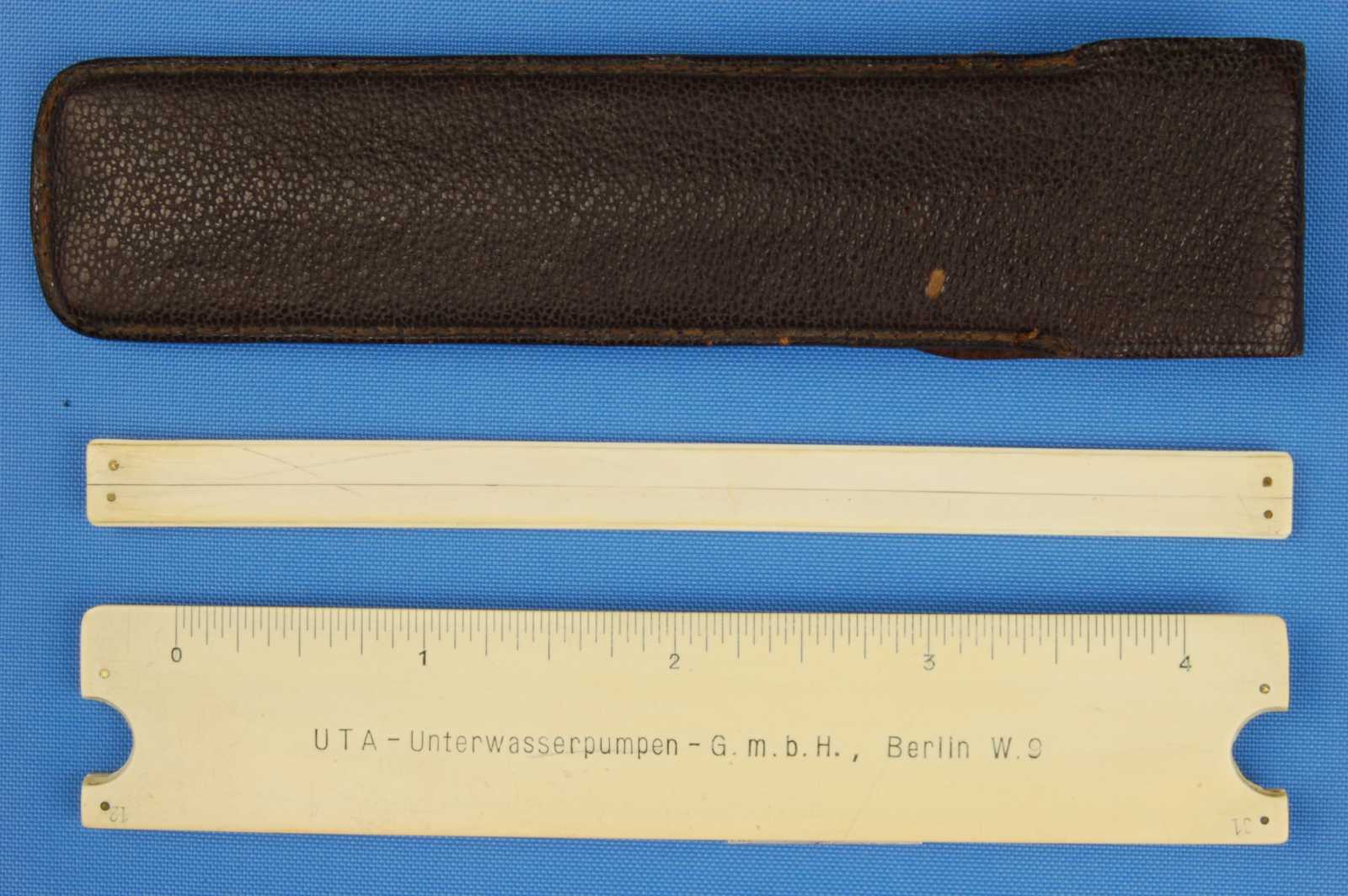

"UTA - Unterwasserpumpen - G.m.b.H., Berlin W.9" in the centre of the back, sans-serif.
|
|
Slide:
|
-
|
|
Cursor:
|
None
|
|
Labels:
|
None
|
|
Instructions
|
|
None
|
|

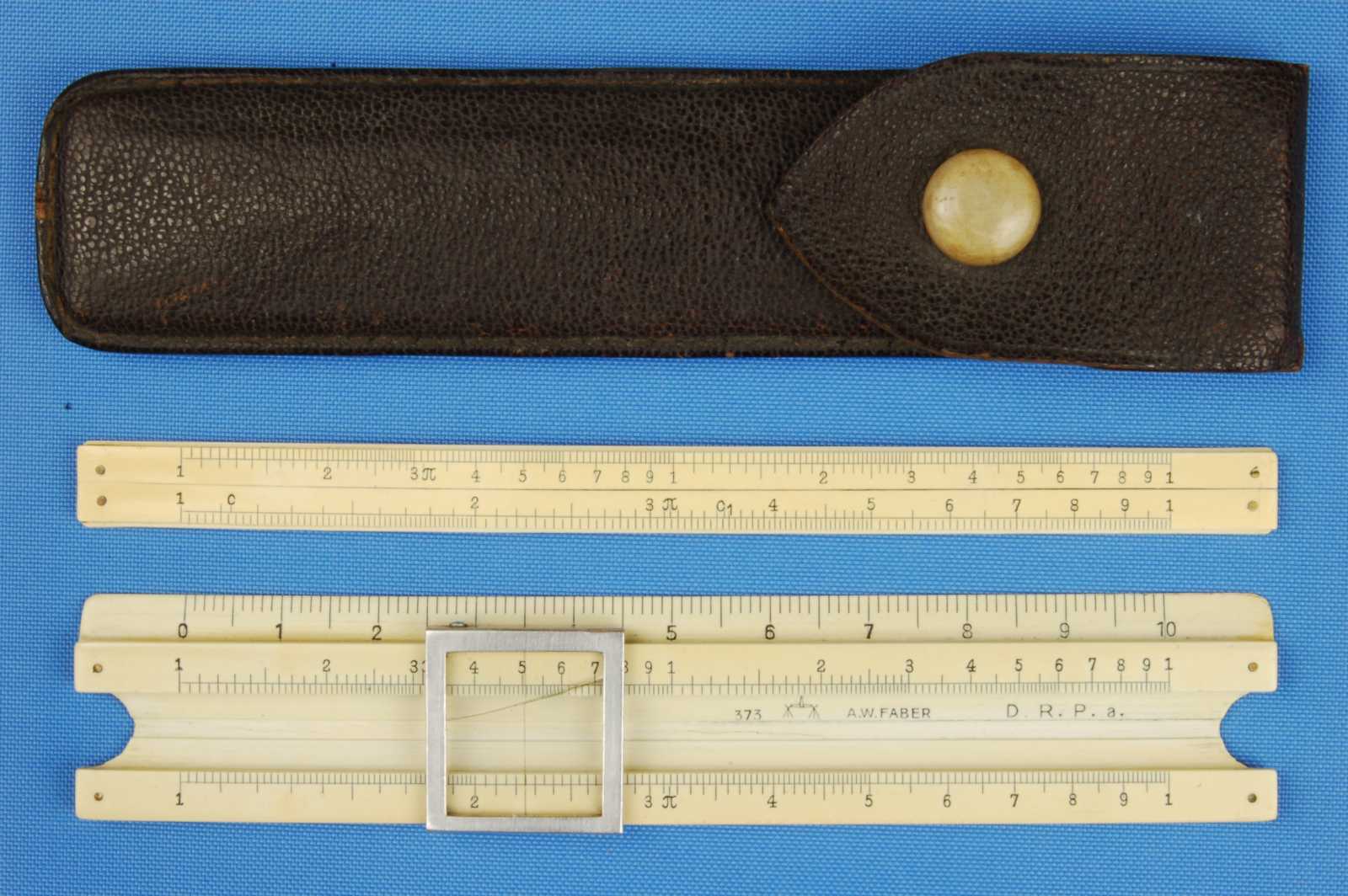

Box (colours as shown)
|
|
Style:
|
Travel case
|
L x W x D mm:
|
127 x 30 x 7
|
|
Material:
|
Leather
|
Colour:
|
Brown
|
|
Construction:
|
2 piece stitched.
Fold over flap secured with press-stud.
|
|
Printing:
|
None
|
|
Labels:
|
None.
|
|
Detail Images
|
|
