A W Faber & A W Faber "Castell" 360, 1/60/360
Version Comparison
Ten versions of the model fully detailed below. All but one are from the original 3-digit numbering, of which four are from the first half of the model span when considerable changes were made. The last version is from the interim model numbering, and only a few months after the previous version from the end of the previous numbering system, but demonstrates that significant changes to the model were made around this time. Differences summarised as follows:
Click on a column heading to jump down to version images and detailed description.
|
|
c1896-9 |
c1900 |
c1906-7 |
c1913 |
c1914-20 |
1922 |
1927 |
1929 |
19351 |
19352 |
|
Branding:
|
AW Faber
|
AW Faber "Castell"
|
|
Model:
|
360
|
1/60/360
|
|
Material:
|
Boxwood
|
Pearwood
|
|
Front Length:
|
260mm
|
280mm |
300mm |
|
Front Width:
|
27.5mm
|
32mm
|
|
Front Scales:
|
A [ B, C ] D
|
A [ B, CI, C ] D
|
|
Scale Style:
|
Double railway
|
Railway track
|
Double railway
|
Railway track
|
|
Scale Extensions:
|
-
|
Red
|
|
Decimals:
|
Tenths, units, 0.5's & 5's
|
Units
|
Tenths
|
|
p Gauge Mark:
|
A & B
|
A, B, C & D
|
A, B, CI, C & D
|
|
M Gauge Mark:
|
-
|
A & B
|
|
C & C1 Gauge Marks:
|
C
|
C & D |
C
|
|
r" & r' Gauge Marks:
|
-
|
C & D
|
|
Back Slide Scale Labels:
|
Right
|
Left & Right
|
|
Typeface:
|
Serif
|
Sans-serif
|
|
Well Ruler:
|
Yes
|
No
|
Yes
|
|
Stock Form:
|
Single piece
|
2-part
|
|
Stock Flex:
|
-
|
Longitudinal slits
|
Celluloid sprung |
Steel sprung |
|
Bracing:
|
-
|
Longitudinal, metal
|
|
Rear Cut-outs:
|
Right
|
Left & right
|
|
Celluliod Facing:
|
Front, back of slide, well
|
Front, back of slide, well, top & bottom edges
|
Front, back of slide, well
|
Front, back of slide, well, top & bottom edges
|
|
Celluliod Fixing:
|
-
|
Wooden pins
|
|
Cursor Grooves:
|
Low, top edge angled
|
High
|
|
Back Profile:
|
Rebate, paper tables
|
Flat, plain |
Rebate, paper tables
|
|
Width x Height:
|
33 x 9mm
|
33 x 10mm
|
34 x 11mm
|
39 x 11mm
|
|
Slide Width:
|
11.5mm
|
12mm
|
14mm
|
|
Cursor Form:
|
Nickel plated brass, adjustment screws |
Aluminium
|
Aluminium Wide |
|
Cursor Profile:
|
Angled top edge
|
Straight top edge
|
|
Cursor Spring:
|
Centre sprung
|
Left end sprung |
Centre sprung
|
Left end sprung |
|
Cursor Window:
|
Round cornders
|
Square corners
|
|
Brand & Model:
|
Gold brand on front
|
Black brand on front |
Black brand & model on front |
Black brand & model in well |
|
"*" or "Scales":
|
-
|
* |
Scales |
|
DRGM Labelling:
|
-
|
Full, front centre |
-
|
Abbreviated, well right below split |
|
DRP Labelling:
|
-
|
Full, front centre
|
Full, front left
|
Full, well
|
-
|
|
Tracking Nmemonics:
|
-
|
Short text |
- |
|
Origin Labelling:
|
- |
Gold, front centre |
Black, front center |
Black, front right |
- |
Black, front right |
Black, back centre |
Stamped, back centre |
Click on the images for enlargements.

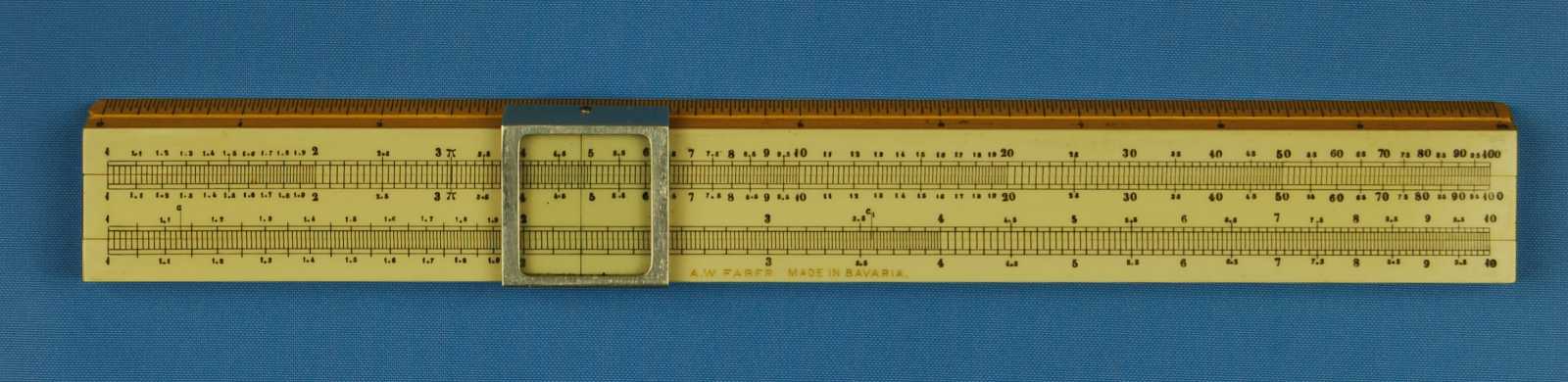

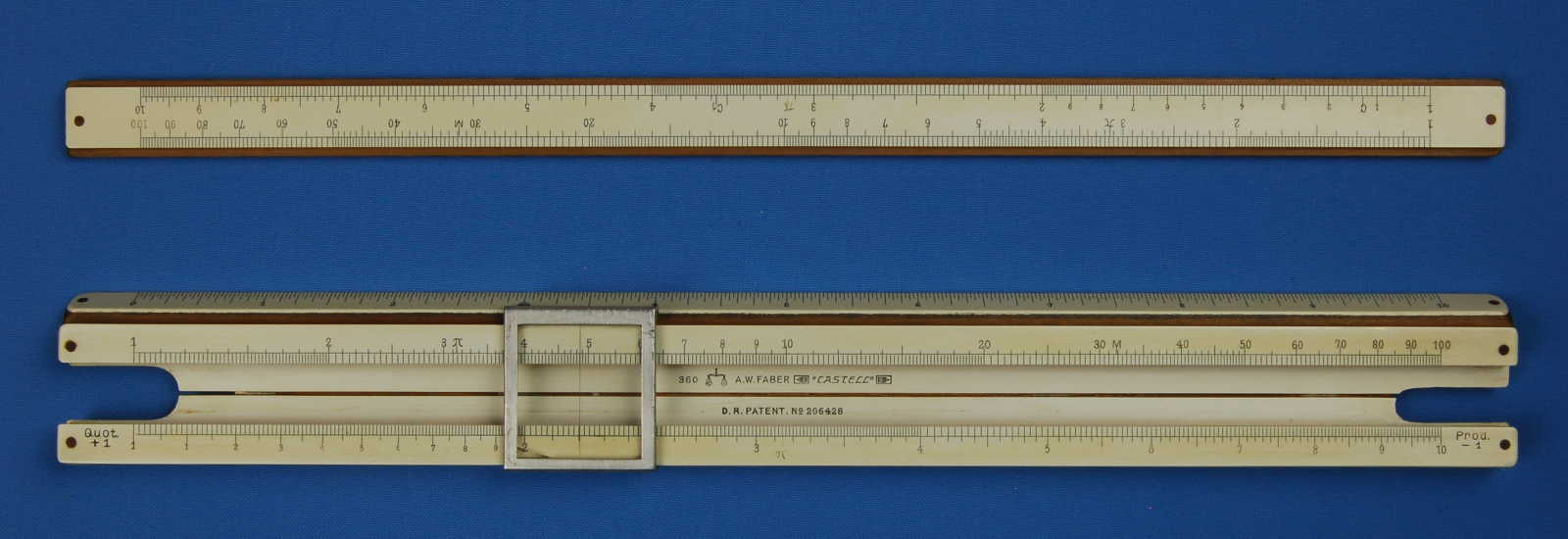

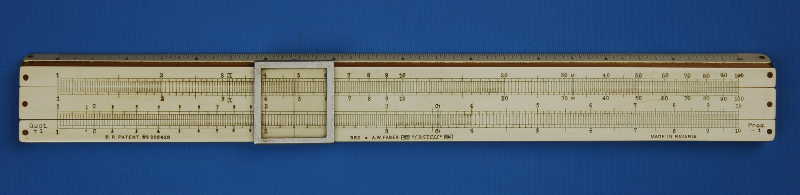

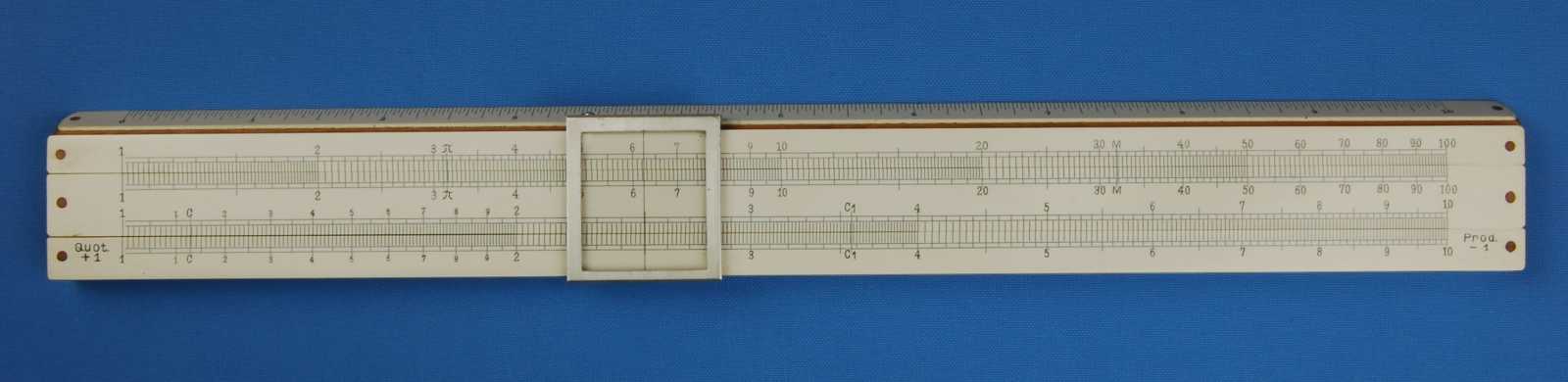

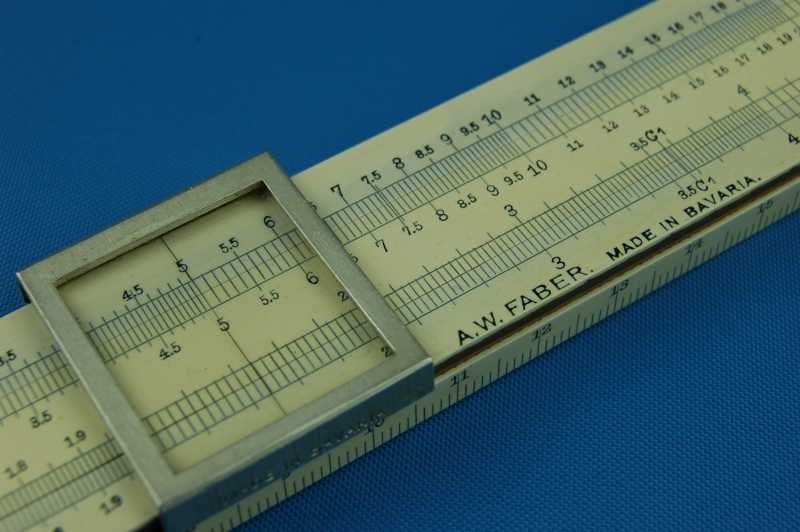

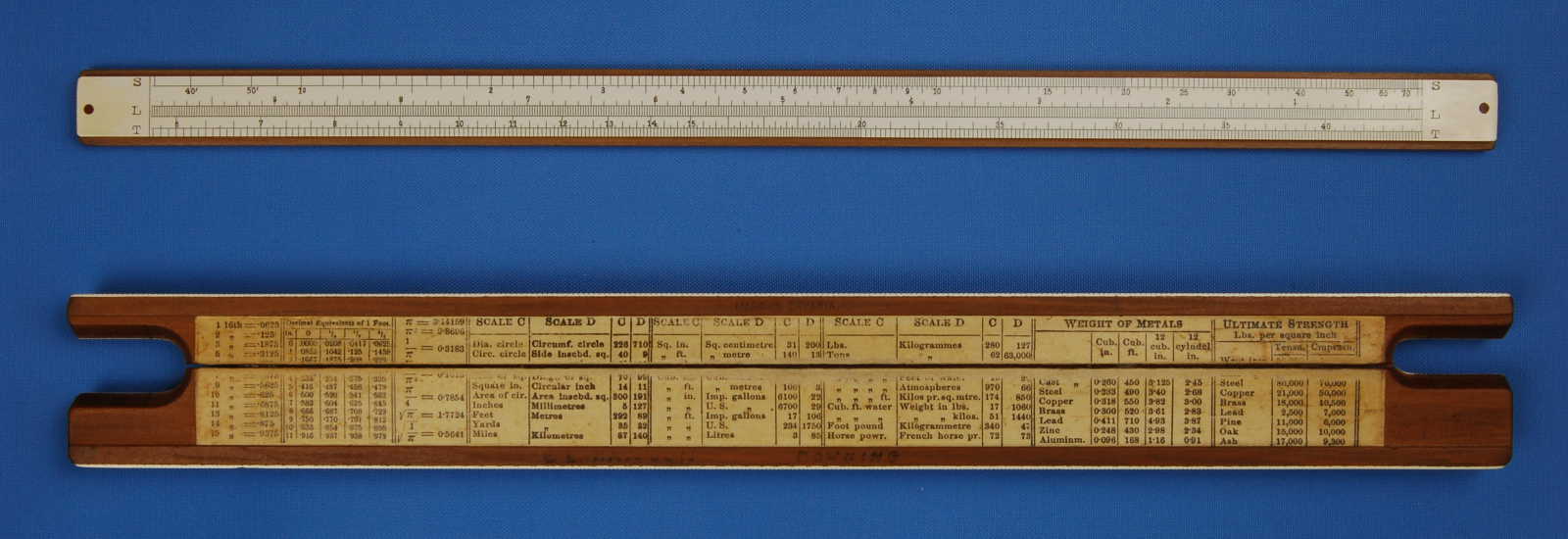

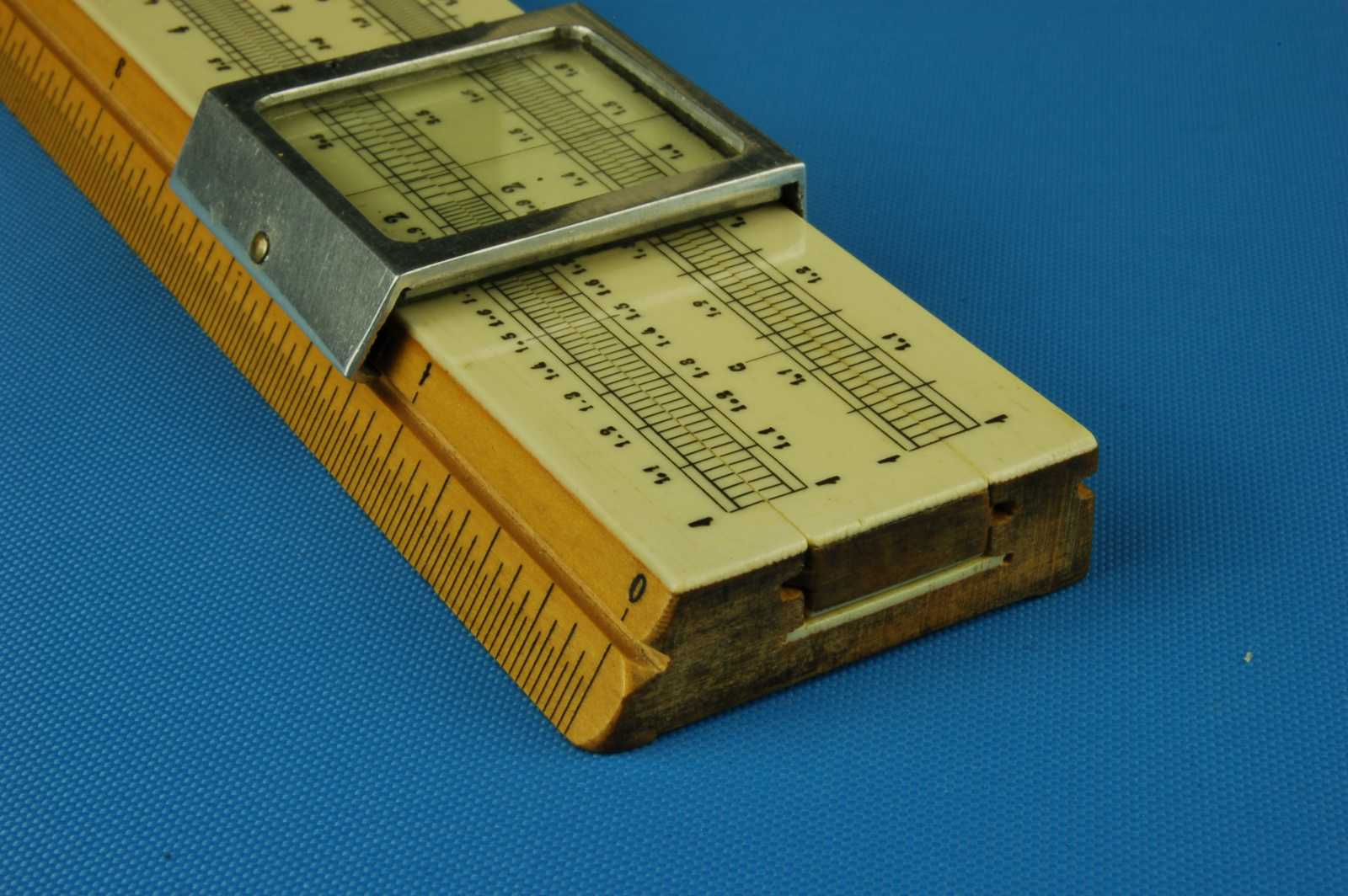

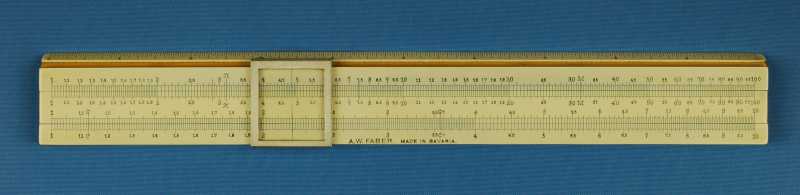

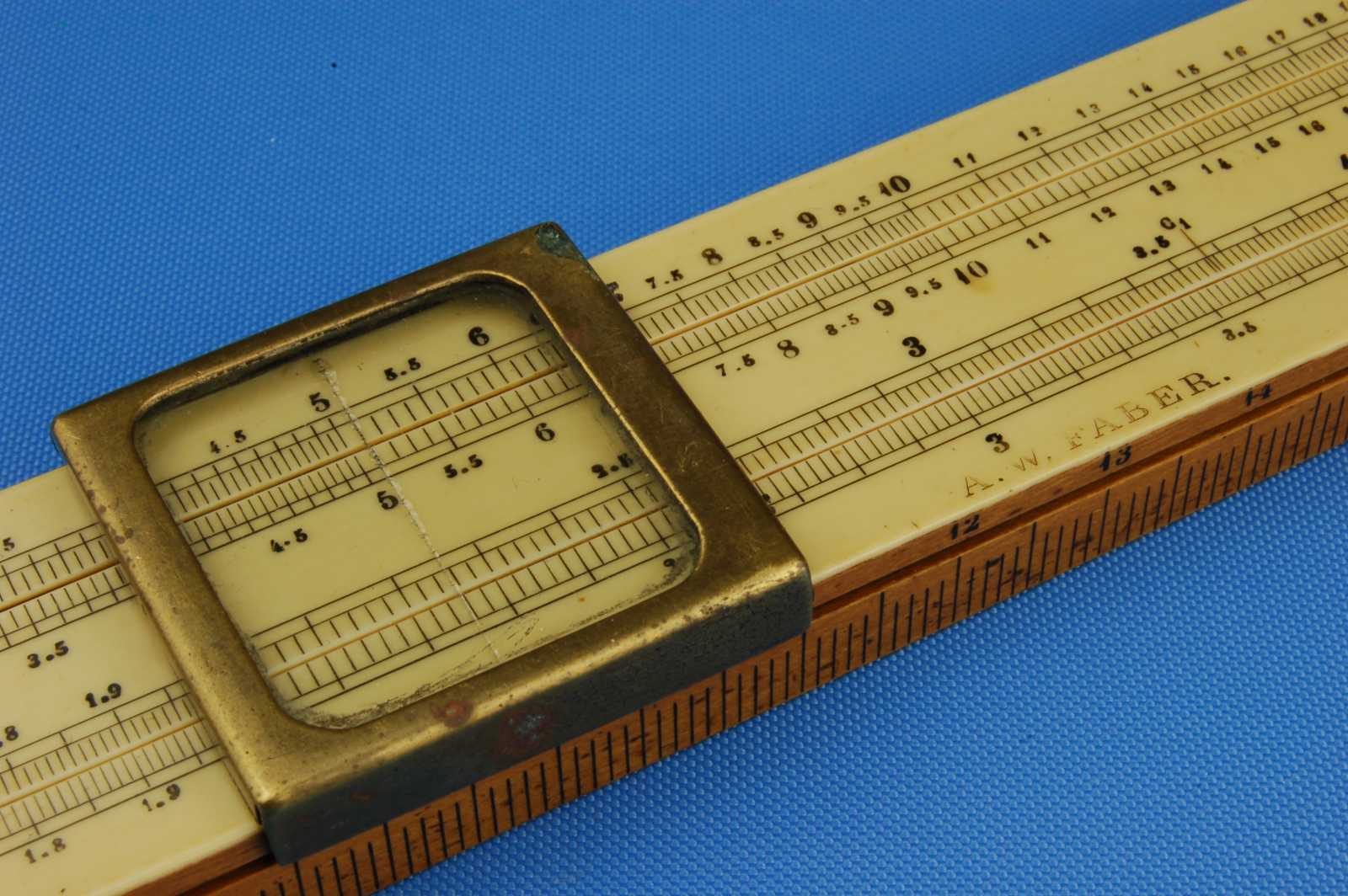

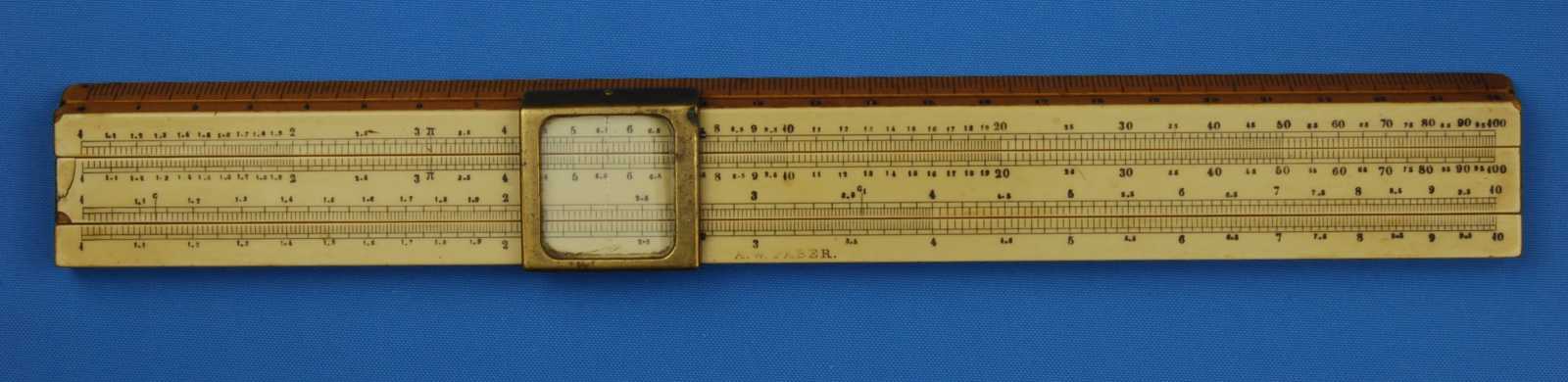

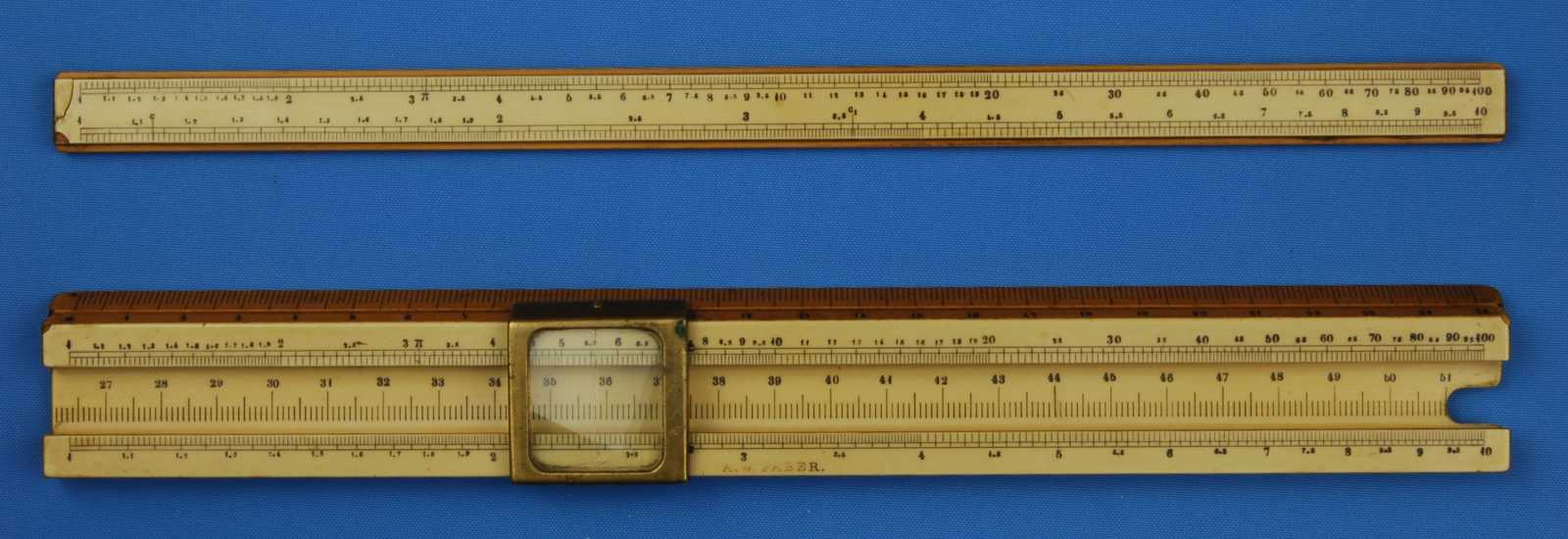

A W Faber 360 (c1896-9) |
_2x_b.jpg)
|
_2_a.jpg)
|
Summary
|
|
System:
|
Enhanced Mannheim
|
|
Specialization:
|
-
|
|
Type:
|
Closed frame
|
|
Material:
|
Boxwood
|
|
Facings:
|
Celluliod
|
|
Scale Length:
|
25cm
|
No of Scales:
|
7
|
|
Front Length:
|
260mm
|
Front Width:
|
27.5mm
|
|
Language:
|
German
|
Origin:
|
-
|
|
Date:
|
c1896-9
|
|
Features/Notes:
|
Unlabelled model.
|
|
Scales (colours as shown)
|
|
Front:
|
A [ B, C ] D
|
Back:
|
[ S, L, T ]
|
|
Labels Left:
|
-
|
Labels Left:
|
-
|
|
Labels Right:
|
-
|
Labels Right:
|
All, as scales
|
|
Style:
|
Railway track (double)
|
Typeface:
|
Serif
|
|
Extensions:
|
-
|
Decimals:
|
Tenths between 1 & 2 on A, B, C & D
Units between 10 and 20 on A & B
0.5's between 2 & 10 on A, B, C & D
5's between 20 and 100 on A & B
|
|
Gauge Marks:
|
p (3.14) on A & B
C (1.13) on C
C1 (3.57) on C
|
Rulers:
|
cm on top edge
cm on bottom edge
cm continuation in well for longer measurements
|
|
Features/Notes:
|
Ruler labels are above the cursor groove and tick marks below it on top and bottom edges.
|
|
Construction
|
|
Stock:
|
Single piece solid stock.
Right viewing cutout with index marks, in back for reverse of slide.
Bevelled top edge, square bottom edge.
Low cursor grooves, top edge cut angled, bottom edge cut parallel to front face.
Shallow rebate in back .
Front and well only celluloid faced.
Length x Width x Height (mm) - 260 x 33 x 9
|
|
Slide:
|
Double sided
Celluliod faced on both sides
Front face width (mm) - 11.5
|
Cursor:
|

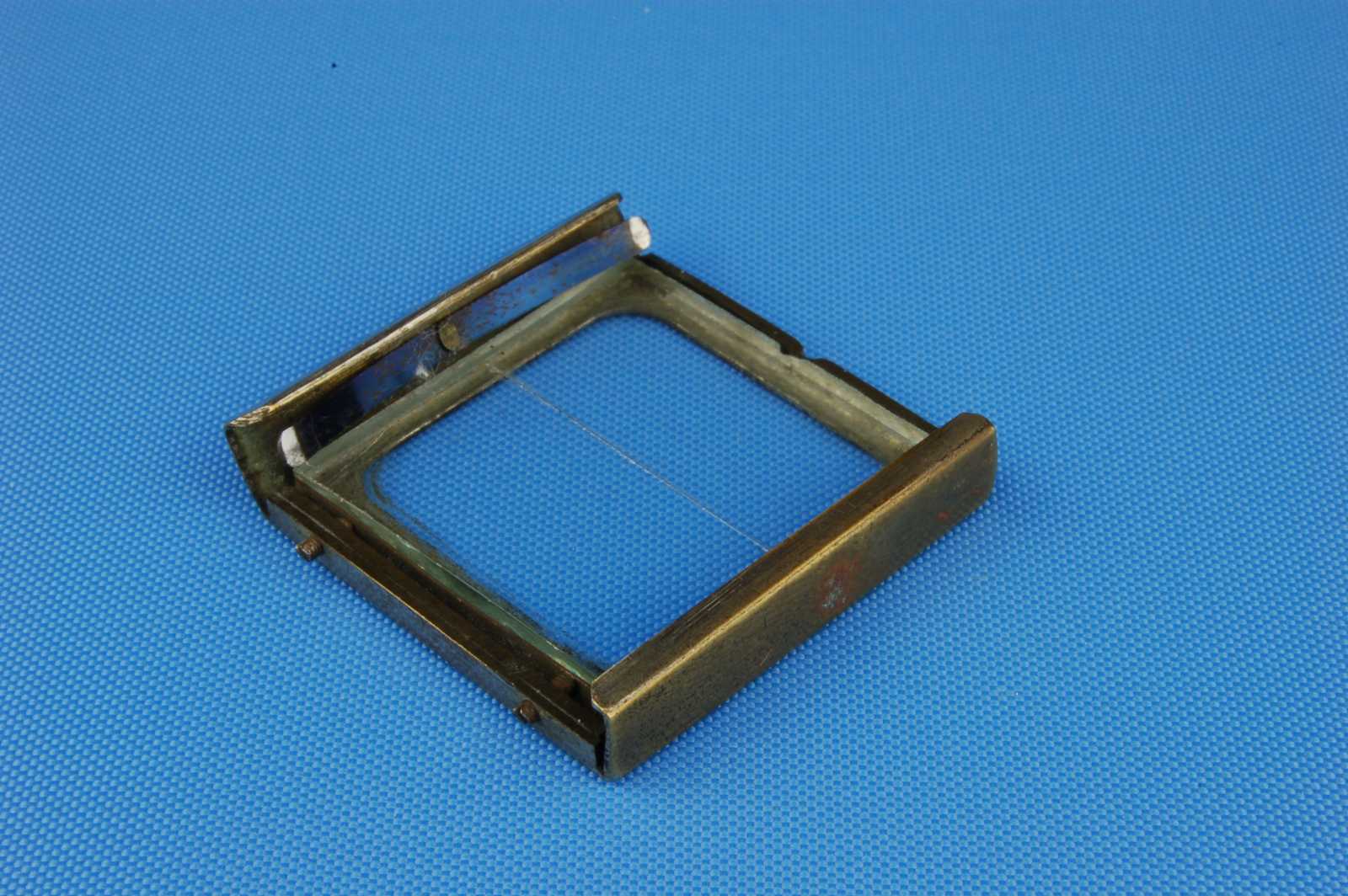

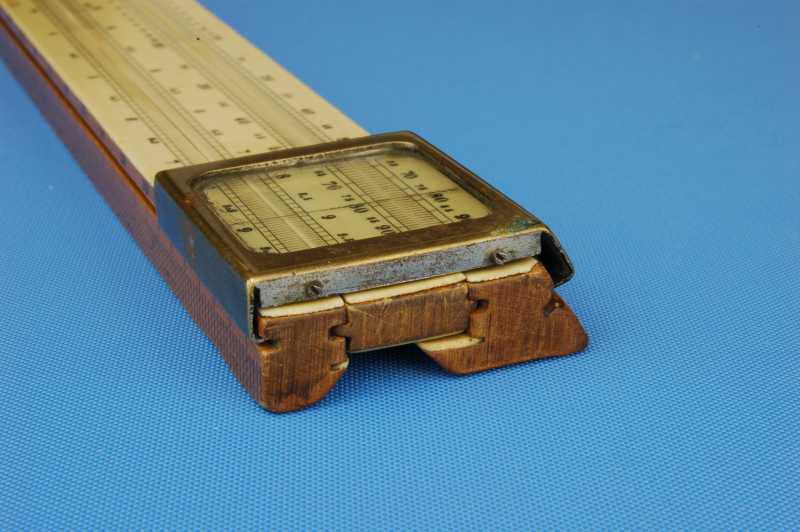

Nickel plated brass frame, glass pane.
Angled top runner to fit bevel and cursor groove.
Rounded window.
Two small screws on the right hand side of the frame and a bump in the middle of the left side for pane, hence hairline, alignment.
Centre riveted steel spring on top runner.
Single central full length hairline.
Width x Height (mm) - 31 x 32 (including sloped top runner)
|
|
Printing (colours as shown)
|
|
Stock:
|
"A.W.FABER." in centre of front bottom rail, serif.
|
|
Slide:
|
-
|
|
Cursor:
|
-
|
|
Labels:
|

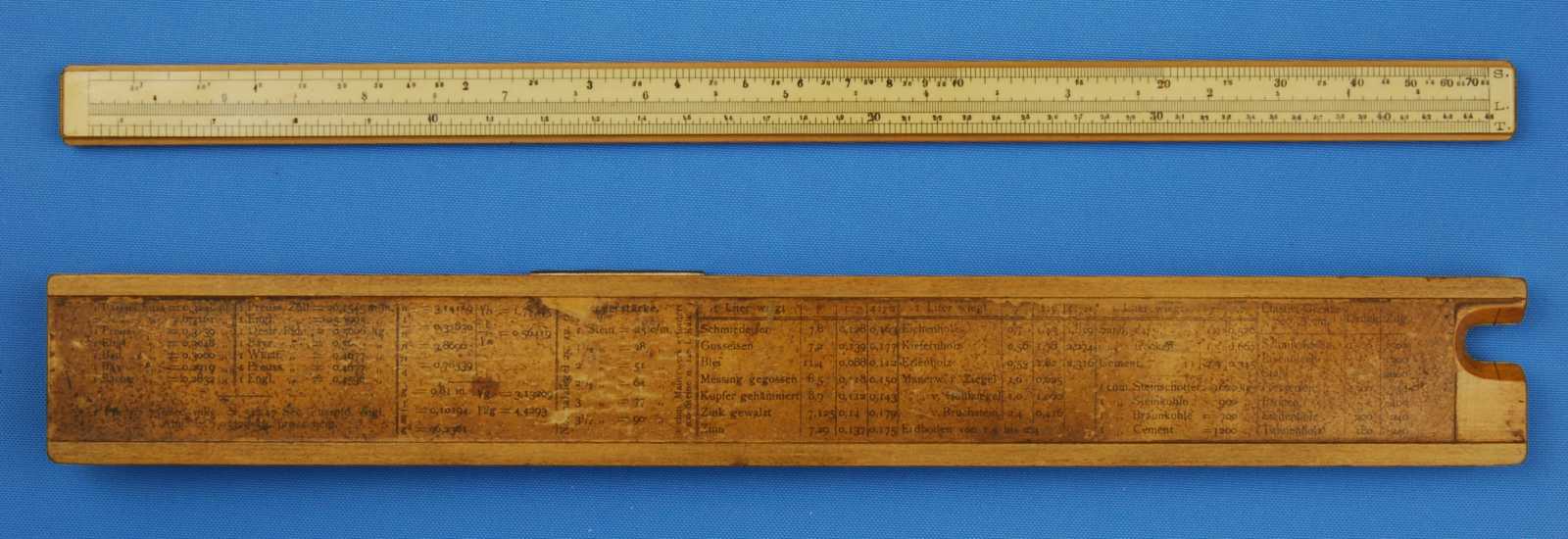

On back, paper table featuring conversions and mathematical and physical constants.
|
|
Instructions
|
|
None
|
|
Box (colours as shown)
|
|
Style:
|
Not present
|
L x W x D mm:
|
-
|
|
Material:
|
-
|
Colour:
|
-
|
|
Construction:
|
-
|
|
Printing:
|
-
|
|
Labels:
|
-
|
|

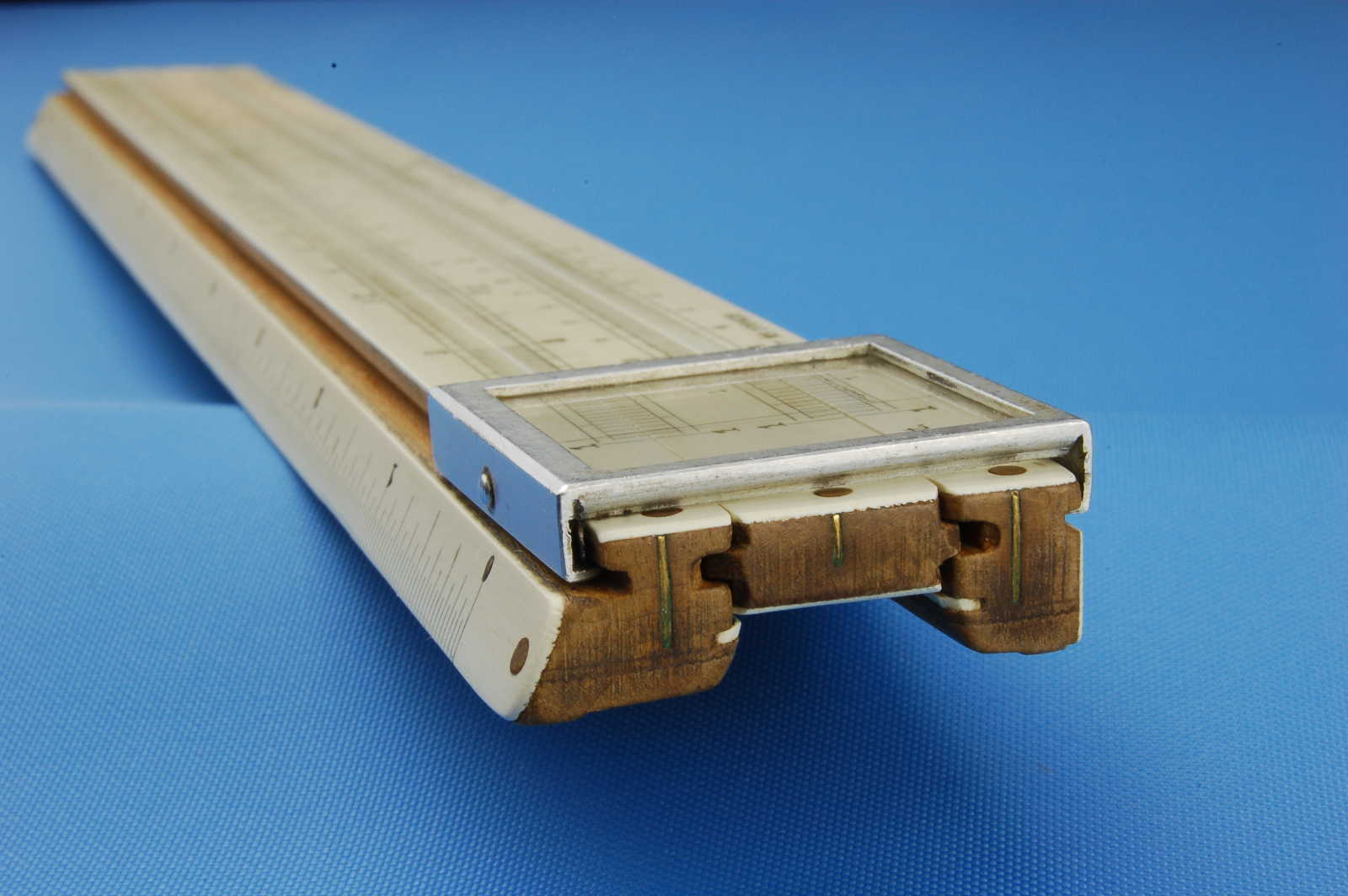

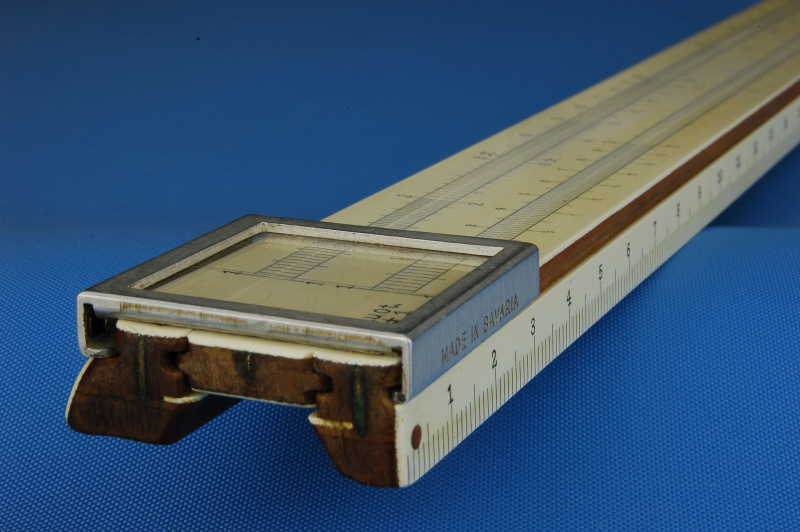

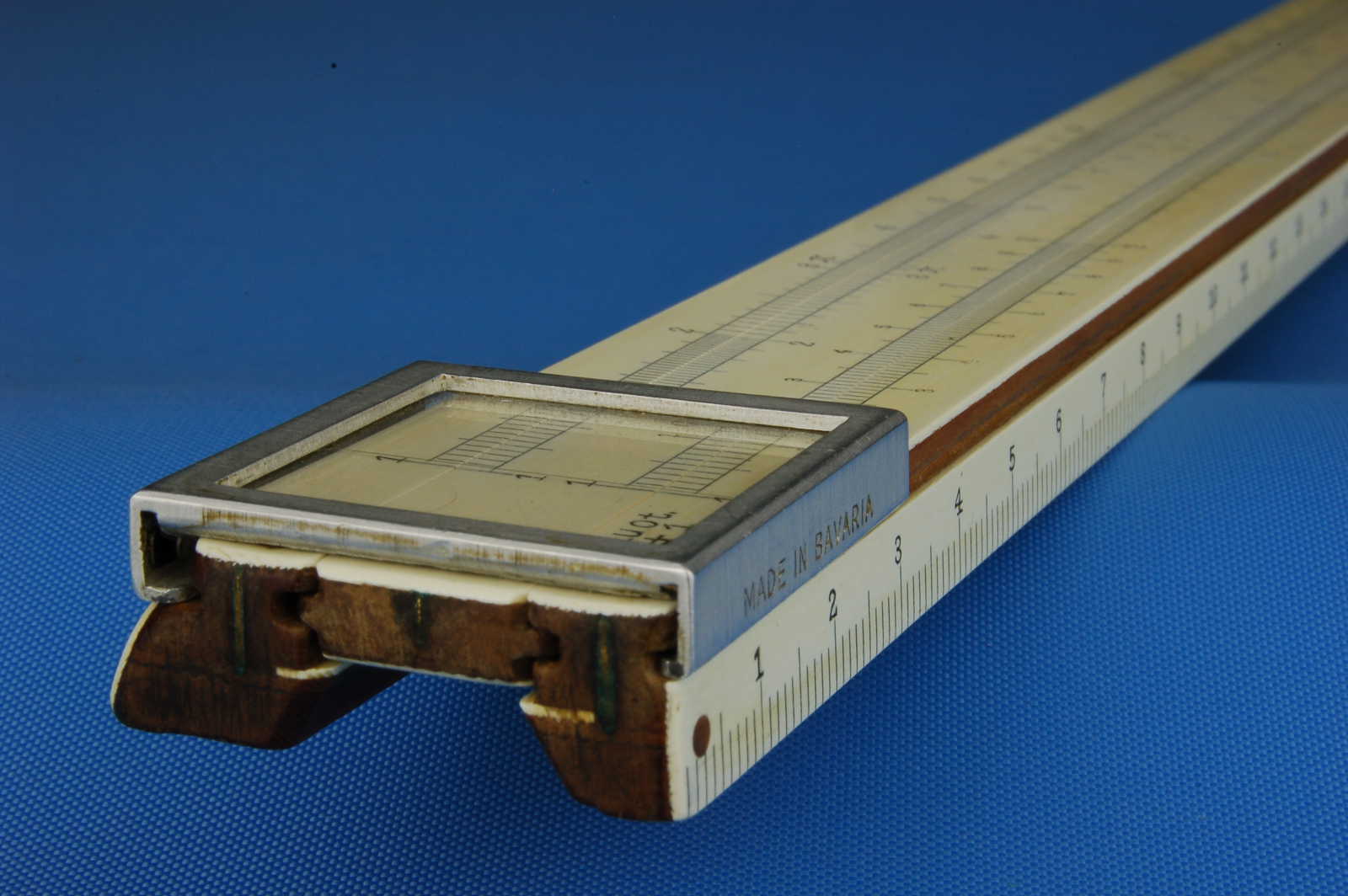

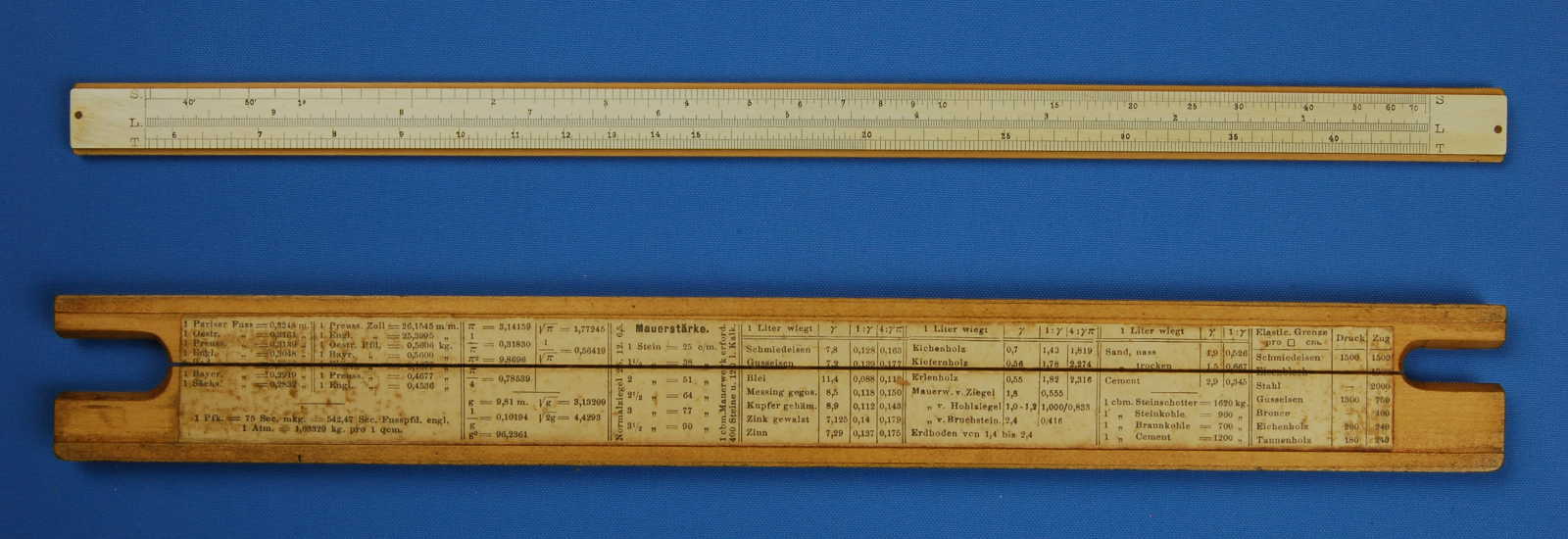

Detail Images
|
|
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
|
Click on the images for enlargements.

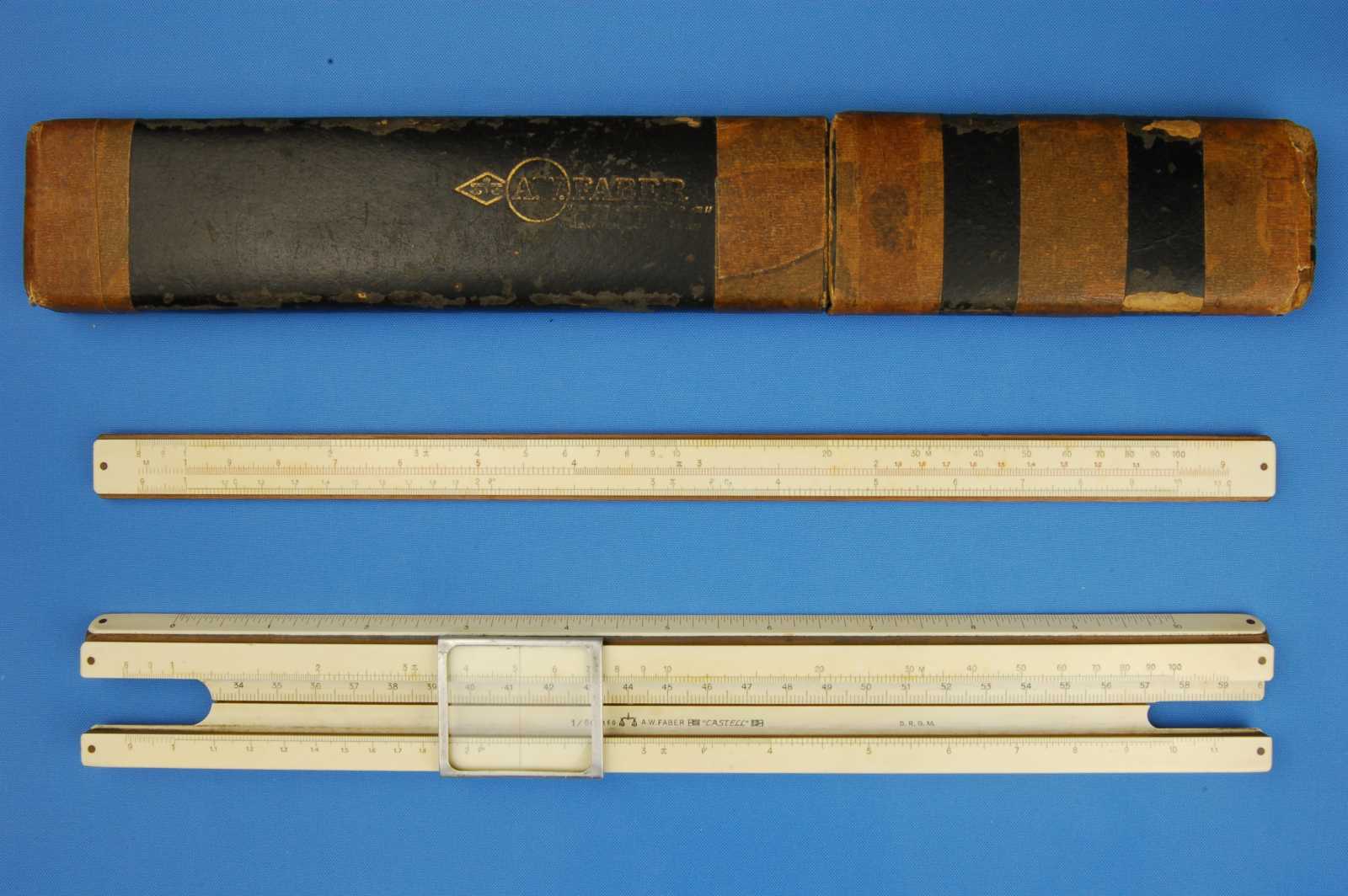

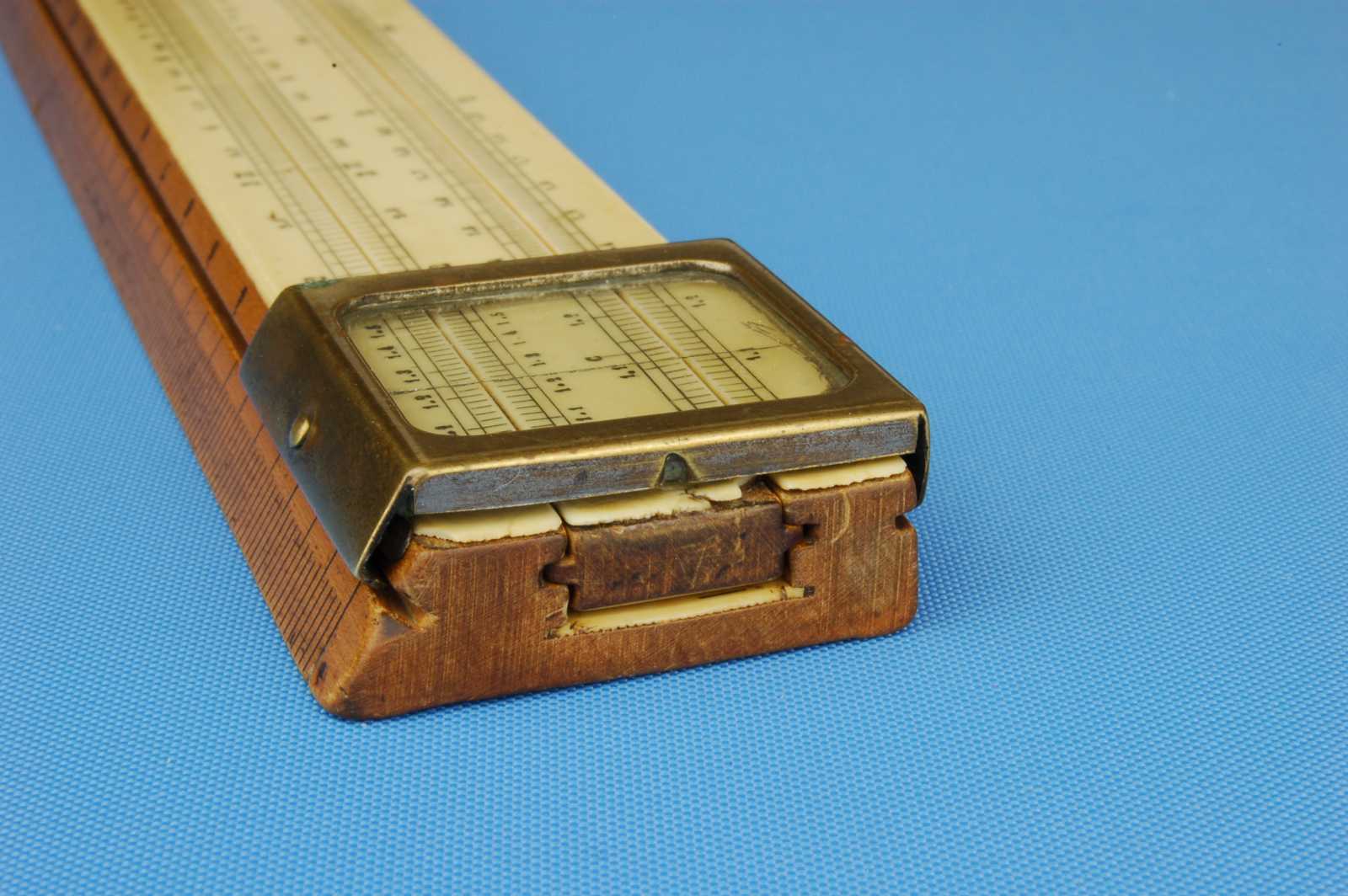

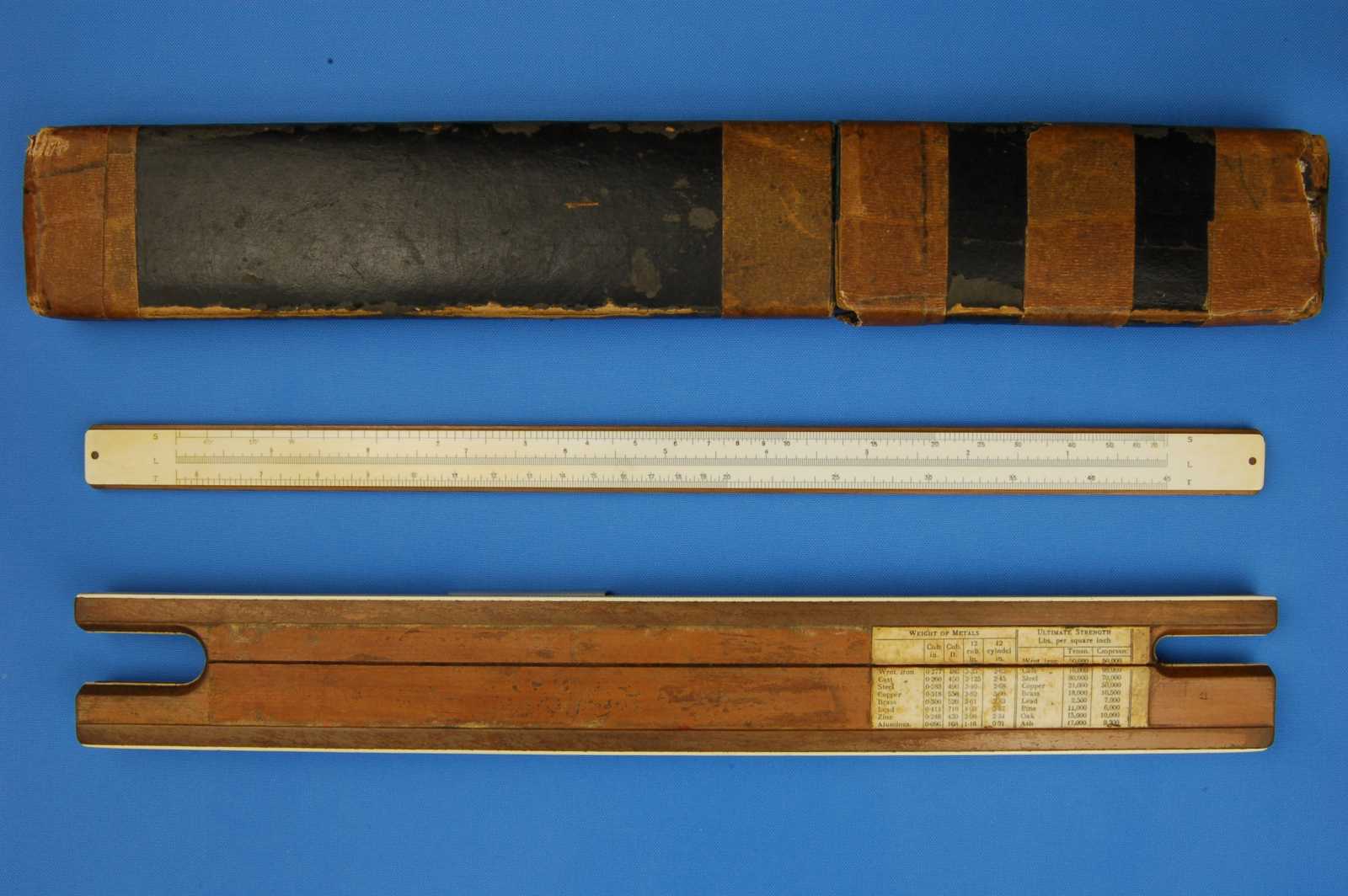

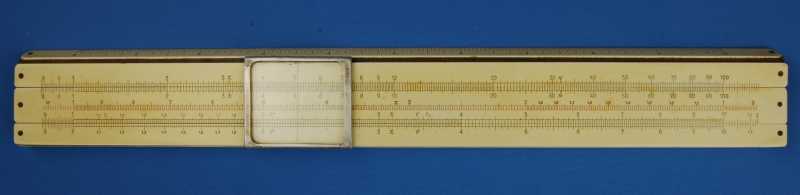

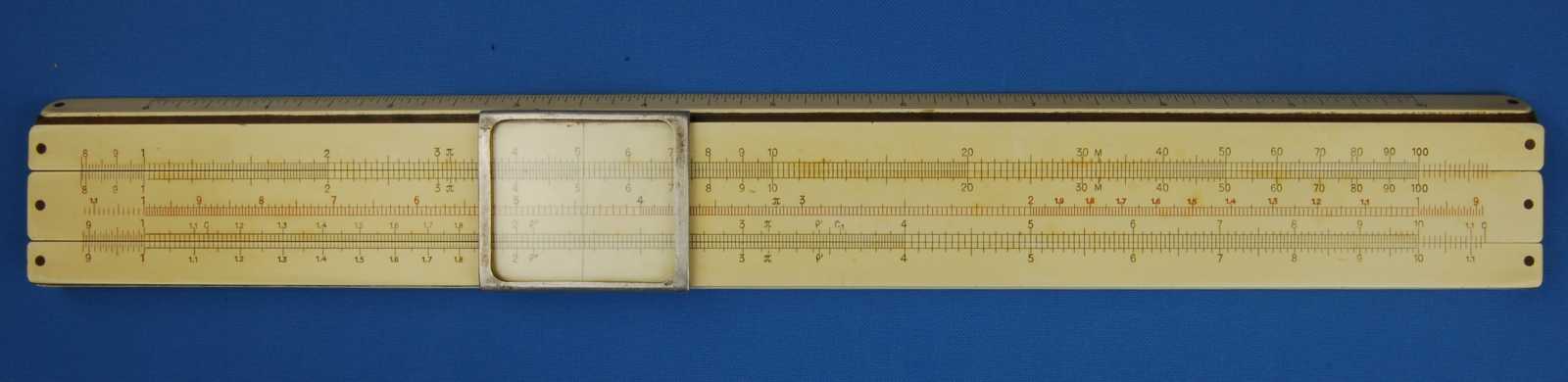

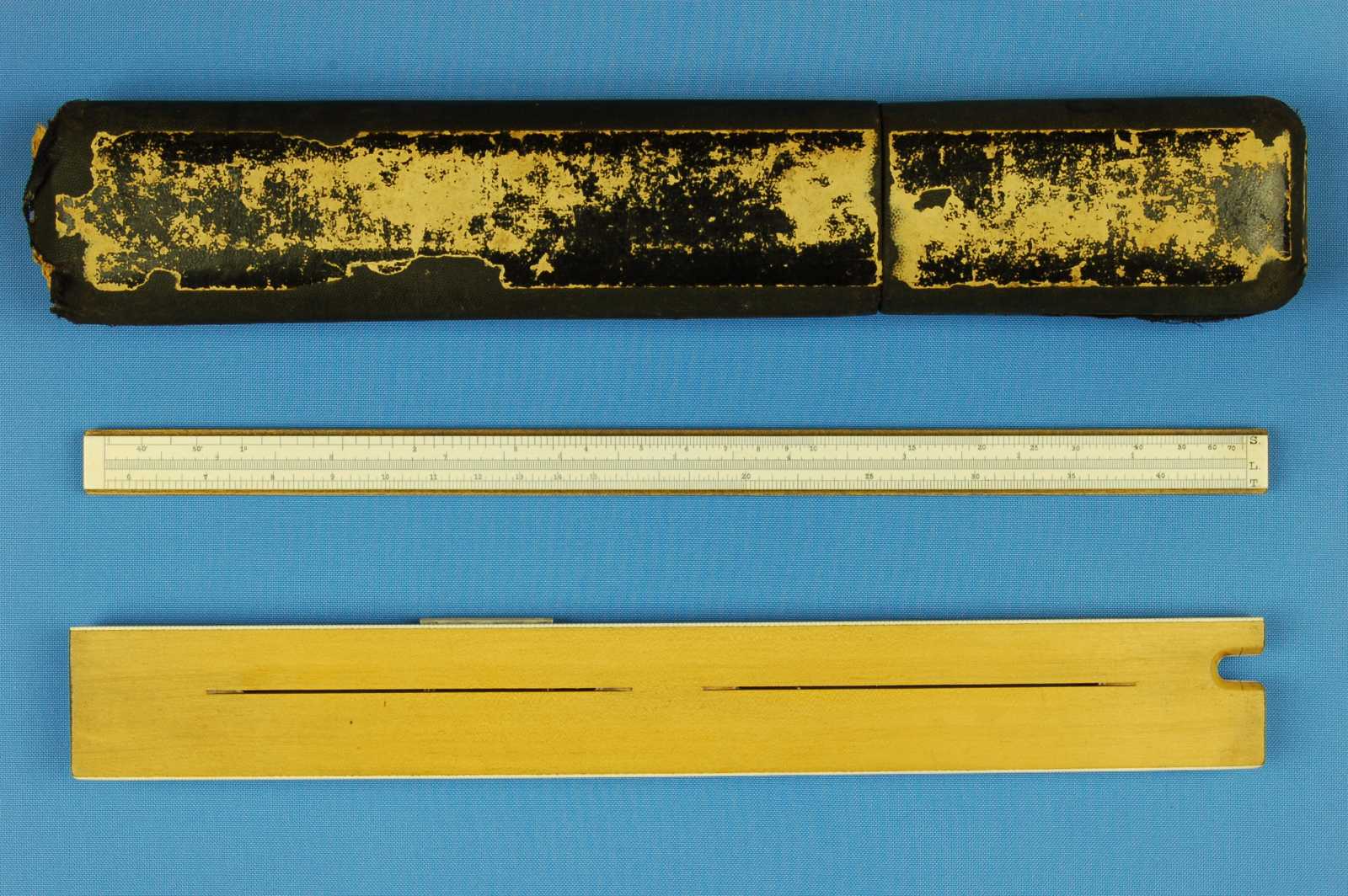

A W Faber 360 (c1900) |
x_b.jpg)
|
_a.jpg)
|
Summary
|
|
System:
|
Enhanced Mannheim
|
|
Specialization:
|
-
|
|
Type:
|
Closed frame
|
|
Material:
|
Boxwood
|
|
Facings:
|
Celluliod
|
|
Scale Length:
|
25cm
|
No of Scales:
|
7
|
|
Front Length:
|
260mm
|
Front Width:
|
27.5mm
|
|
Language:
|
English
|
Origin:
|
Bavaria
|
|
Date:
|
c1900
|
|
Features/Notes:
|
Unlabelled model.
|
|
Scales (colours as shown)
|
|
Front:
|
A [ B, C ] D
|
Back:
|
[ S, L, T ]
|
|
Labels Left:
|
-
|
Labels Left:
|
-
|
|
Labels Right:
|
-
|
Labels Right:
|
All, as scales
|
|
Style:
|
Railway track (double)
|
Typeface:
|
Serif
|
|
Extensions:
|
-
|
Decimals:
|
Tenths between 1 & 2 on A, B, C & D
Units between 10 and 20 on A & B
0.5's between 2 & 10 on A, B, C & D
5's between 20 and 100 on A & B
|
|
Gauge Marks:
|
p (3.14) on A & B
C (1.13) on C
C1 (3.57) on C
|
Rulers:
|
inch on top edge
cm on bottom edge
cm continuation in well for longer measurements
|
|
Features/Notes:
|
Ruler labels are above the cursor groove and tick marks below it on top and bottom edges.
|
|

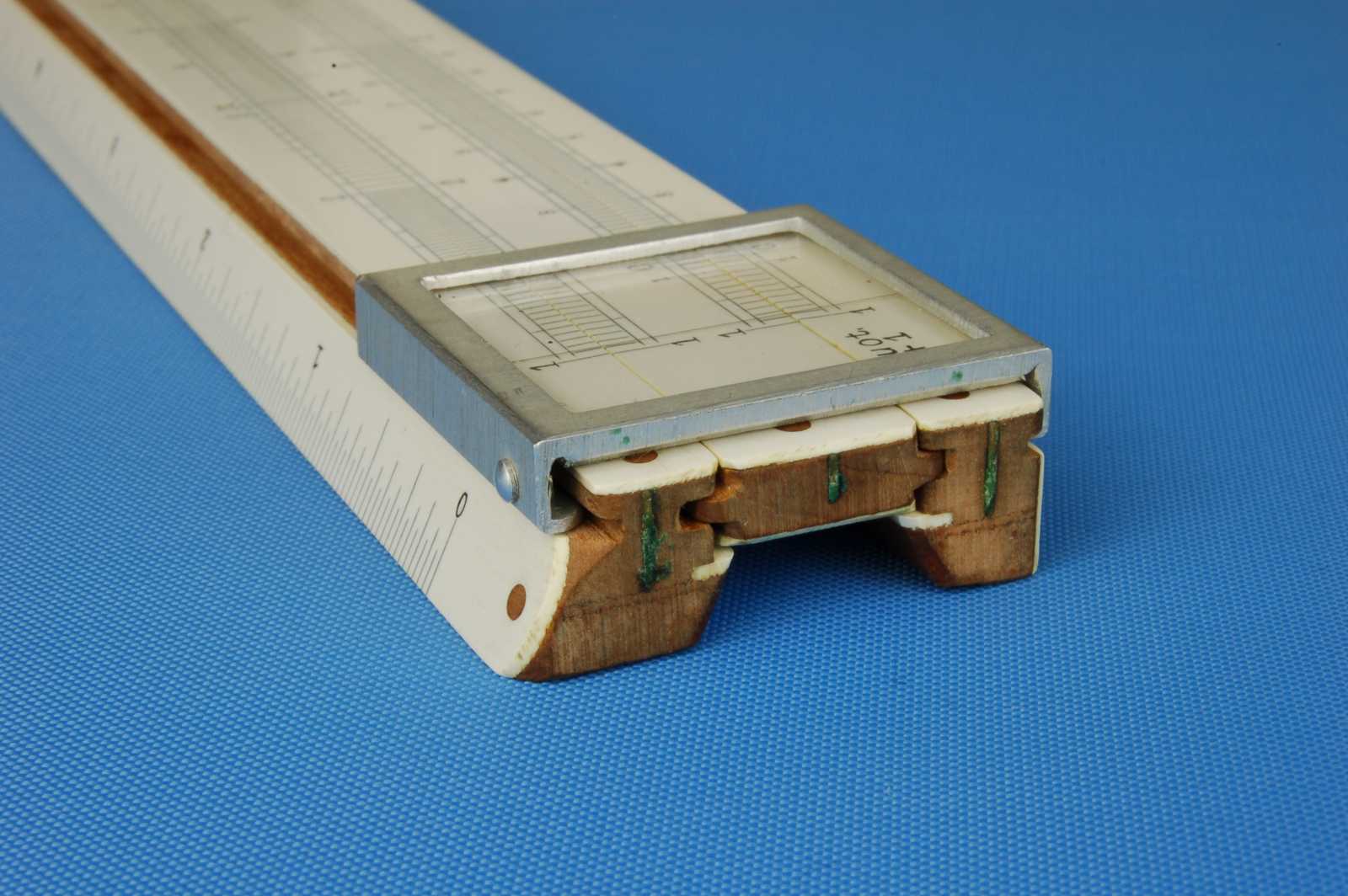

Construction
|
|
Stock:
|
Single piece solid stock with 2 longitudinal slits cut in well.
Right viewing cutout with index marks, in back for reverse of slide.
Bevelled top edge, square bottom edge.
Low cursor grooves, top edge cut angled, bottom edge cut parallel to front face.
Shallow rebate in back .
Front and well only celluloid faced.
Length x Width x Height (mm) - 260 x 33 x 9
|
|
Slide:
|
Double sided
Celluliod faced on both sides
Front face width (mm) - 11.5
|
Cursor:
|
Aluminium frame, glass pane.
Angled top runner to fit bevel and cursor groove.
Rounded window.
Centre riveted steel spring on top runner.
Single central full length hairline.
Width x Height (mm) - 30 x 32 (including sloped top runner)
|
|
Printing (colours as shown)
|
|
Stock:
|
"A.W.FABER." and "MADE IN BAVARIA." in centre of front bottom rail, sans-serif.
|
|
Slide:
|
-
|
|
Cursor:
|
-
|
|
Labels:
|
On back, paper table featuring conversions and mathematical and physical constants.
|
|
Instructions
|
|
None
|
|

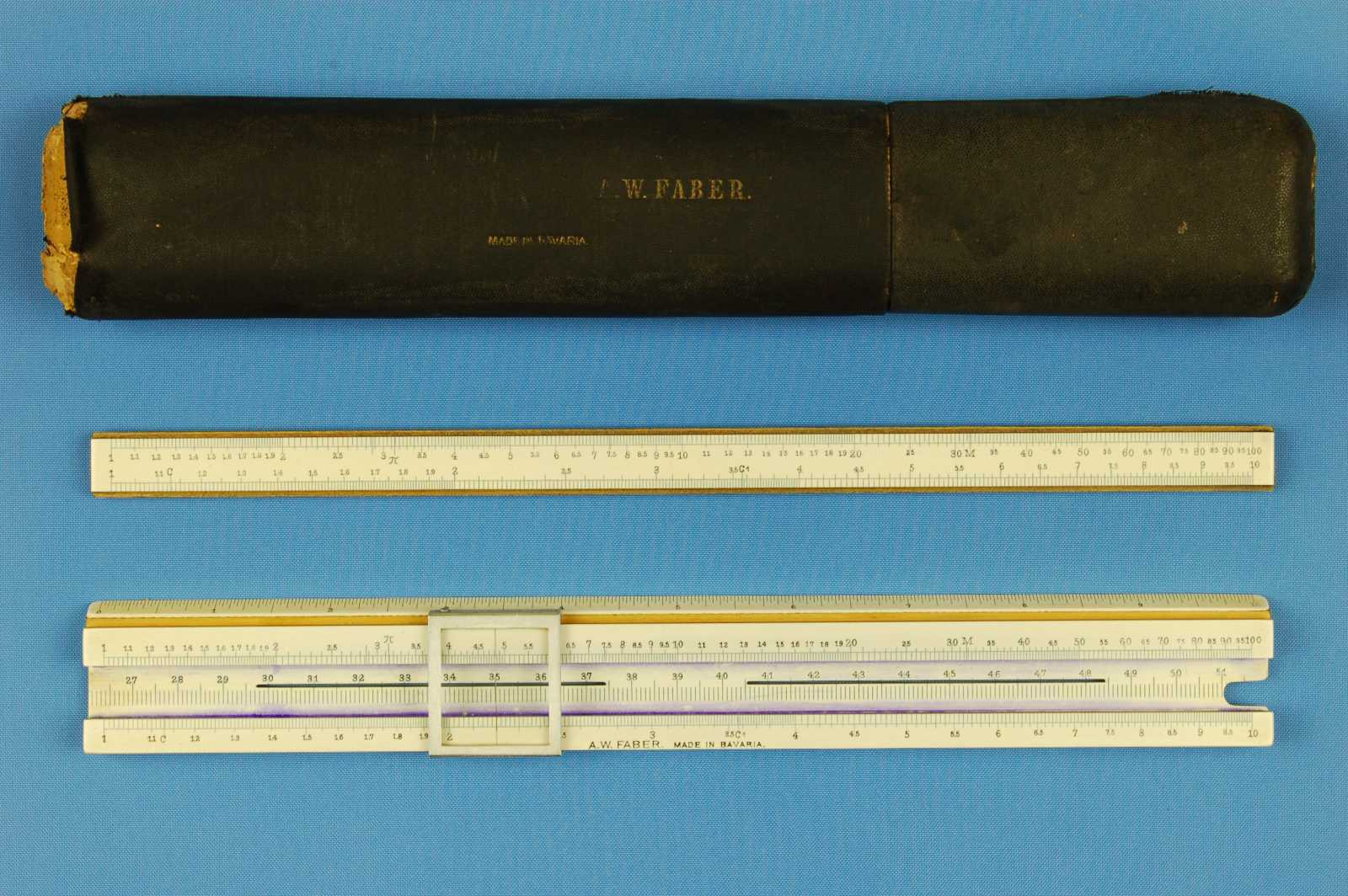

Box (colours as shown)
|
|
Style:
|
Square
|
L x W x D mm:
|
266 x 38 x 18
|
|
Material:
|
Cardboard
|
Colour:
|
Black
|
|
Construction:
|
2 part, internal sleeve join.
Cloth covered.
|
|
Printing:
|

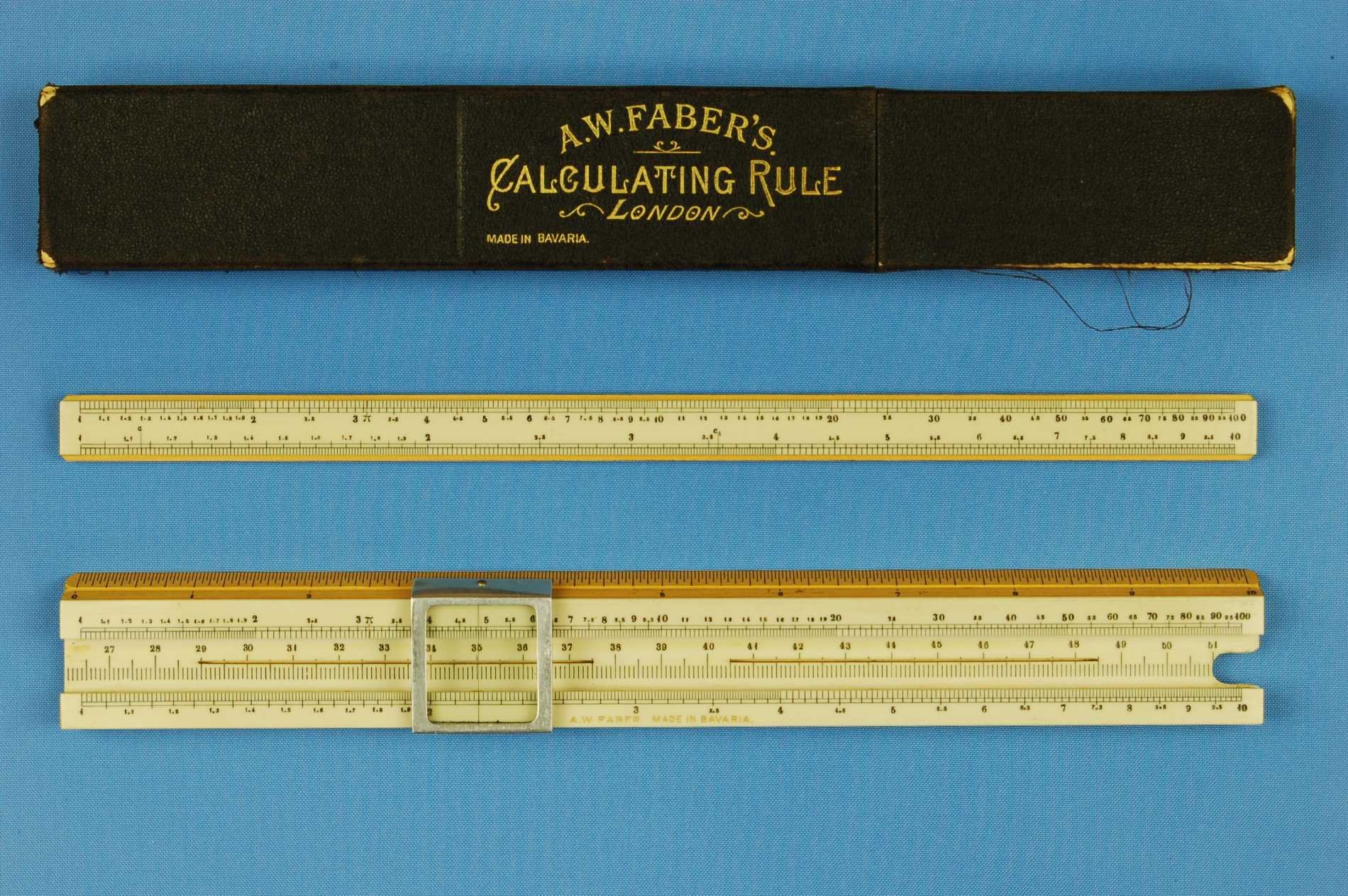

"A.W. FABER'S." in an arch above "CALCULATING RULE", then "LONDON" on the front.
"MADE IN BAVARIA." smaller underneath to the left.
|
|

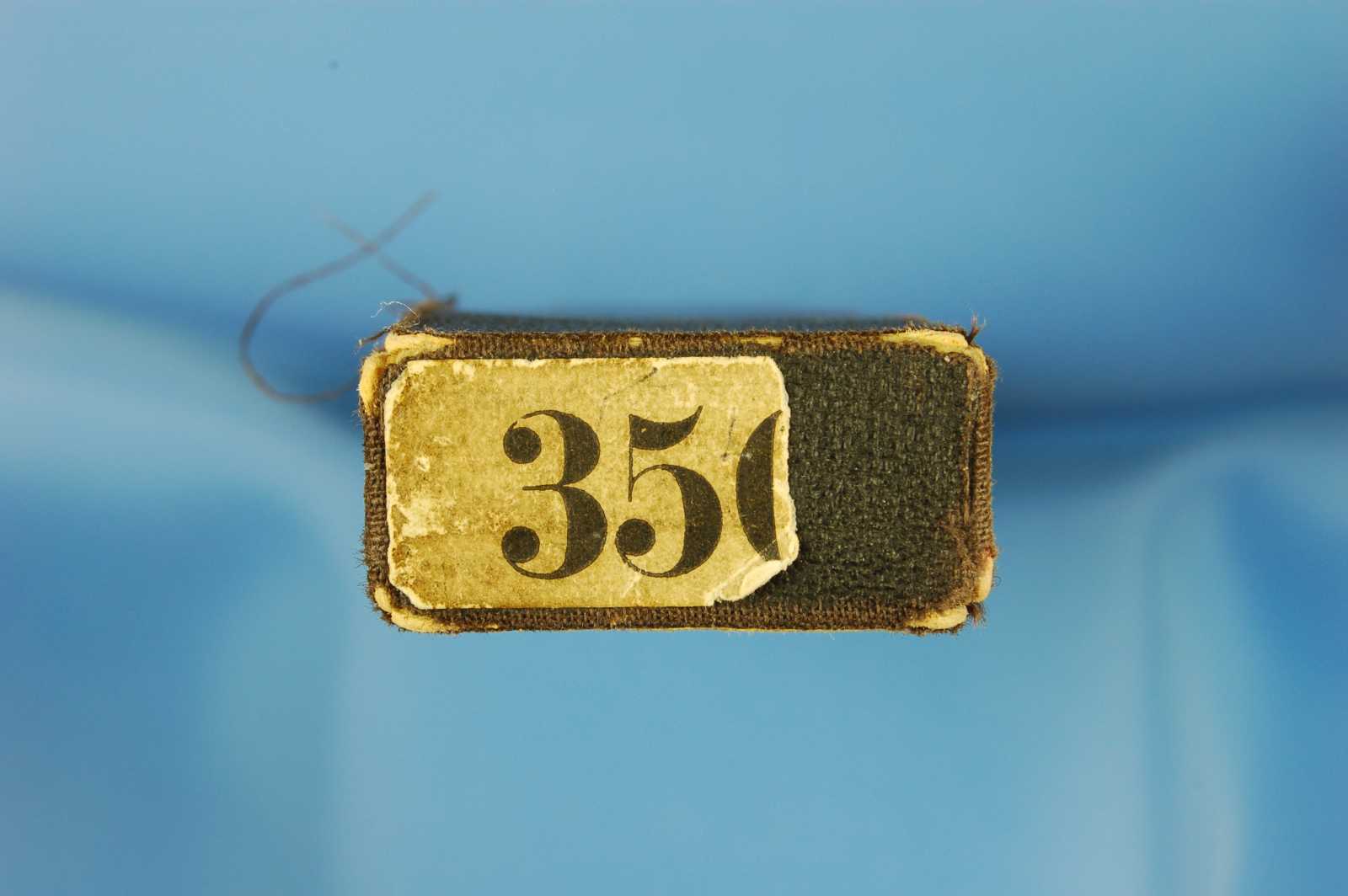

Labels:
|
"350" on white, model number sticker on right hand end, with the right half of the "0" missing. This model number is strictly incorrect for the rule but it is likely, due to the age and circumatance, that this box was originally supplied with the rule.

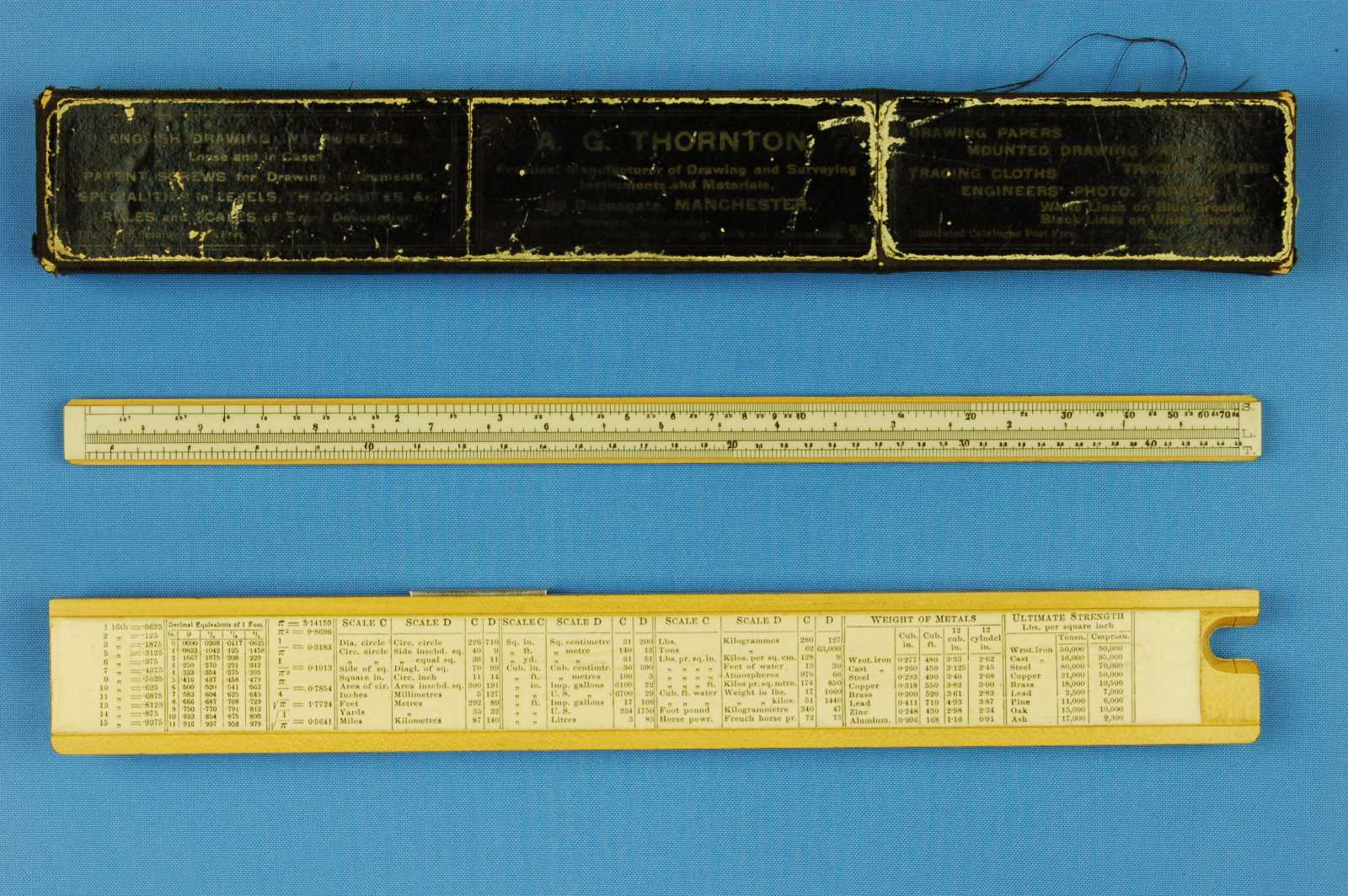

Large advertising on back. Gold on black, plain borders, mostly legible, unusually advertising A G Thornton Drawing and Surveying Instruments and Materials of Manchester.
|
|
Detail Images
|
|
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
|
Click on the images for enlargements.

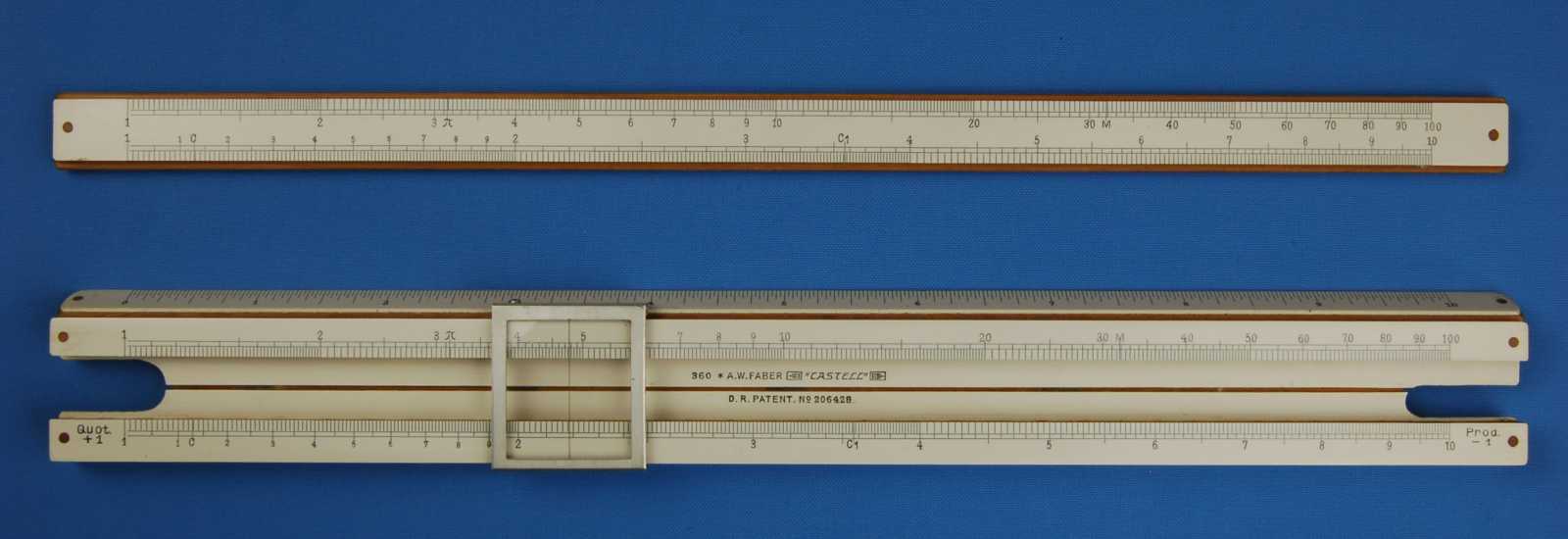

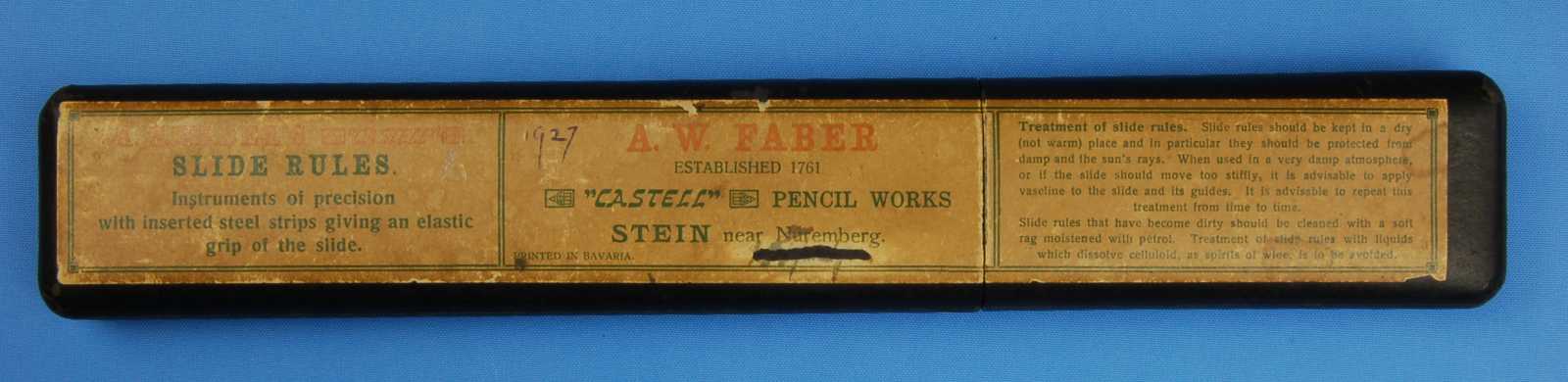

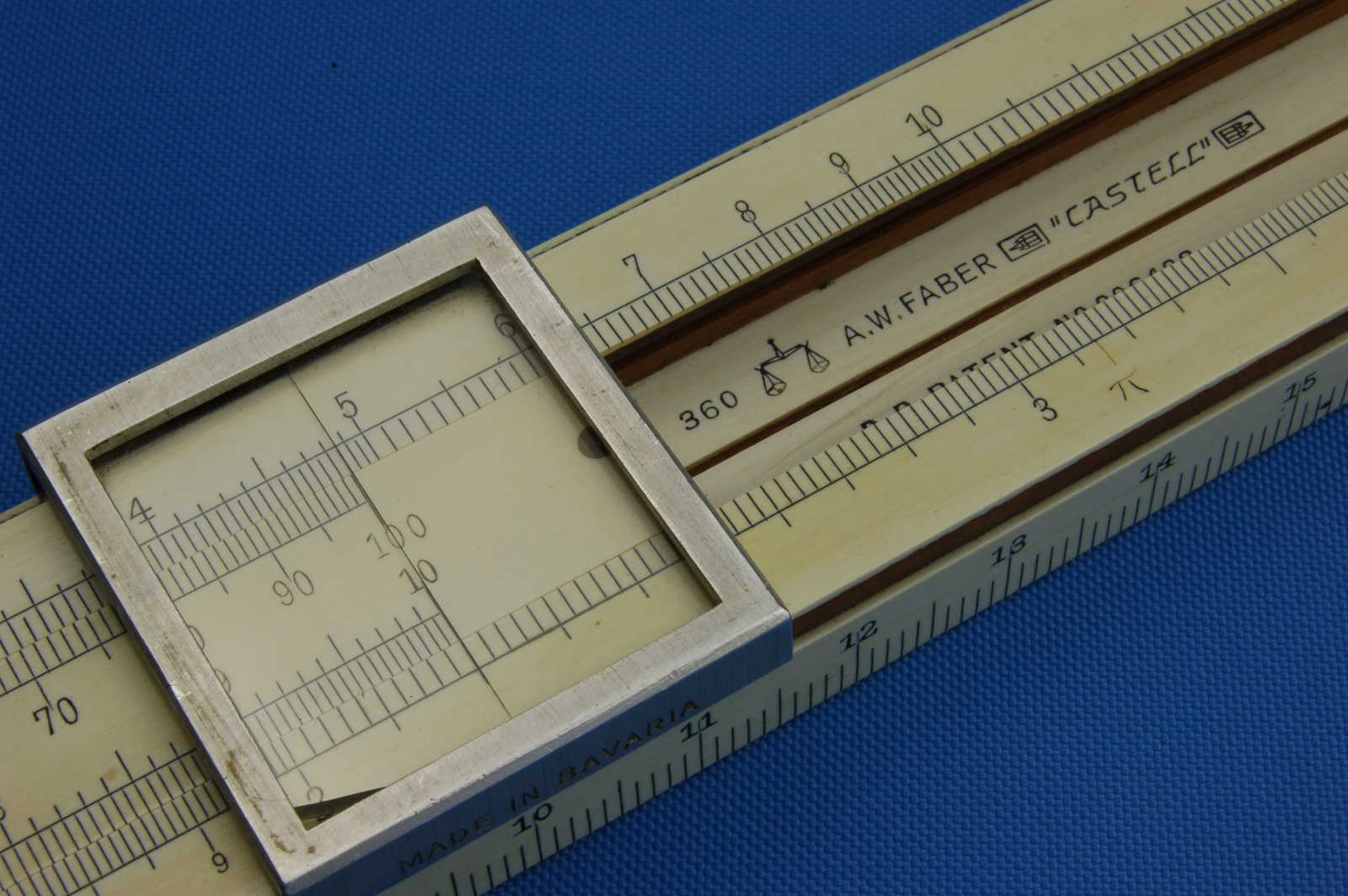

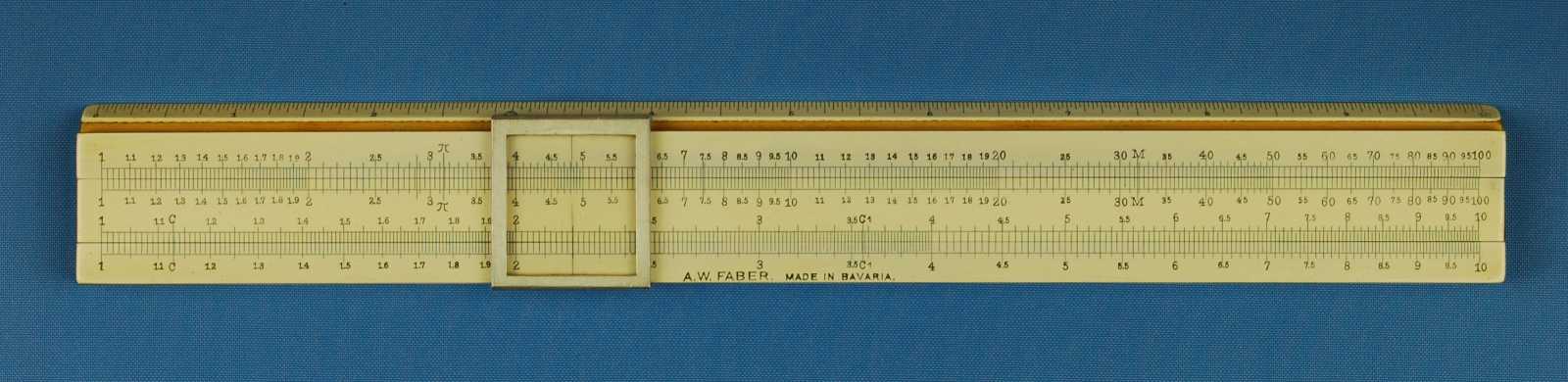

A W Faber 360 (c1906-7) |
|
|
Summary
|
|
System:
|
Enhanced Mannheim
|
|
Specialization:
|
-
|
|
Type:
|
Closed frame
|
|
Material:
|
Boxwood
|
|
Facings:
|
Celluliod
|
|
Scale Length:
|
25cm
|
No of Scales:
|
7
|
|
Front Length:
|
260mm
|
Front Width:
|
27.5mm
|
|
Language:
|
English
|
Origin:
|
Bavaria
|
|
Date:
|
c1906-7
|
|
Features/Notes:
|
Unlabelled model, unusual plain back without rebate.
|
|
Scales (colours as shown)
|
|
Front:
|
A [ B, C ] D |
Back:
|
[ S, L, T ]
|
|
Labels Left:
|
-
|
Labels Left:
|
-
|
|
Labels Right:
|
-
|
Labels Right:
|
All, as scales
|
|
Style:
|
Railway track
|
Typeface:
|
Serif
|
|
Extensions:
|
-
|
Decimals:
|
Tenths between 1 & 2 on A, B, C & D
Units between 10 and 20 on A & B
0.5's between 2 & 10 on A, B, C & D
5's between 20 and 100 on A & B |
|
Gauge Marks:
|
p (3.14) on A & B
M (1/p=0.318) on A & B
C (1.13) on C & D
C1 (3.57) on C & D |
Rulers:
|
inch on top edge
cm on bottom edge
cm continuation in well for longer measurements
|
|
Features/Notes:
|
There are gauge marks on the A & B scales, without labels, corresponding to the 28.7 and 746 gauge marks from an electro rule. It is believed all these marks are aberations, the scales originally being intended for a precursor to the model 368 electro rule.
|
|
Construction
|
|
Stock:
|
Single piece solid stock with 2 longitudinal slits cut in well.
Right viewing cutout with index marks, in back for reverse of slide.
Bevelled top edge, square bottom edge.
High cursor grooves both cut parallel to front face.
Flat back.
Front, well, top and bottom edges celluloid faced.
Length x Width x Height (mm) - 260 x 33 x 9
|
|
Slide:
|
Double sided
Celluliod faced on both sides
Front face width (mm) - 11.5
|
Cursor:
|
Aluminium frame, glass pane.
Square window.
Left end riveted steel spring on top runner.
Single central full length hairline.
Width x Height (mm) - 29 x 31
|
|
Printing (colours as shown)
|
|
Stock:
|

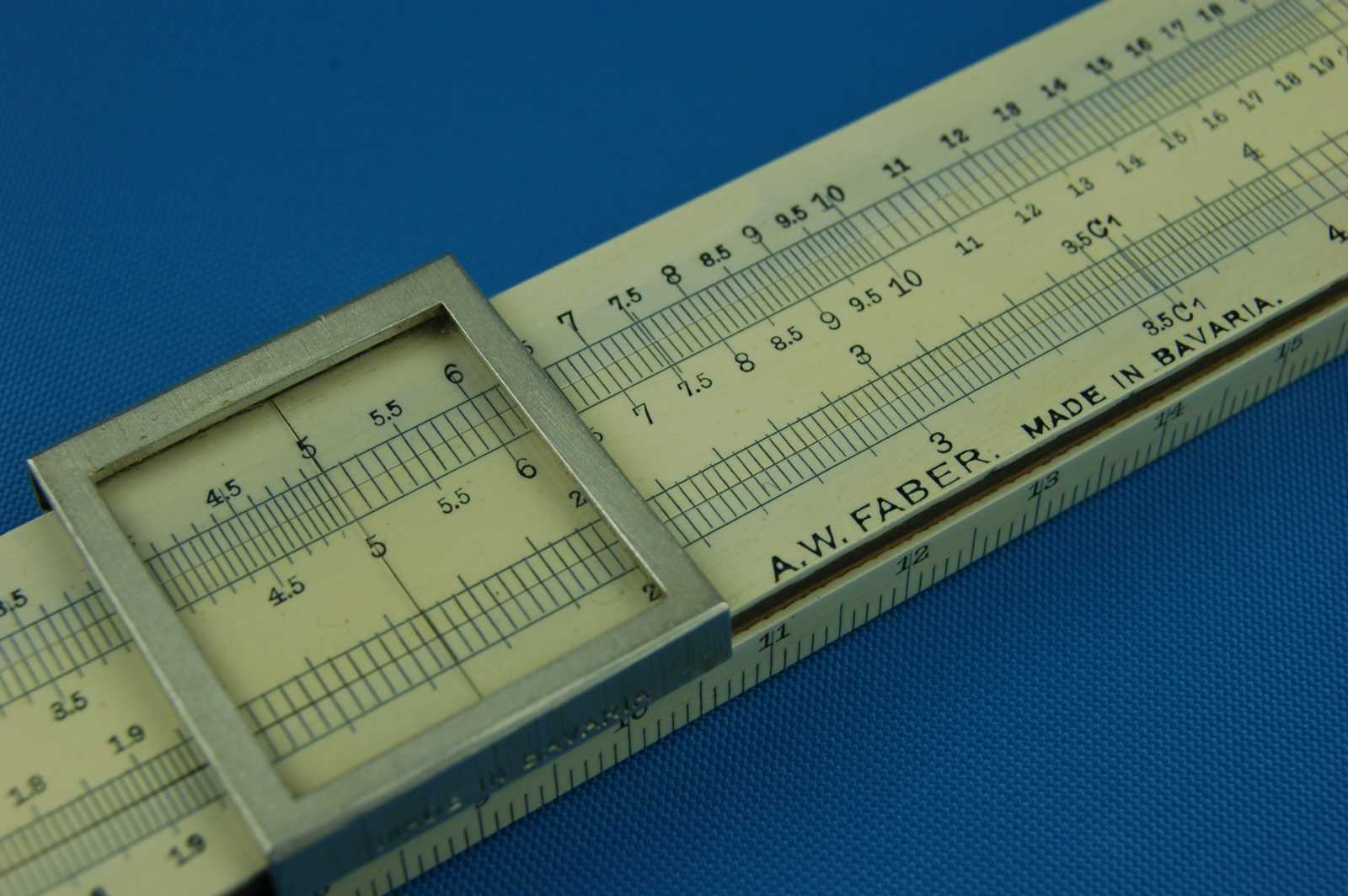

"A.W.FABER." and "MADE IN BAVARIA." in centre of front bottom rail, sans-serif.
|
|
Slide:
|
-
|
|
Cursor:
|
"MADE IN BAVARIA" stamped on the bottom edge.
|
|
Labels:
|
None
|
|
Instructions
|
|
None
|
|
Box (colours as shown)
|
|
Style:
|
Rounded
|
L x W x D mm:
|
275 x 45 x 27
|
|
Material:
|
Cardboard
|
Colour:
|
Black
|
|
Construction:
|
2 part, internal sleeve join.
Cloth covered.

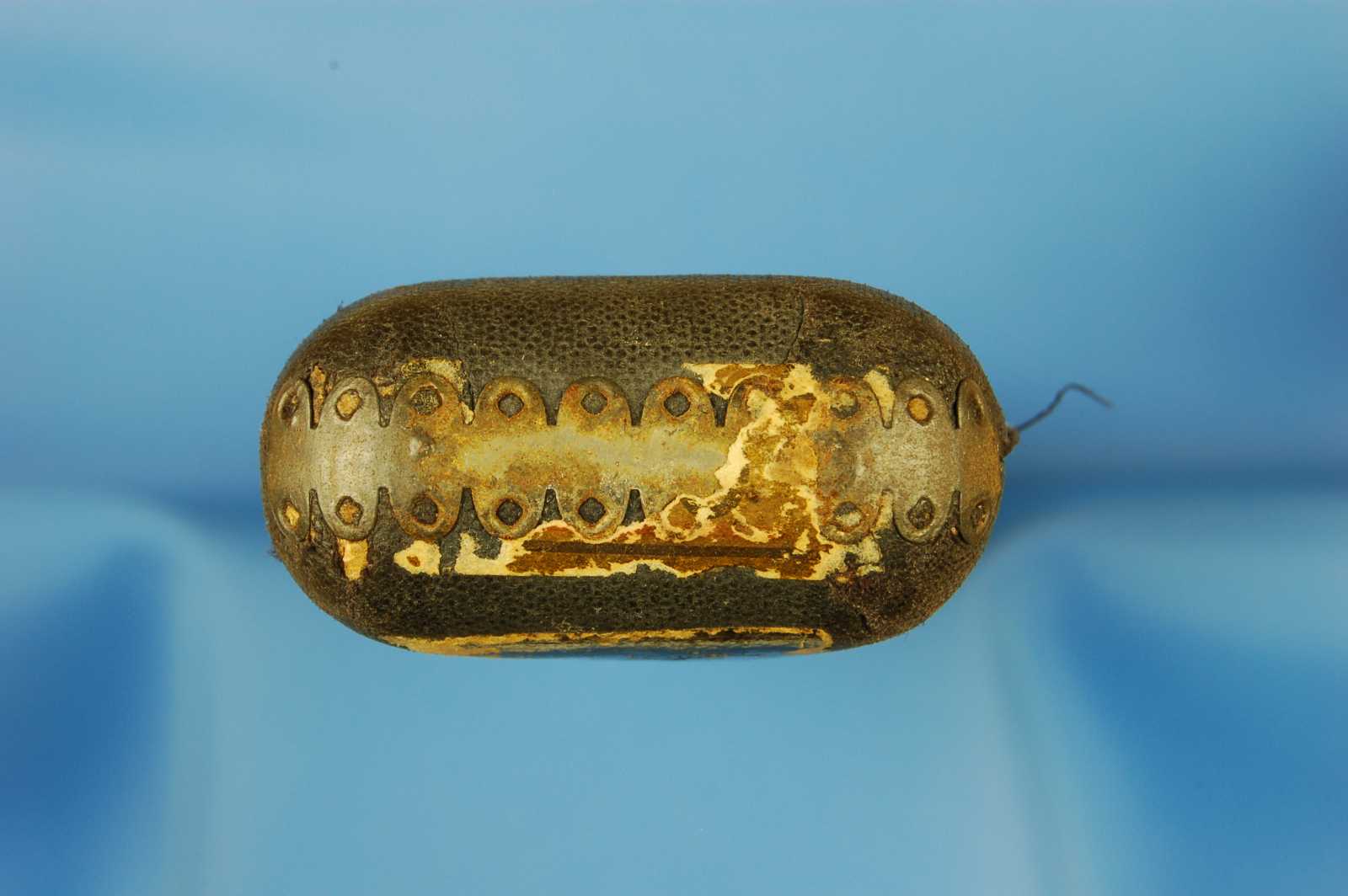

Metal braced ends.
|
|
Printing:
|
"A.W. FABER." and smaller underneath to the left "MADE IN BAVARIA." on the front.
|
|
Labels:
|

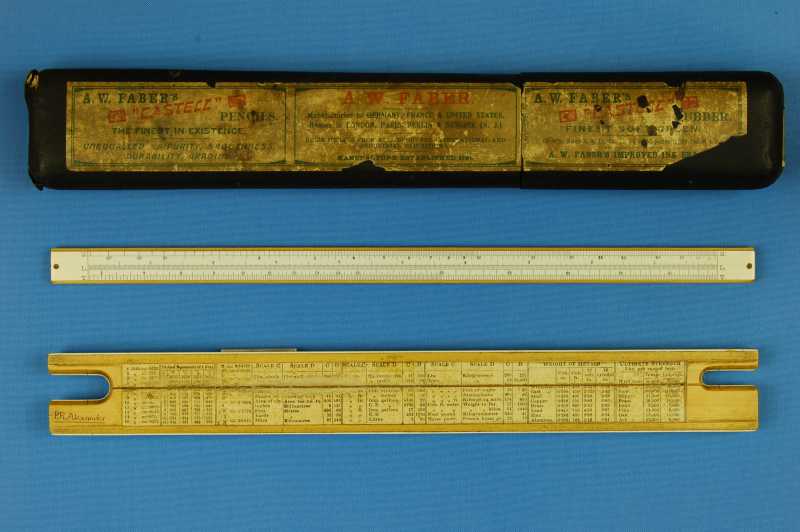

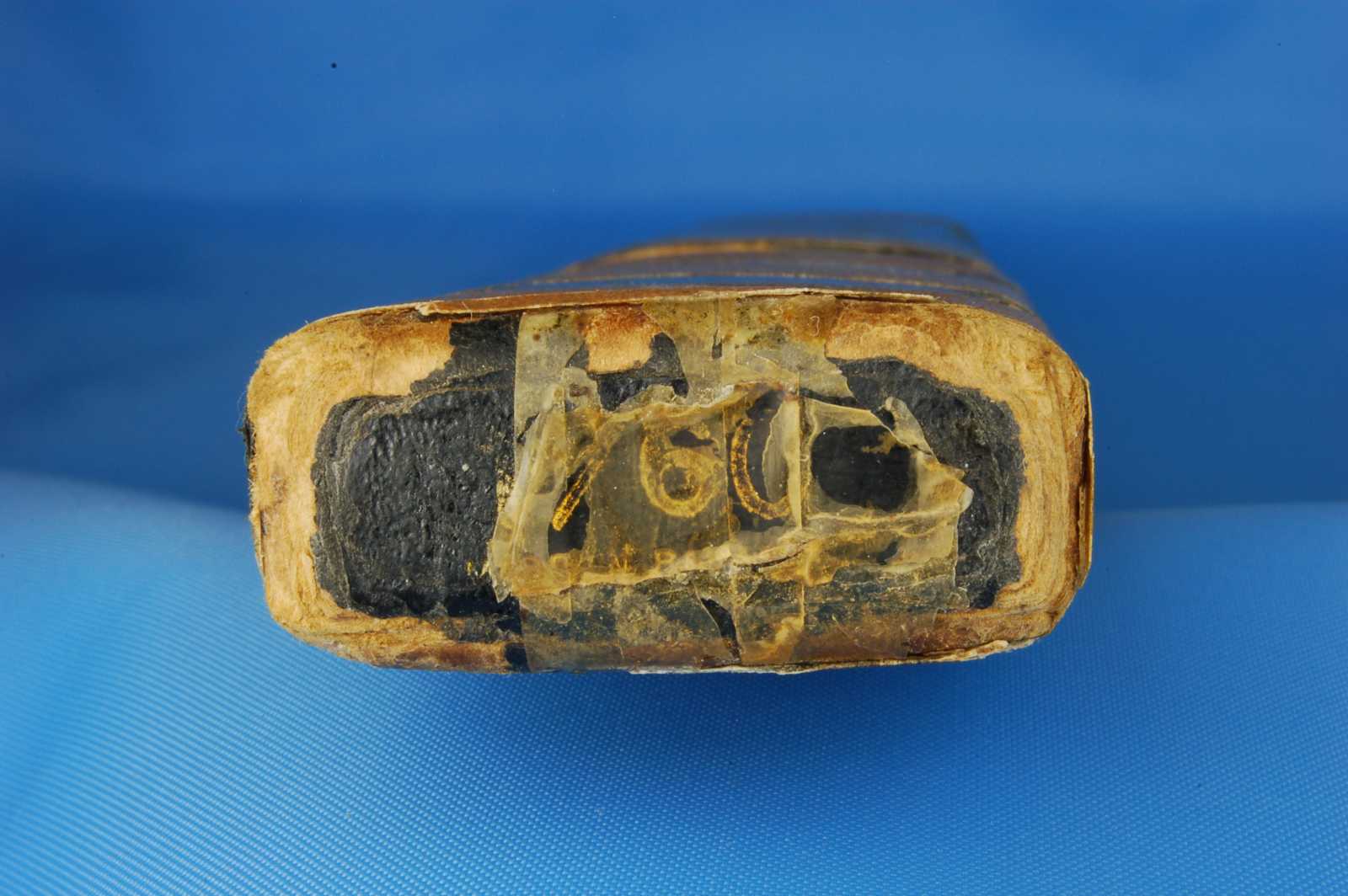

Large label on back, which although the surface has scuffed off in many places, appears to be completely black with no printing. It is believed that some degredation process has occured to produce this appearance and the label was originally a gold on black advertising label. A small portion of border is still just visible.
Remnants of white label with possibly an "0" and a solid border on right hand end (ends damaged).
|
|
Detail Images
|
|
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
|
Click on the images for enlargements.

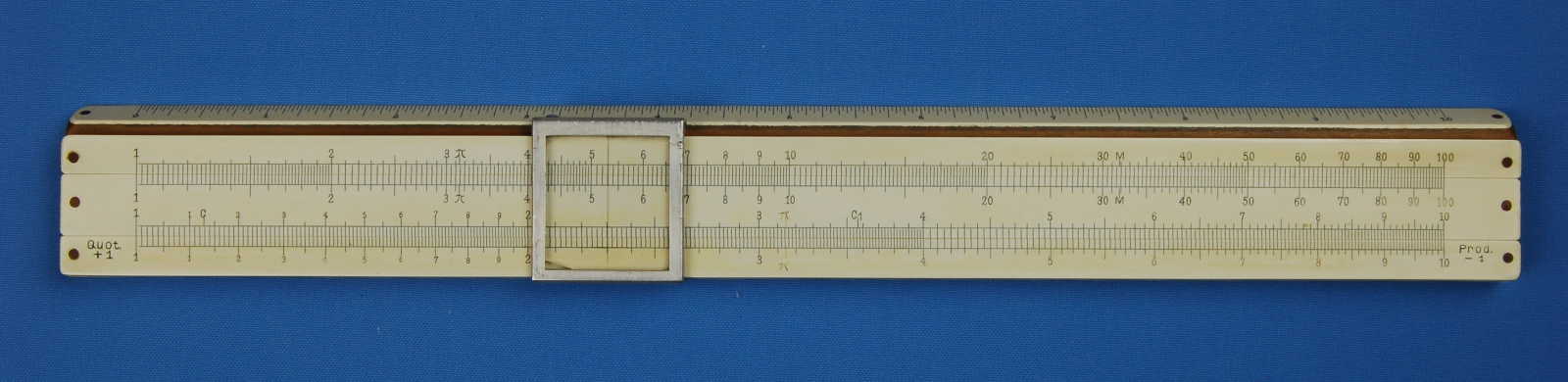

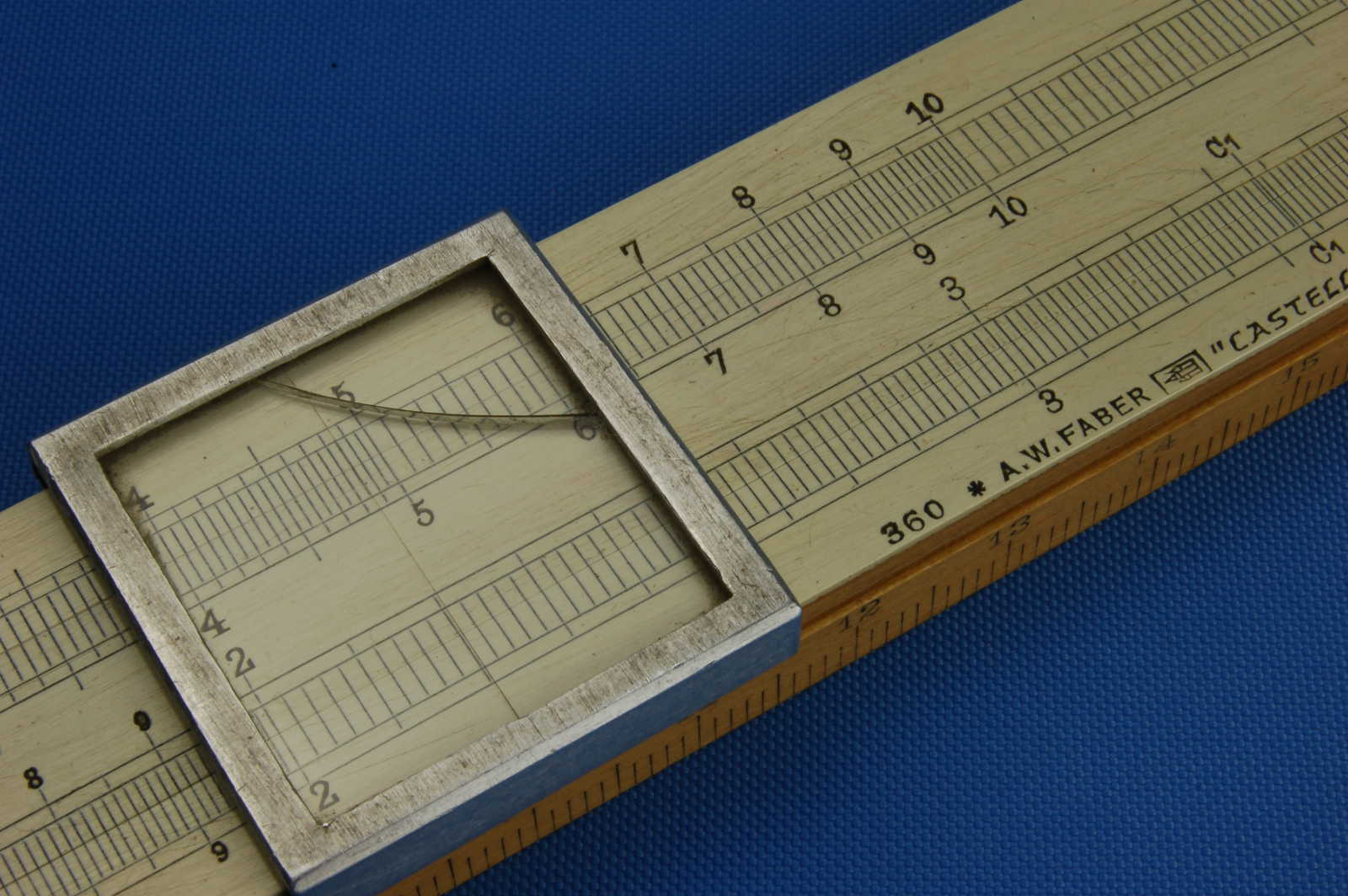

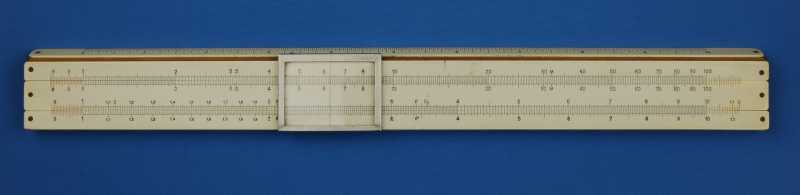

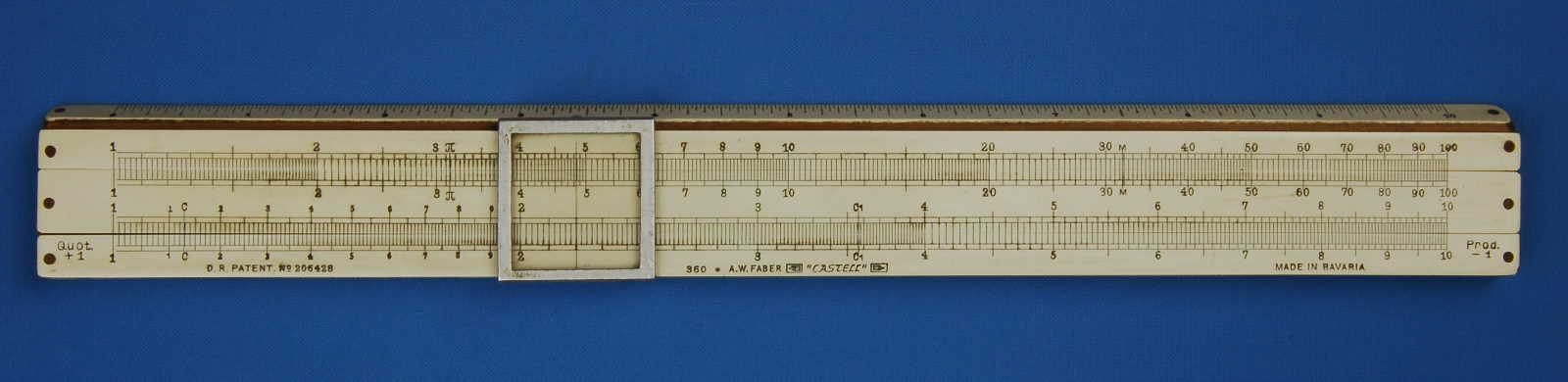

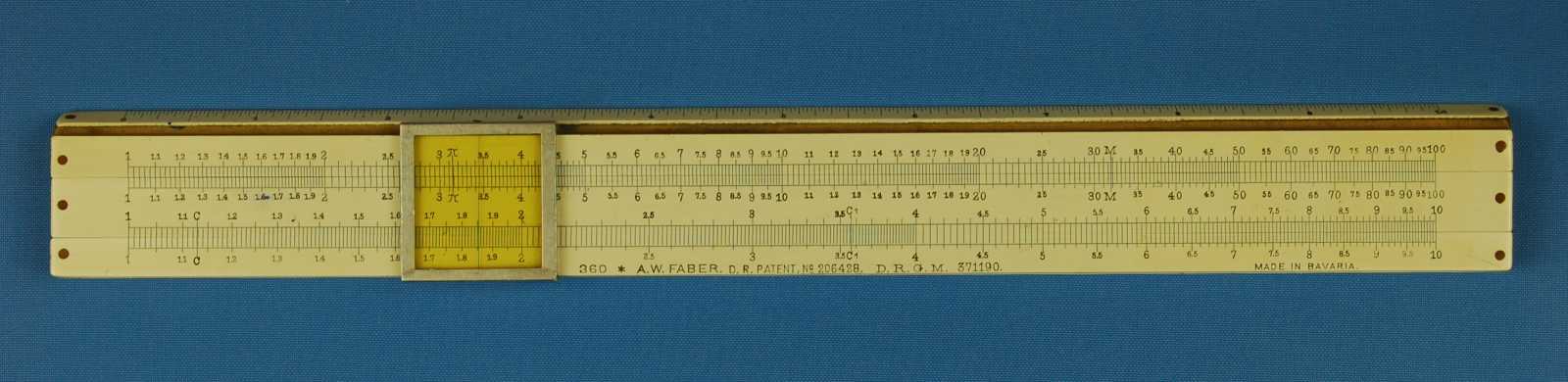

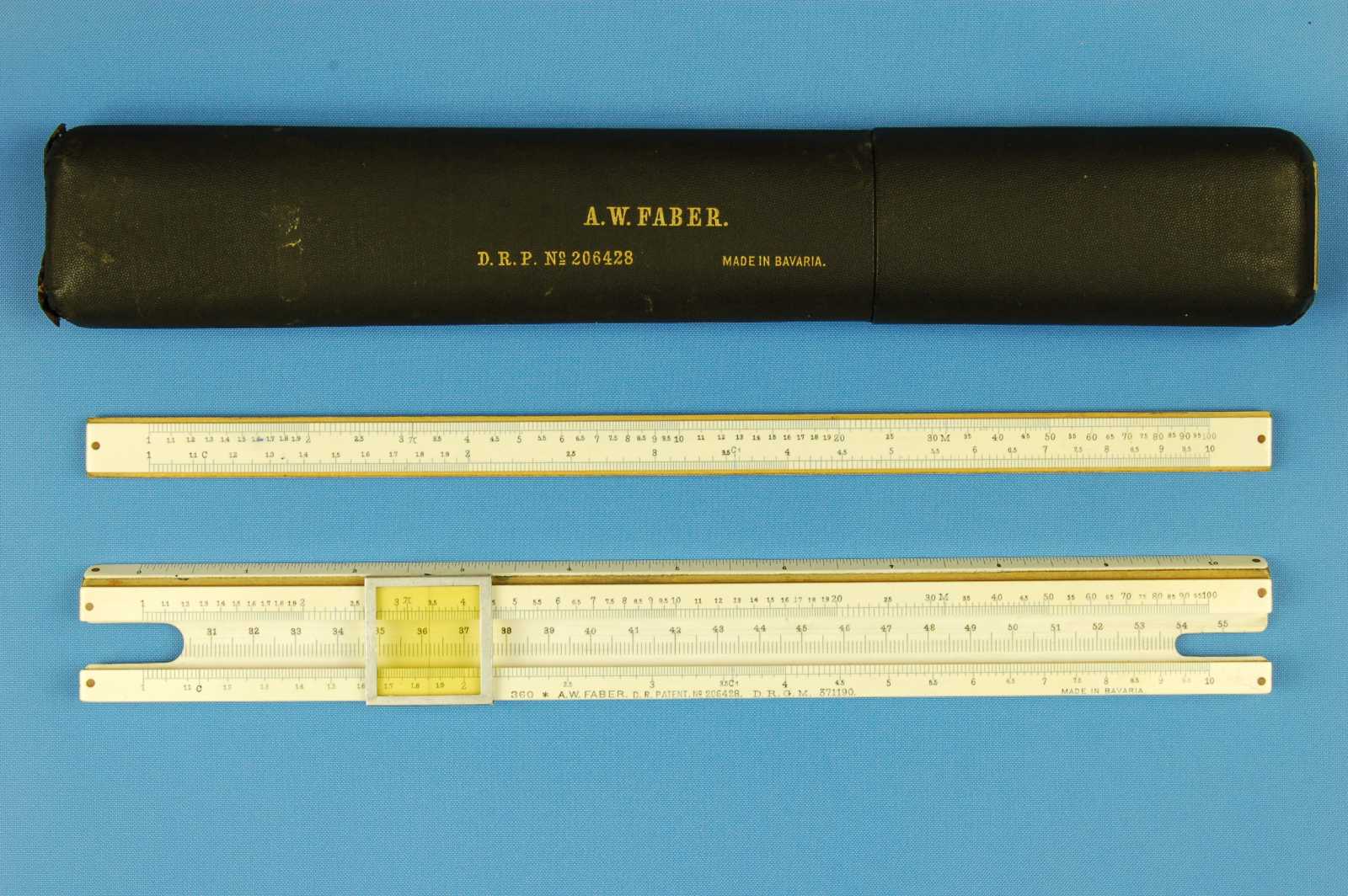

A W Faber 360 (c1913) |
|
|
Summary
|
|
System:
|
Enhanced Mannheim
|
|
Specialization:
|
-
|
|
Type:
|
Closed frame
|
|
Material:
|
Boxwood
|
|
Facings:
|
Celluliod
|
|
Scale Length:
|
25cm
|
No of Scales:
|
7
|
|
Front Length:
|
280mm
|
Front Width:
|
27.5mm
|
|
Language:
|
English
|
Origin:
|
Bavaria
|
|
Date:
|
c1913
|
|
Features/Notes:
|
-
|
|
Scales (colours as shown)
|
|
Front:
|
A [ B, C ] D
|
Back:
|
[ S, L, T ]
|
|
Labels Left:
|
-
|
Labels Left:
|
All, as scales
|
|
Labels Right:
|
-
|
Labels Right:
|
All, as scales
|
|
Style:
|
Railway track
|
Typeface:
|
Serif
|
|
Extensions:
|
-
|
Decimals:
|
Tenths between 1 & 2 on A, B, C & D
Units between 10 and 20 on A & B
0.5's between 2 & 10 on A, B, C & D
5's between 20 and 100 on A & B
|
|
Gauge Marks:
|
p (3.14) on A & B
M (1/p=0.318) on A & B
C (1.13) on C & D
C1 (3.57) on C & D
|
Rulers:
|
inch on top edge
cm on bottom edge
cm continuation in well for longer measurements
|
|
Features/Notes:
|
-
|
|
Construction
|
|
Stock:
|
2 part split stock joined with celluloid (DRGM 306107, 1907).
Braced with longitudinal metal strips (DRP 206428, 1908).
Left and right viewing cutouts with index marks, in back for reverse of slide.
Bevelled top edge, square bottom edge.
High cursor grooves both cut parallel to front face.
Shallow rebate in back .
Front, well, top and bottom edges celluloid faced, secured with wooden pins (DRGM 371190, 1908).
Length x Width x Height (mm) - 280 x 33 x 9
|
|
Slide:
|

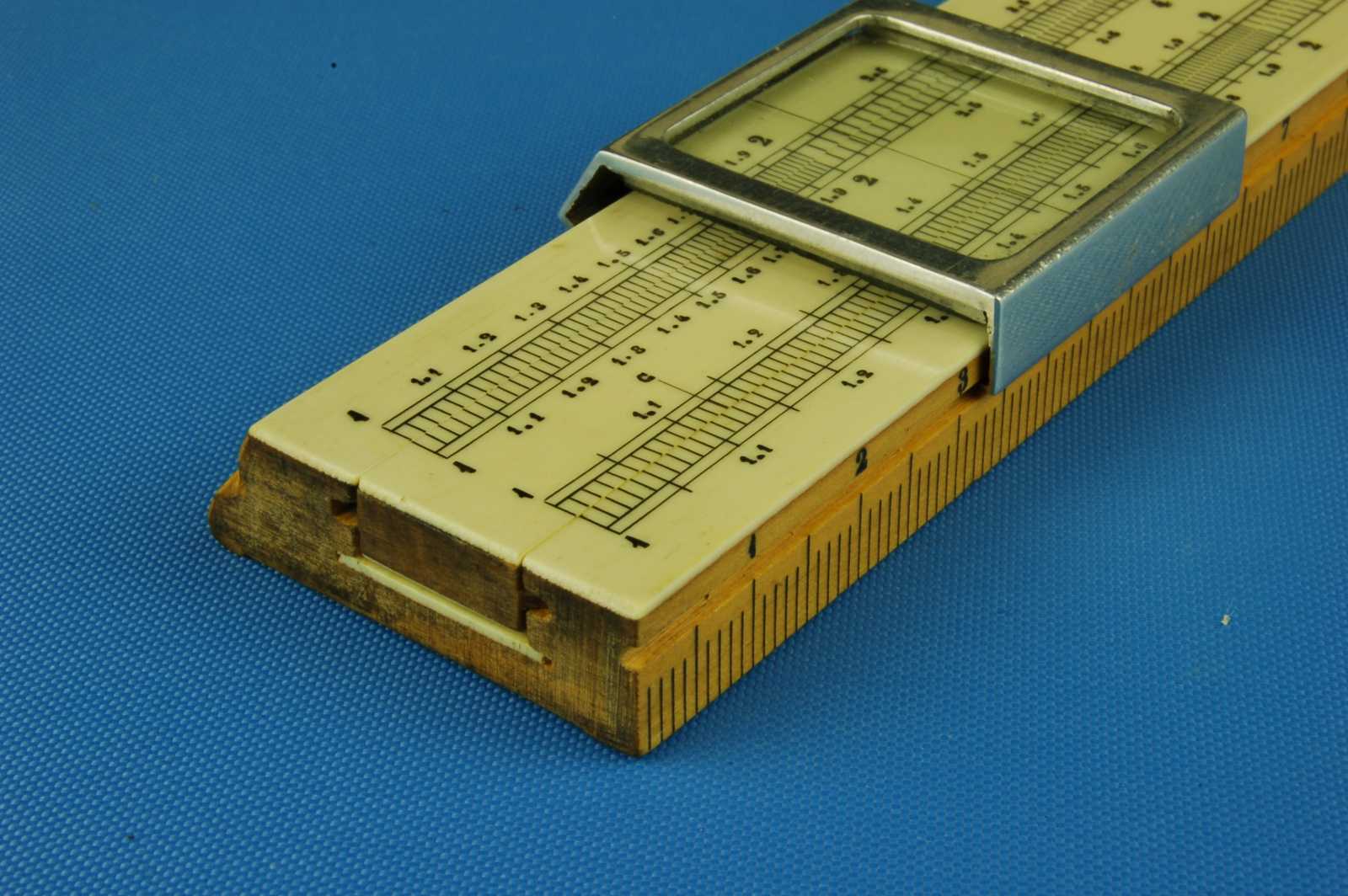

Double sided
Braced with longitudinal metal strips (DRP 206428, 1908)
Celluliod faced on both sides, secured with wooden pins (DRGM 371190, 1908)
Front face width (mm) - 11.5
|
Cursor:
|

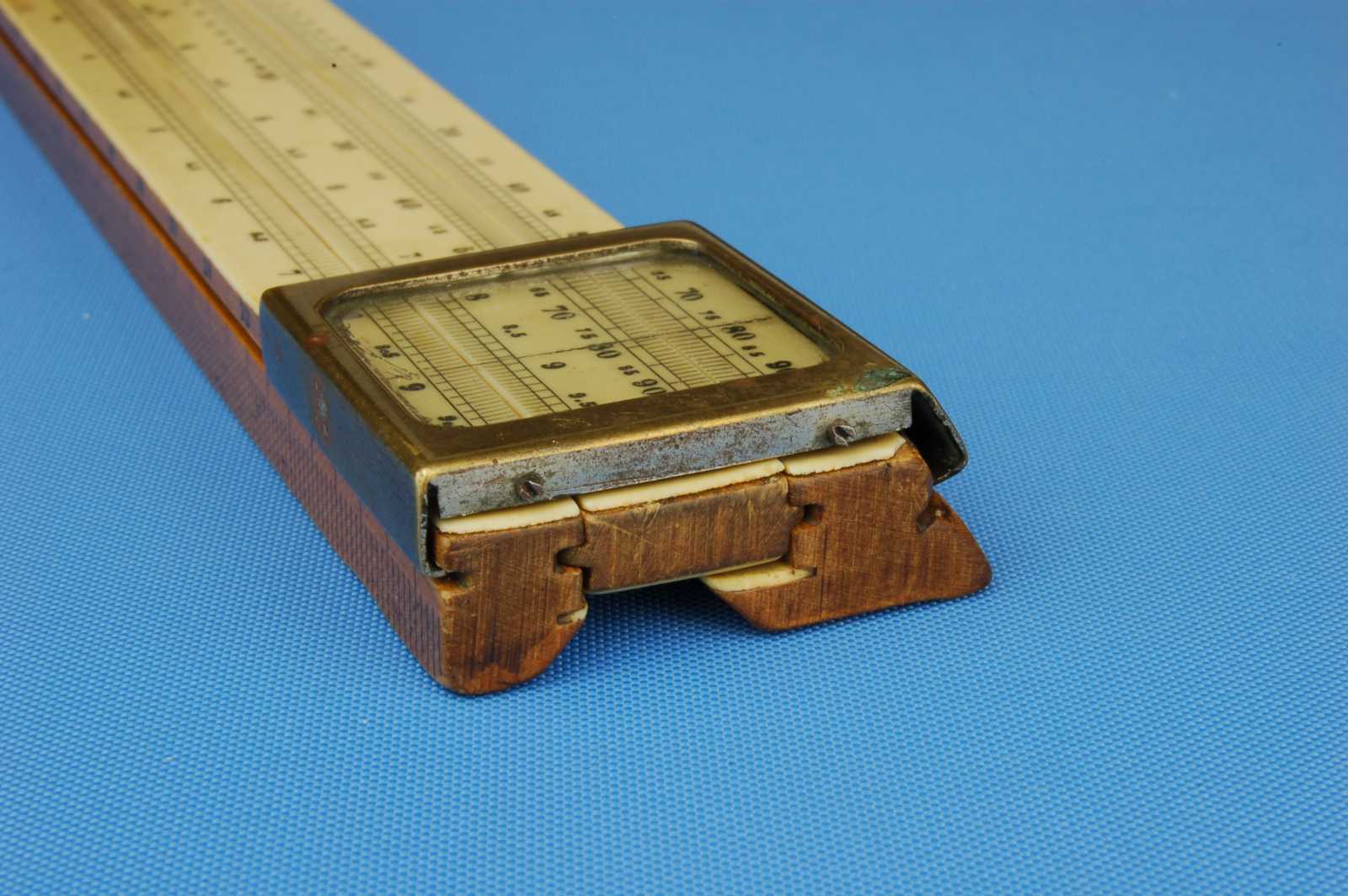

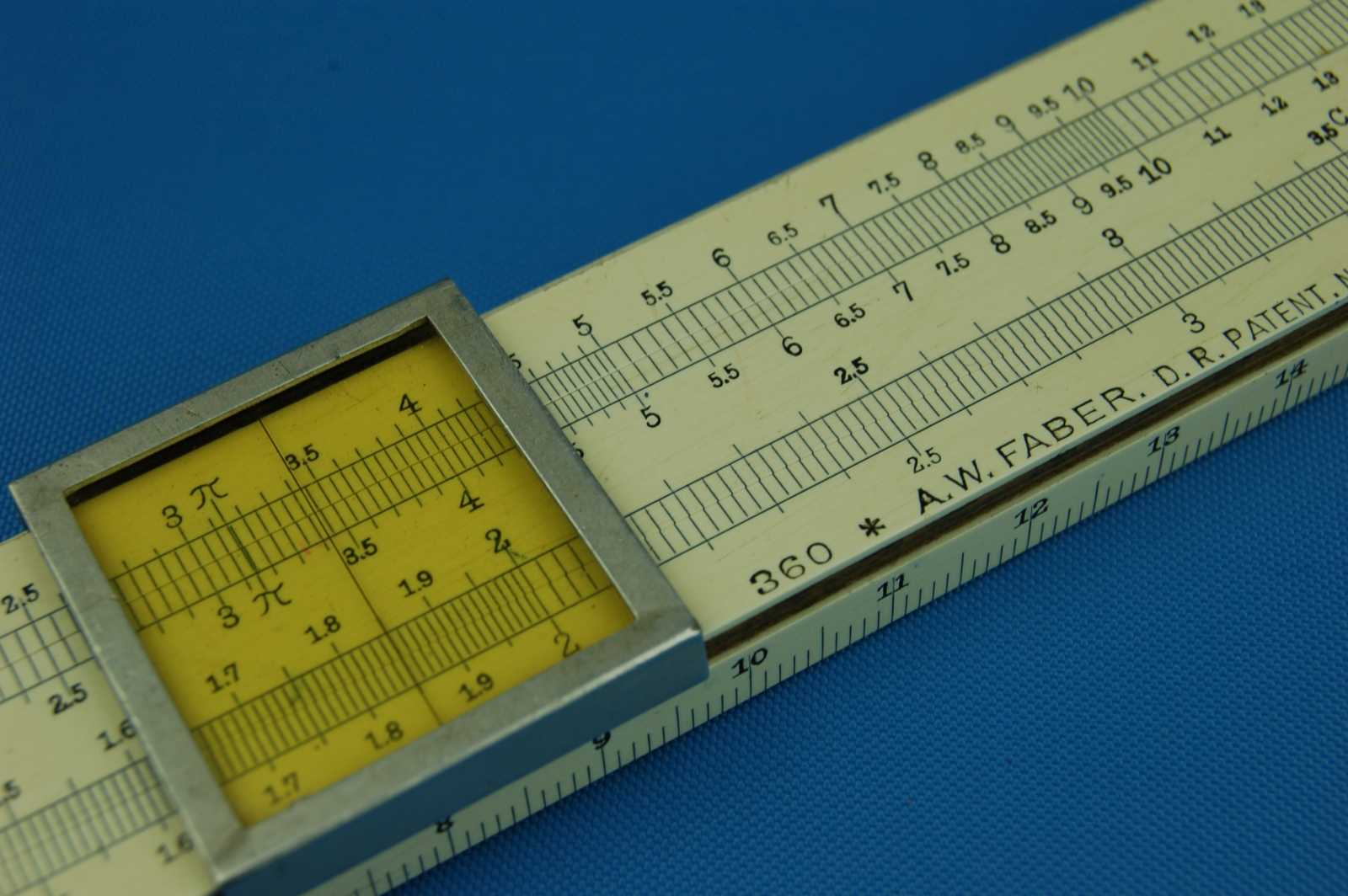

Aluminium frame, replacement plastic yellow tinted pane.
Square window.
Centre riveted steel spring on top runner.
Single central full length hairline.
Width x Height (mm) - 30 x 30
|
|
Printing (colours as shown)
|
|
Stock:
|
"360 * A.W. FABER.", "D.R. PATENT. No 206428." & "D.R.G.M. 371190." on front lower rail in the centre, sans-serif.
"MADE IN BAVARIA." towards the right end of the front lower rail, sans-serif.
|
|
Slide:
|
-
|
|
Cursor:
|
-
|
|
Labels:
|
On back, paper table featuring conversions and mathematical and physical constants.
|
|
Instructions
|
|
None
|
|

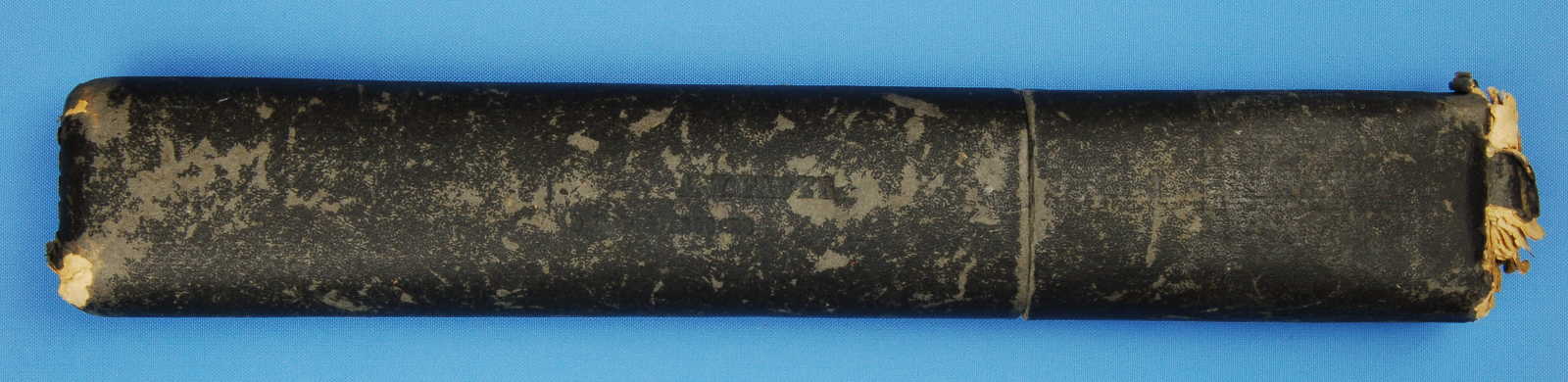

Box (colours as shown)
|
|
Style:
|
Rounded
|
L x W x D mm:
|
295 x 45 x 27
|
|
Material:
|
Cardboard
|
Colour:
|
Black
|
|
Construction:
|
2 part, internal sleeve join.
Cloth covered.
Metal braced ends.
|
|
Printing:
|

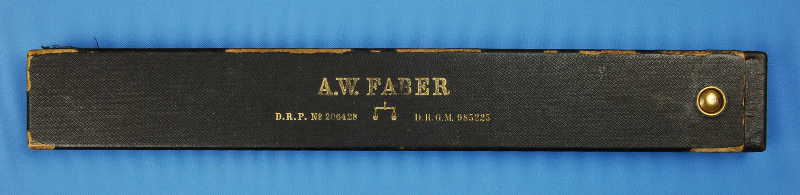

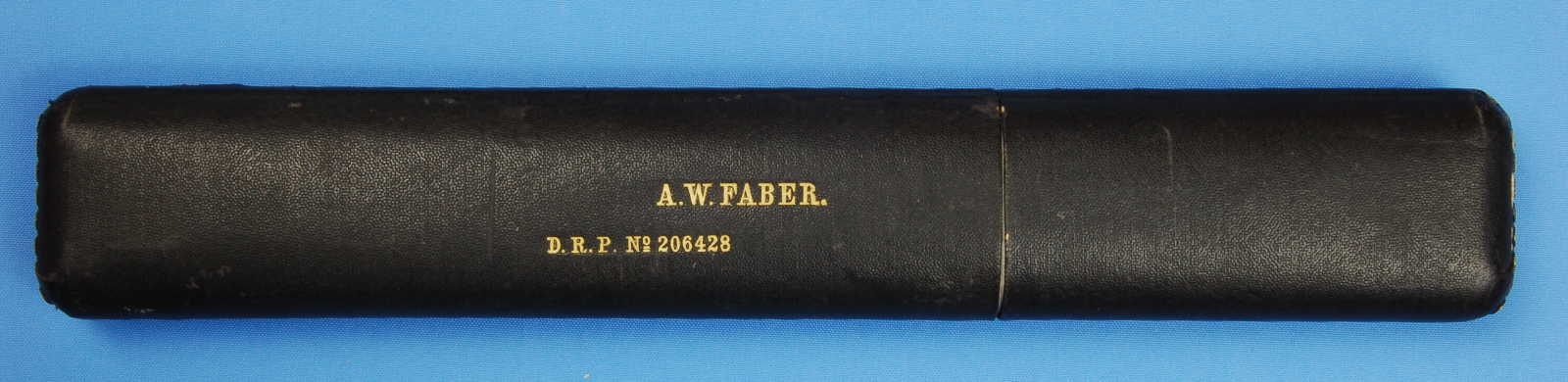

"A.W. FABER." and underneath "D.R.P. No 206428" followed by "MADE IN BAVARIA." on the front.
|
|
Labels:
|

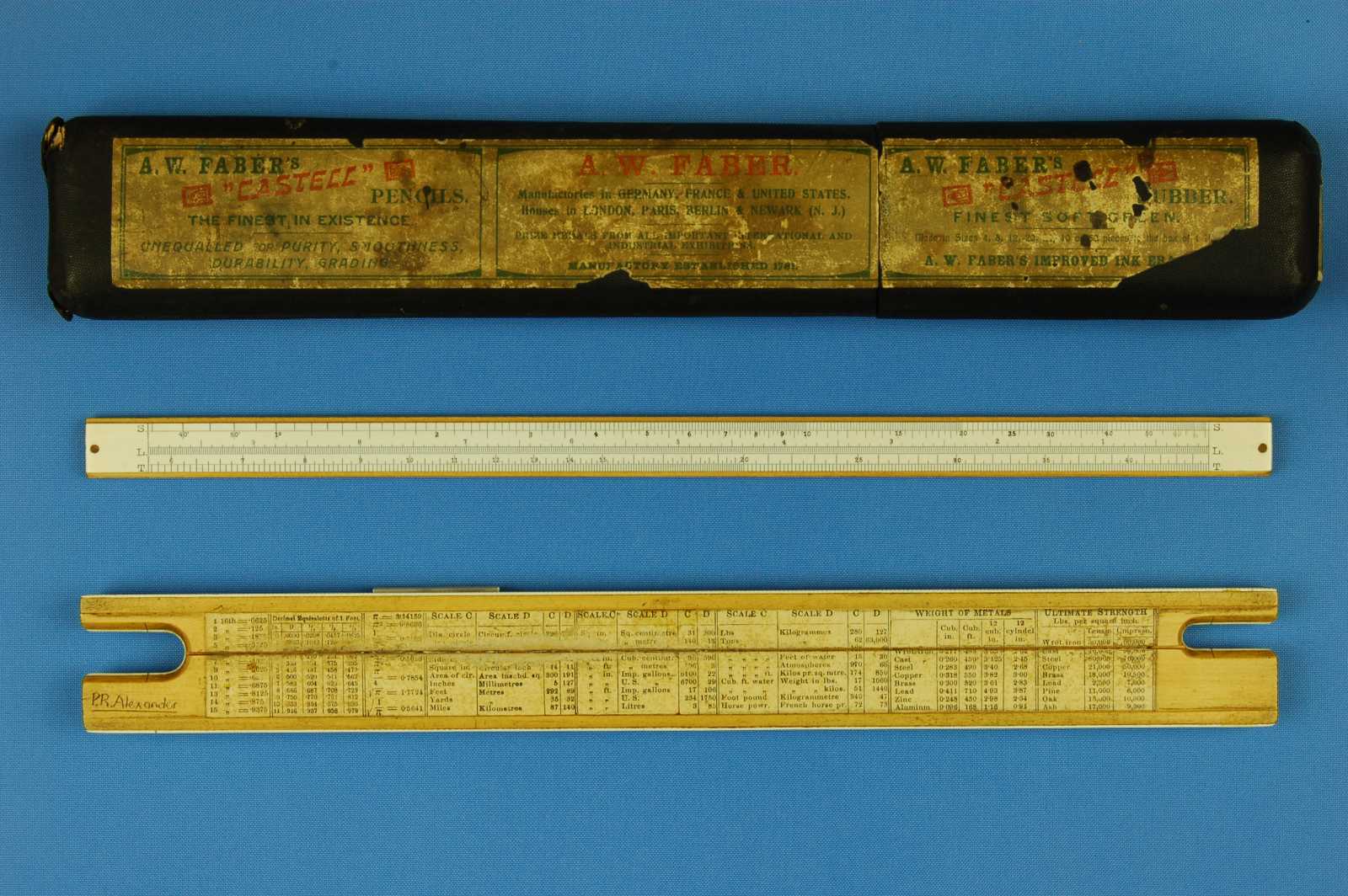

Large red/green on white advertising label on back.

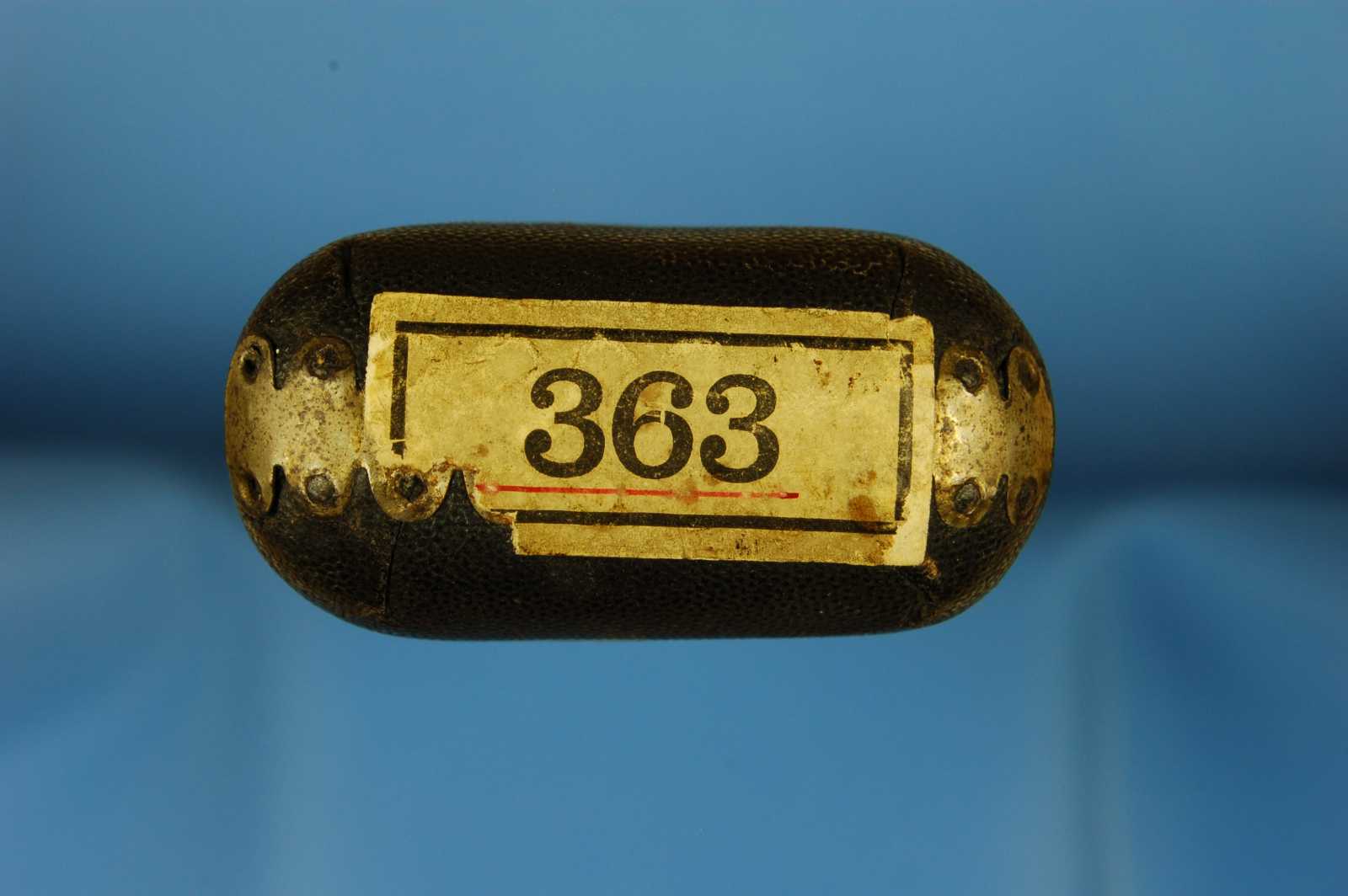

"363" with solid border on white, model number sticker on right hand end. This model number is strictly incorrect for the rule but it is likely, due to the age and circumatance, that this box was originally supplied with the rule.
|
|

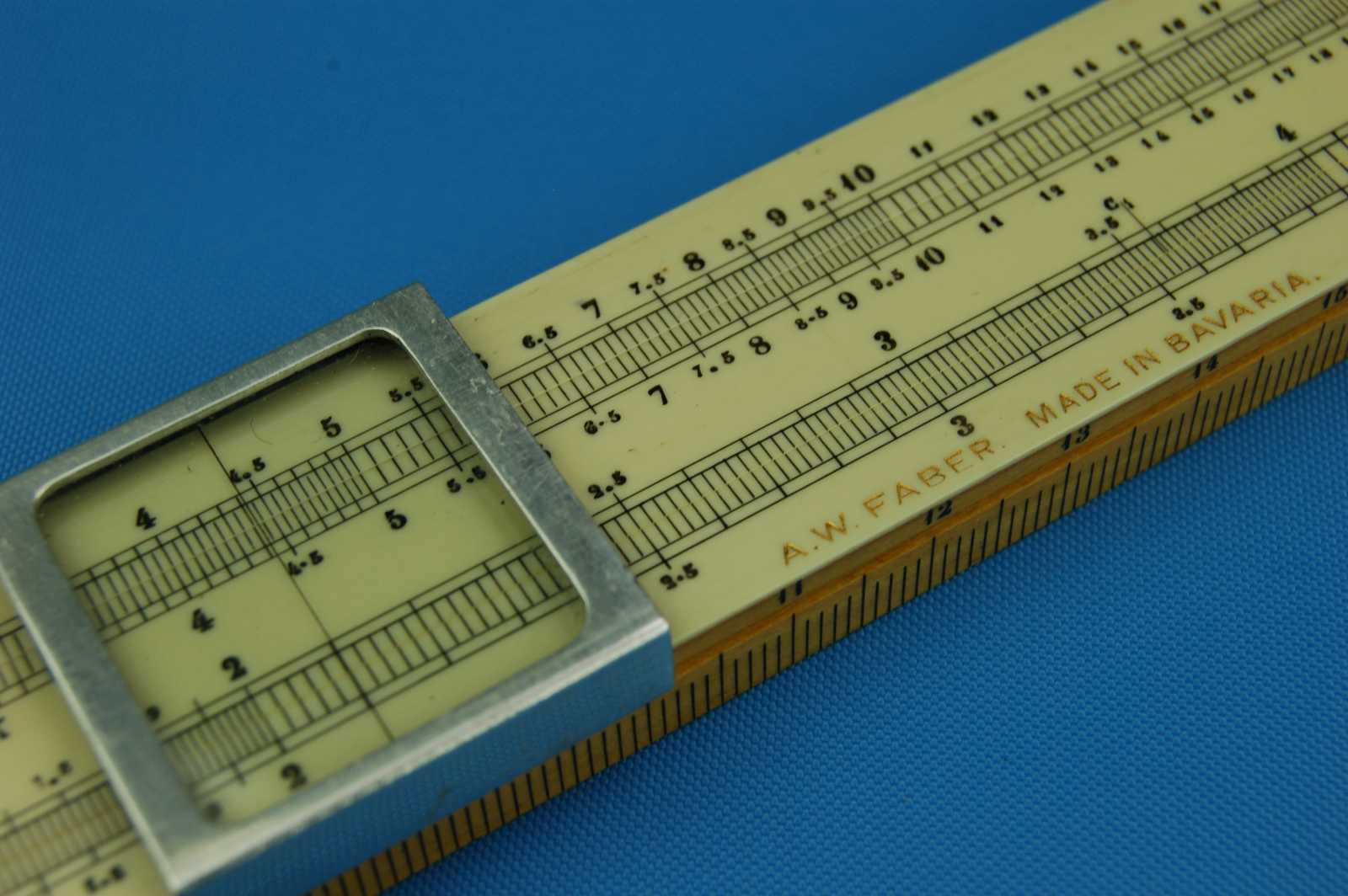

Detail Images
|
|
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
|
Click on the images for enlargements.

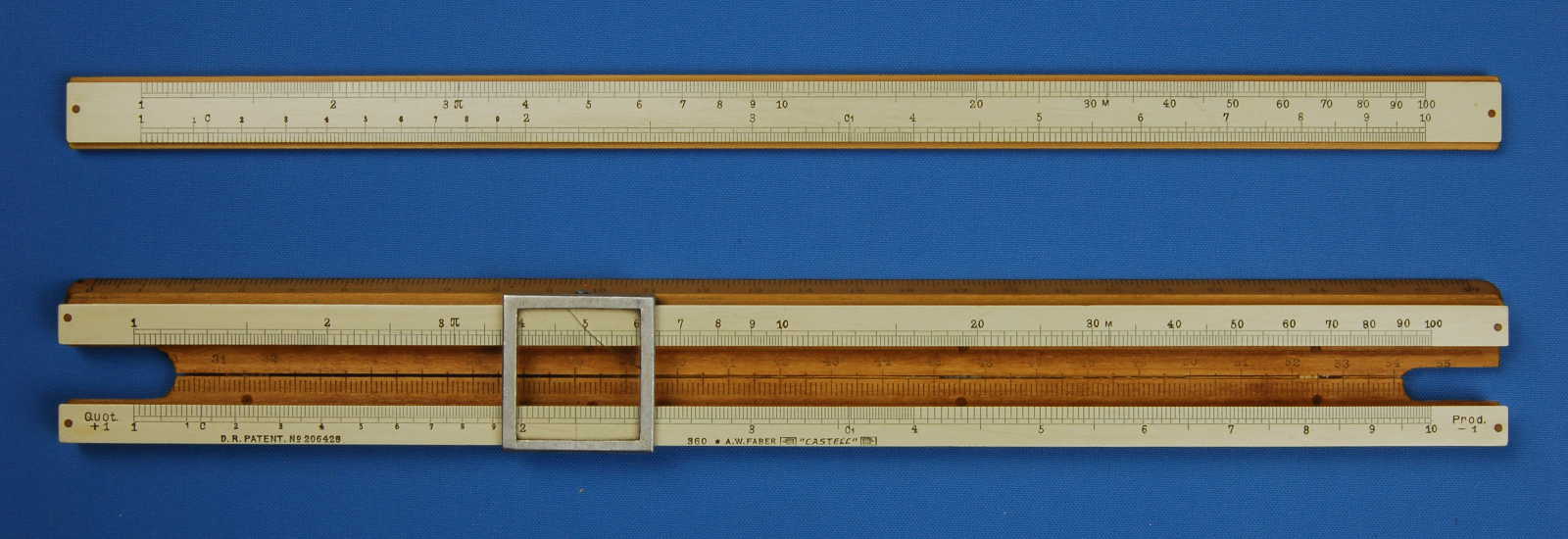

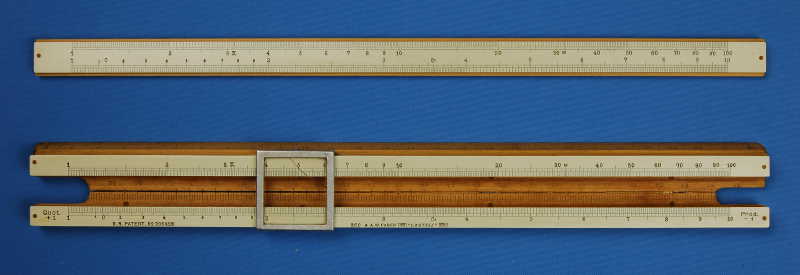

A W Faber "Castell" 360 (c1914-20) |
|
|
Summary
|
|
System:
|
Enhanced Mannheim
|
|
Specialization:
|
-
|
|
Type:
|
Closed frame
|
|
Material:
|
Boxwood
|
|
Facings:
|
Celluliod
|
|
Scale Length:
|
25cm
|
No of Scales:
|
7
|
|
Front Length:
|
280mm
|
Front Width:
|
27.5mm
|
|
Language:
|
German
|
Origin:
|
-
|
|
Date:
|
c1914-20
|
|
Features/Notes:
|
No celluliod on edges, unusual for date.
|
|
Scales (colours as shown)
|
|
Front:
|
A [ B, C ] D
|
Back:
|
[ S, L, T ]
|
|
Labels Left:
|
-
|
Labels Left:
|
All, as scales
|
|
Labels Right:
|
-
|
Labels Right:
|
All, as scales
|
|
Style:
|
Railway track (double)
|
Typeface:
|
Serif
|
|
Extensions:
|
-
|
Decimals:
|
Units between 1 & 2 on C & D
|
|
Gauge Marks:
|
p (3.14) on A & B
M (1/p=0.318) on A & B
C (1.13) on C & D
C1 (3.57) on C & D
|
Rulers:
|
cm on top edge
cm on bottom edge
cm continuation in well for longer measurements
|
|
Features/Notes:
|
-
|
|
Construction
|
|

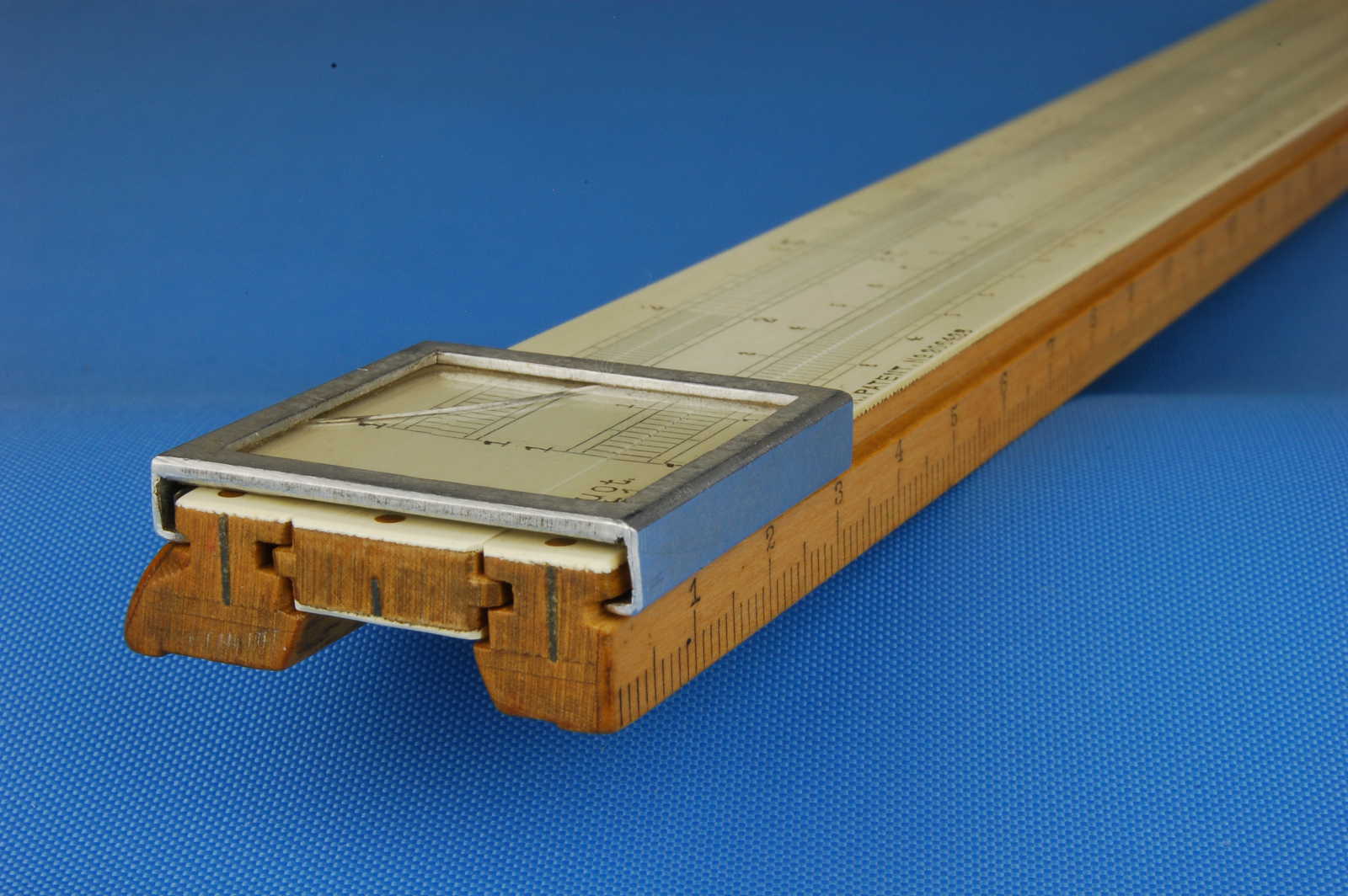

Stock:
|
2 part split stock joined with steel springs (DRGM 522689, 1912; DRGM 452965, 1911).
Braced with longitudinal metal strips (DRP 206428, 1908).
Left and right viewing cutouts with index marks, in back for reverse of slide.
Bevelled top edge, square bottom edge.
High cursor grooves both cut parallel to front face.
Shallow rebate in back .
Front and well only celluloid faced, secured with wooden pins (DRGM 371190, 1908).
Length x Width x Height (mm) - 280 x 33 x 9
|
|
Slide:
|
Double sided
Braced with longitudinal metal strips (DRP 206428, 1908)
Celluliod faced on both sides, secured with wooden pins (DRGM 371190, 1908)
Front face width (mm) - 11.5
|
Cursor:
|

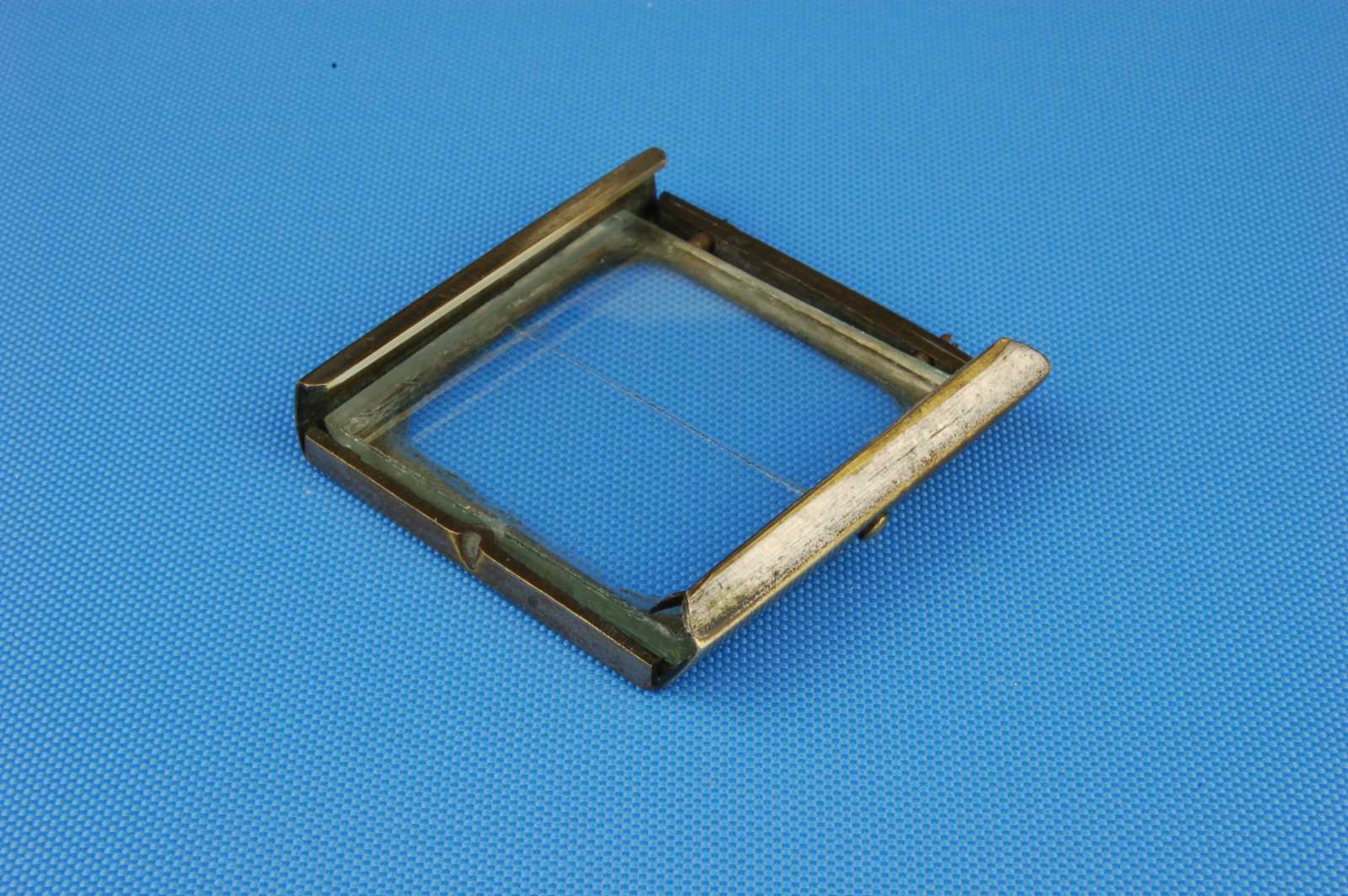

Aluminium frame, glass pane.
Square window.
Centre riveted steel spring on top runner.
Single central full length hairline.
Width x Height (mm) - 29 x 30
|
|
Printing (colours as shown)
|
|
Stock:
|

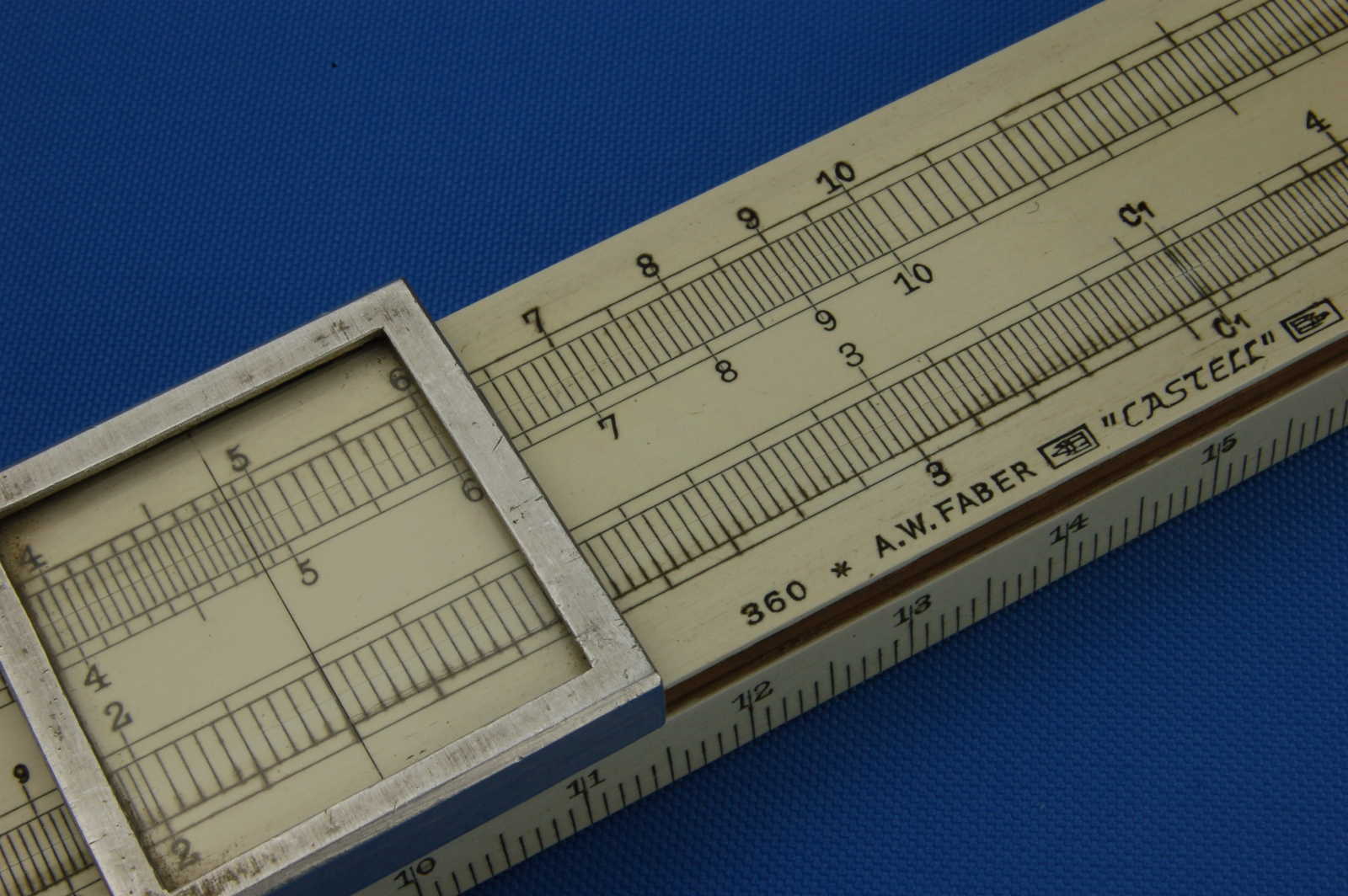

"360 * A.W. FABER" + ""CASTELL"" between lying castles on front lower rail in the centre, sans-serif.
"D.R.PATENT.No 206428." towards the left end of the front lower rail, sans-serif.
"Quot. +1" and "Prod. -1" on the left and right ends respectively of the front lower stock rail, sans-serif.
|
|
Slide:
|
-
|
|
Cursor:
|
-
|
|
Labels:
|

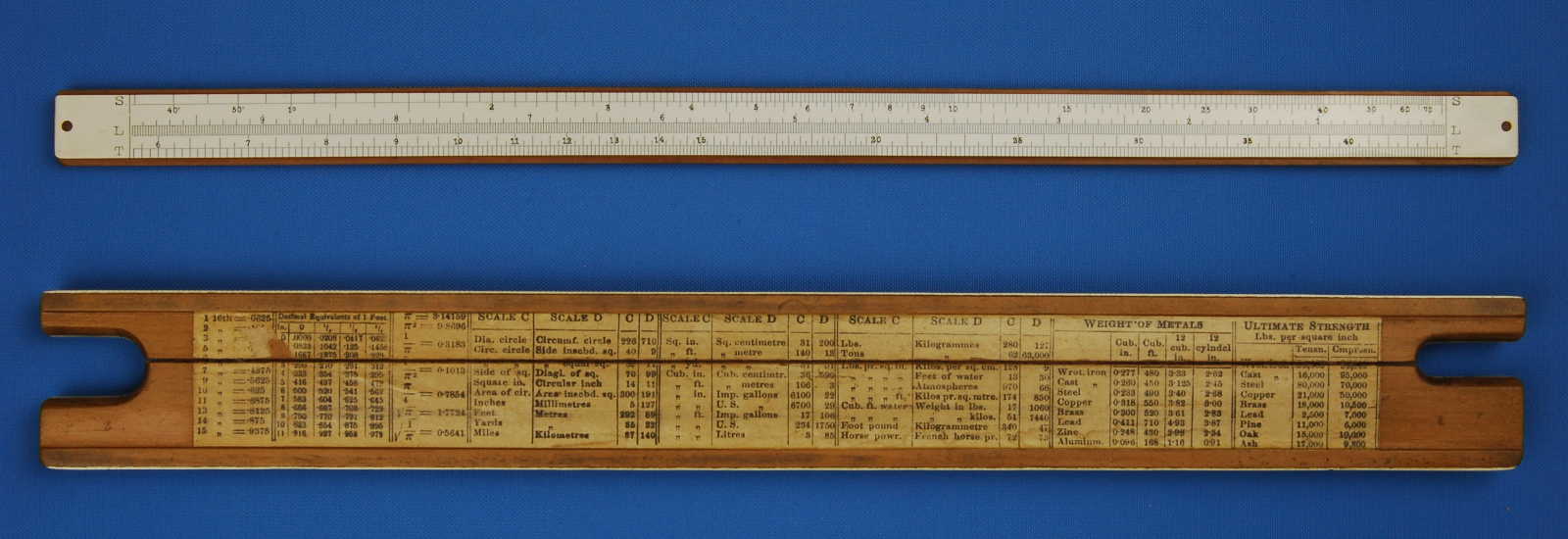

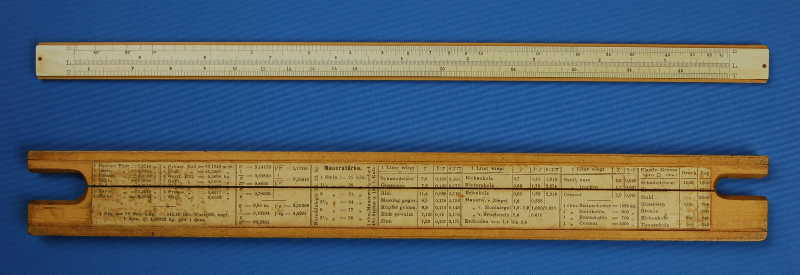

On back, paper table featuring conversions and mathematical and physical constants.
|
|
Instructions
|
|
None
|
|
Box (colours as shown)
|
|
Style:
|
Rounded
|
L x W x D mm:
|
295 x 45 x 27
|
|
Material:
|
Cardboard
|
Colour:
|
Black
|
|
Construction:
|
2 part, internal sleeve join.
Faced.

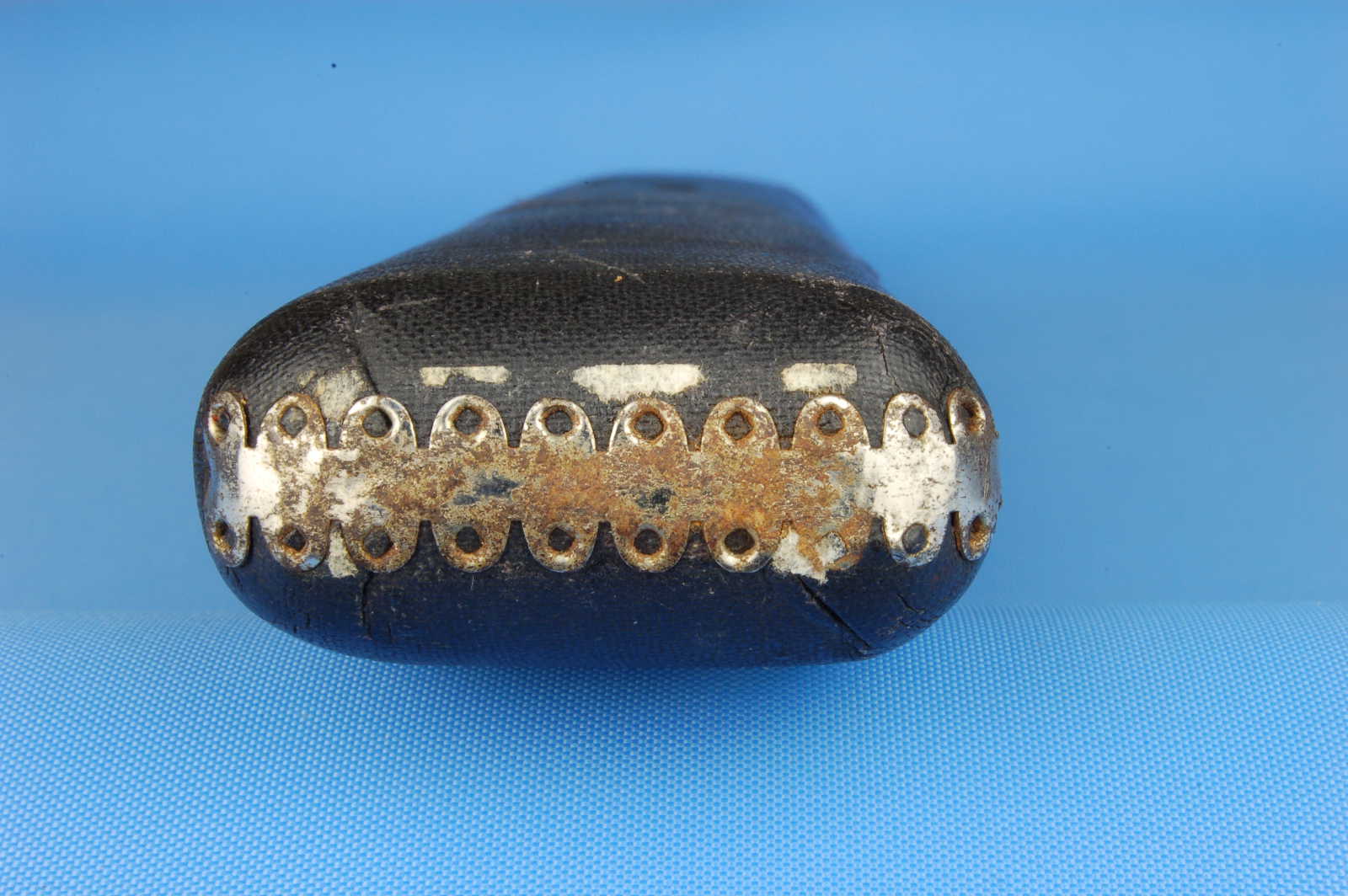

Metal braced ends.
|
|
Printing:
|
"A.W. FABER." and underneath "D.R.P. No 206428" on the front.
|
|
Labels:
|

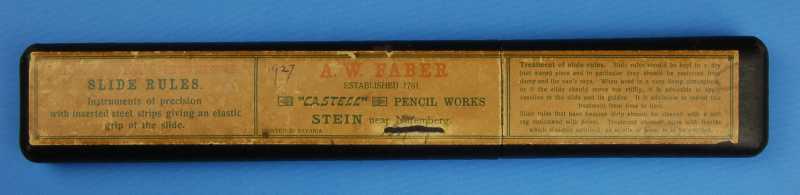

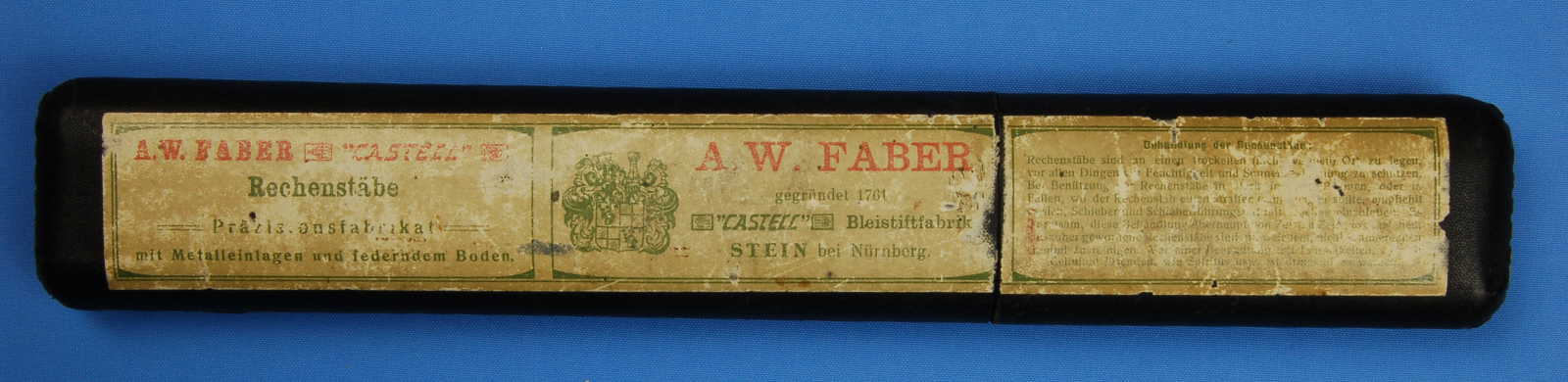

Large red/green on white advertising label on back.
Possible remnant of model number on right end.
|
|
Detail Images
|
|
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
|
Click on the images for enlargements.

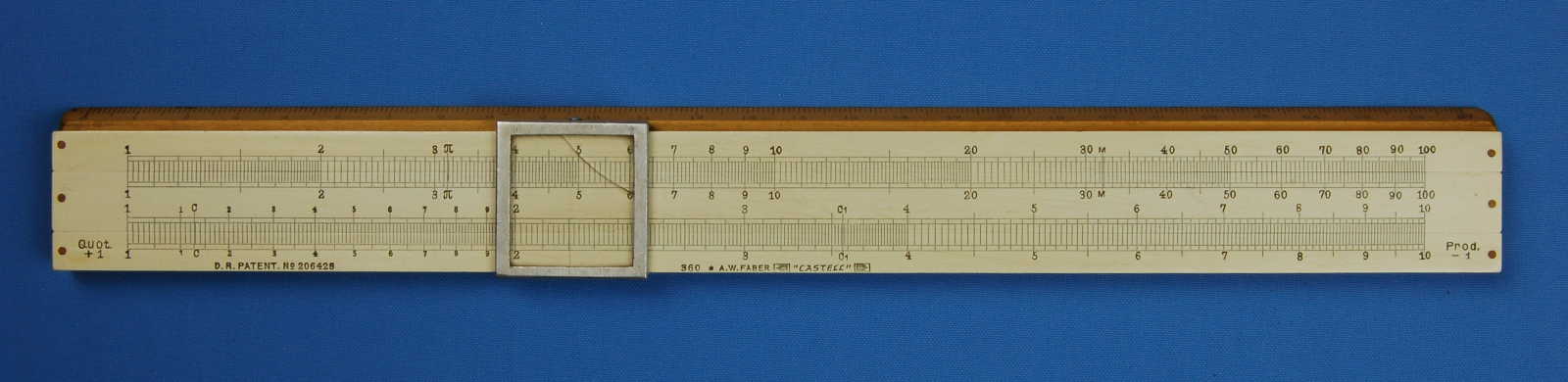

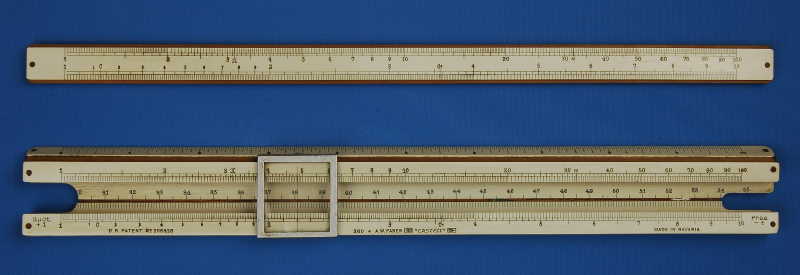

A W Faber "Castell" 360 (1922) |
|
|
Summary
|
|
System:
|
Enhanced Mannheim
|
|
Specialization:
|
-
|
|
Type:
|
Closed frame
|
|
Material:
|
Pearwood
|
|
Facings:
|
Celluliod
|
|
Scale Length:
|
25cm
|
No of Scales:
|
7
|
|
Front Length:
|
280mm
|
Front Width:
|
27.5mm
|
|
Language:
|
English
|
Origin:
|
Bavaria
|
|
Date:
|
1922
|
|
Features/Notes:
|
|
|
Scales (colours as shown)
|
|
Front:
|
A [ B, C ] D
|
Back:
|
[ S, L, T ]
|
|
Labels Left:
|
-
|
Labels Left:
|
All, as scales
|
|
Labels Right:
|
-
|
Labels Right:
|
All, as scales
|
|
Style:
|
Railway track (double)
|
Typeface:
|
Serif
|
|
Extensions:
|
-
|
Decimals:
|
Units between 1 & 2 on C & D
|
|
Gauge Marks:
|
p (3.14) on A & B
M (1/p=0.318) on A & B
C (1.13) on C & D
C1 (3.57) on C & D
|
Rulers:
|
inch on top edge
cm on bottom edge
cm continuation in well for longer measurements
|
|
Features/Notes:
|
-
|
|
Construction
|
|
Stock:
|
2 part split stock joined with steel springs (DRGM 522689, 1912; DRGM 452965, 1911).
Braced with longitudinal metal strips (DRP 206428, 1908).
Left and right viewing cutouts with index marks, in back for reverse of slide.
Bevelled top edge, square bottom edge.
High cursor grooves both cut parallel to front face.
Shallow rebate in back .
Front, well, top and bottom edges celluloid faced, secured with wooden pins (DRGM 371190, 1908).
Length x Width x Height (mm) - 280 x 33 x 10
|
|
Slide:
|
Double sided
Braced with longitudinal metal strips (DRP 206428, 1908)
Celluliod faced on both sides, secured with wooden pins (DRGM 371190, 1908)
Front face width (mm) - 11.5
|
Cursor:
|
Aluminium frame, glass pane.
Square window.
Centre riveted steel spring on top runner.
Single central full length hairline.
Width x Height (mm) - 29 x 30
|
|
Printing (colours as shown)
|
|
Stock:
|

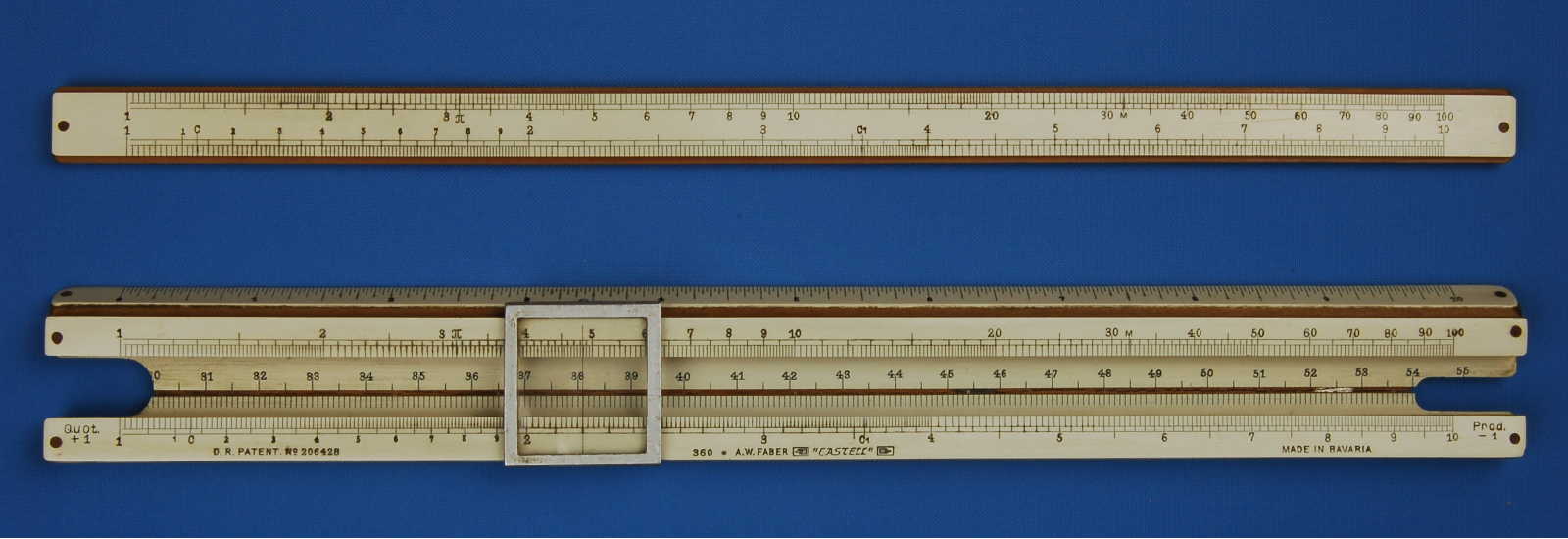

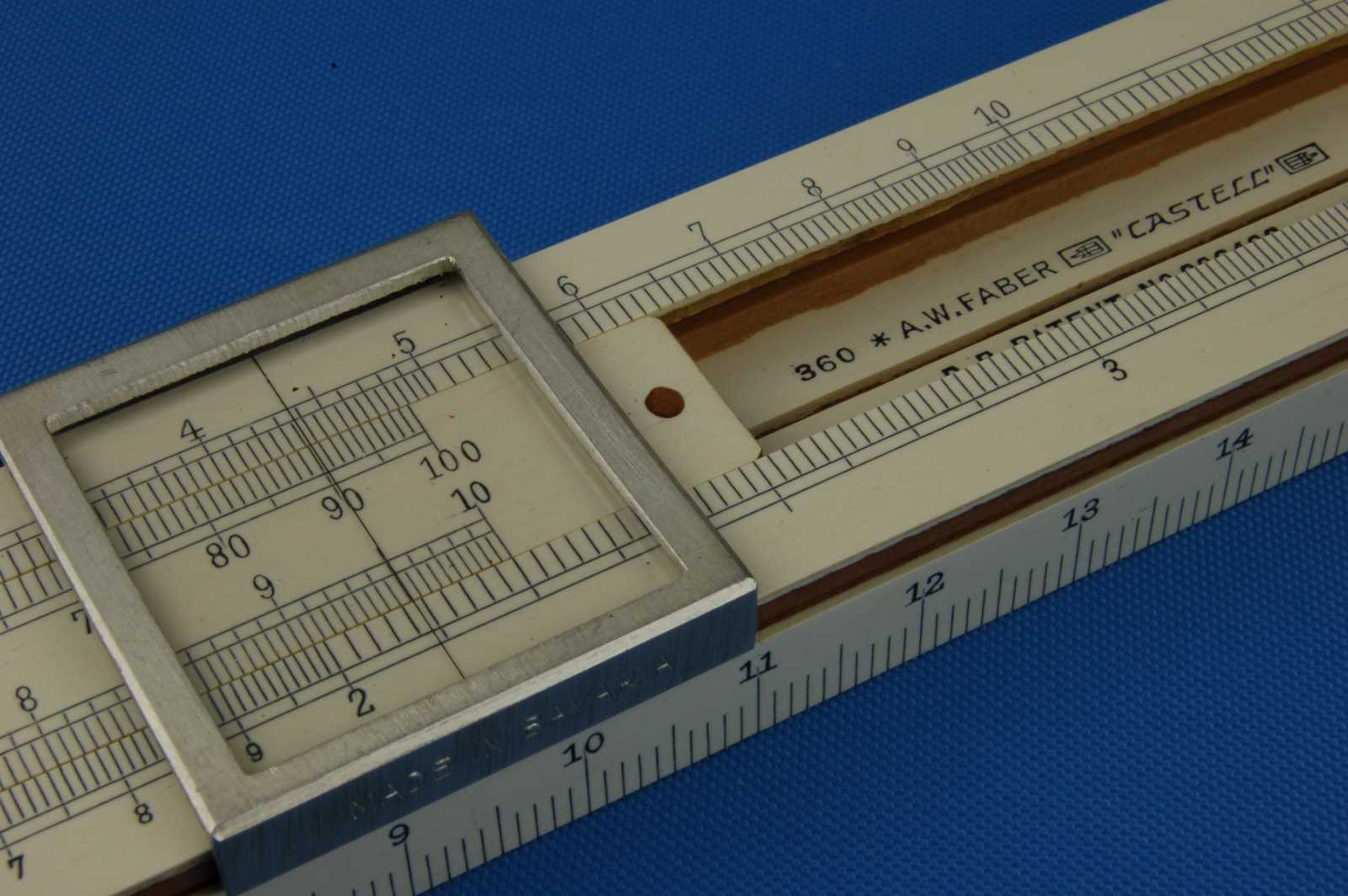

"360 * A.W. FABER" + ""CASTELL"" between lying castles on front lower rail in the centre, sans-serif.
"D.R.PATENT.No 206428." towards the left end of the front lower rail, sans-serif.
"Quot. +1" and "Prod. -1" on the left and right ends respectively of the front lower stock rail, sans-serif.
"MADE IN BAVARIA." towards the right end of the front lower rail, sans-serif.
|
|
Slide:
|
-
|
|
Cursor:
|
-
|
|
Labels:
|
On back, paper table featuring conversions and mathematical and physical constants.
|
|
Instructions
|
|
None
|
|
Box (colours as shown)
|
|
Style:
|
|
L x W x D mm:
|
295 x 45 x 27
|
|
Material:
|
Cardboard
|
Colour:
|
Black
|
|
Construction:
|
2 part, internal sleeve join.
Faced.
Metal braced ends.
|
|
Printing:
|
"A.W. FABER." and underneath "D.R.P. No 206428" impressed on the front.
|
|
Labels:
|
Large red/green on white advertising label on back.
Ends damaged.
|
|
Detail Images
|
|
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
|
Click on the images for enlargements.
A W Faber "Castell" 360 (1927) |
|
|
Summary
|
|
System:
|
Enhanced Mannheim
|
|
Specialization:
|
-
|
|
Type:
|
Closed frame
|
|
Material:
|
Pearwood
|
|
Facings:
|
Celluliod
|
|
Scale Length:
|
25cm
|
No of Scales:
|
7
|
|
Front Length:
|
280mm
|
Front Width:
|
27.5mm
|
|
Language:
|
English
|
Origin:
|
Bavaria
|
|
Date:
|
1927, June
|
|
Features/Notes:
|
-
|
|
Scales (colours as shown)
|
|
Front:
|
A [ B, C ] D
|
Back:
|
[ S, L, T ]
|
|
Labels Left:
|
-
|
Labels Left:
|
All, as scales
|
|
Labels Right:
|
-
|
Labels Right:
|
All, as scales
|
|
Style:
|
Railway track (double)
|
Typeface:
|
Serif
|
|
Extensions:
|
-
|
Decimals:
|
Units between 1 & 2 on C & D
|
|
Gauge Marks:
|
p (3.14) on A & B
M (1/p=0.318) on A & B
C (1.13) on C & D
C1 (3.57) on C & D
|
Rulers:
|
inch on top edge
cm on bottom edge
|
|
Features/Notes:
|
-
|
|
Construction
|
|
Stock:
|
2 part split stock joined with steel springs (DRGM 522689, 1912; DRGM 452965, 1911).
Braced with longitudinal metal strips (DRP 206428, 1908).
Left and right viewing cutouts with index marks, in back for reverse of slide.
Bevelled top edge, square bottom edge.
High cursor grooves both cut parallel to front face.
Shallow rebate in back .
Front, well, top and bottom edges celluloid faced, secured with wooden pins (DRGM 371190, 1908).
Length x Width x Height (mm) - 280 x 34 x 11
|
|
Slide:
|
Double sided
Braced with longitudinal metal strips (DRP 206428, 1908)
Celluliod faced on both sides, secured with wooden pins (DRGM 371190, 1908)
Front face width (mm) - 12
|
Cursor:
|
Aluminium frame, glass pane.
Square window.
Left end riveted steel spring on top runner.
Single central full length hairline.
Width x Height (mm) - 29 x 31
|
|
Printing (colours as shown)
|
|
Stock:
|
"360 * A.W. FABER" + ""CASTELL"" between lying castles in the centre of the well above the split, sans-serif.
"D.R.PATENT.No 206428." in centre of the well below the split, sans-serif.
"MADE IN BAVARIA." on the top centre of the back, sans-serif.
"Quot. +1" and "Prod. -1" on the left and right ends respectively of the front lower stock rail, sans-serif.
|
|
Slide:
|
-
|
|
Cursor:
|
"MADE IN BAVARIA" stamped on the bottom edge, sans-serif.
|
|
Labels:
|

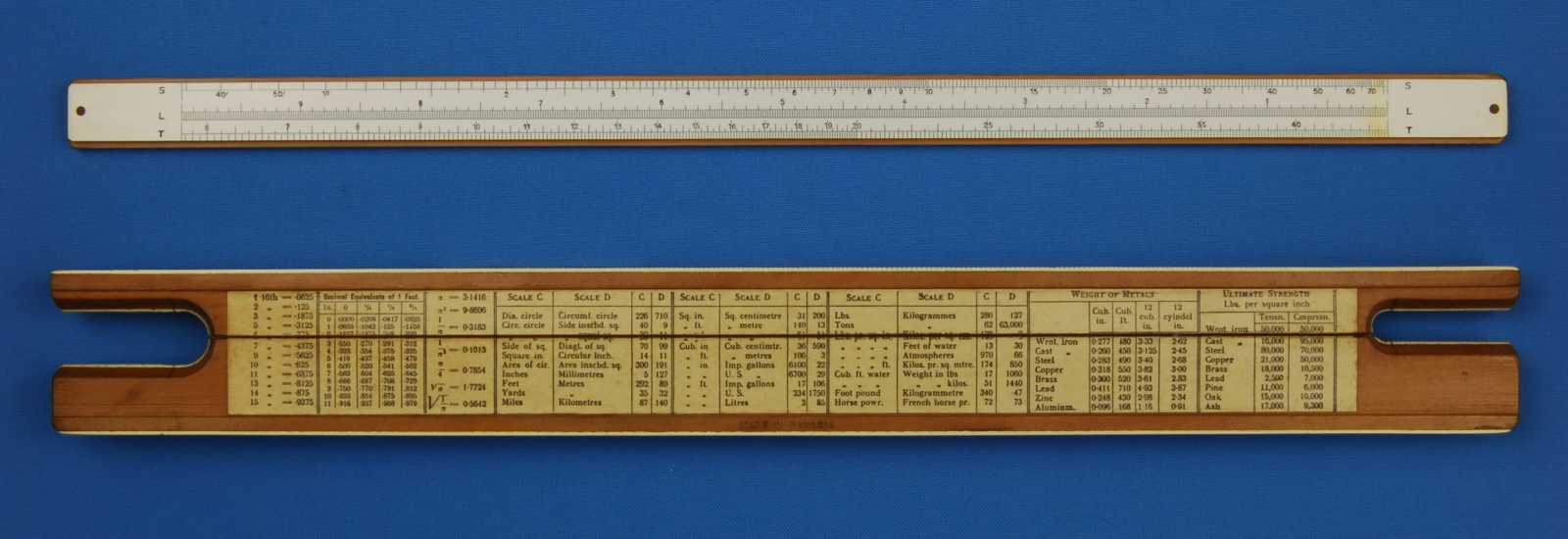

On back, paper table featuring conversions and mathematical and physical constants.
|
|
Instructions
|
|
The rule came with "Precision Calculating Rules" instructions for "No. 360", "363", "369" & "389", believed to be those originally supplied with the rule, which can be seen here.
|
|
Box (colours as shown)
|
|
Style:
|
Rounded
|
L x W x D mm:
|
328 x 45 x 20
|
|
Material:
|
Cardboard
|
Colour:
|
Black
|
|
Construction:
|
2 part, internal sleeve join.
Faced.
|
|
Printing:
|
"A.W. FABER" and smaller underneath "D.R.P. No 206428" on the front.
|
|
Labels:
|
Large red/green on white advertising label on back.

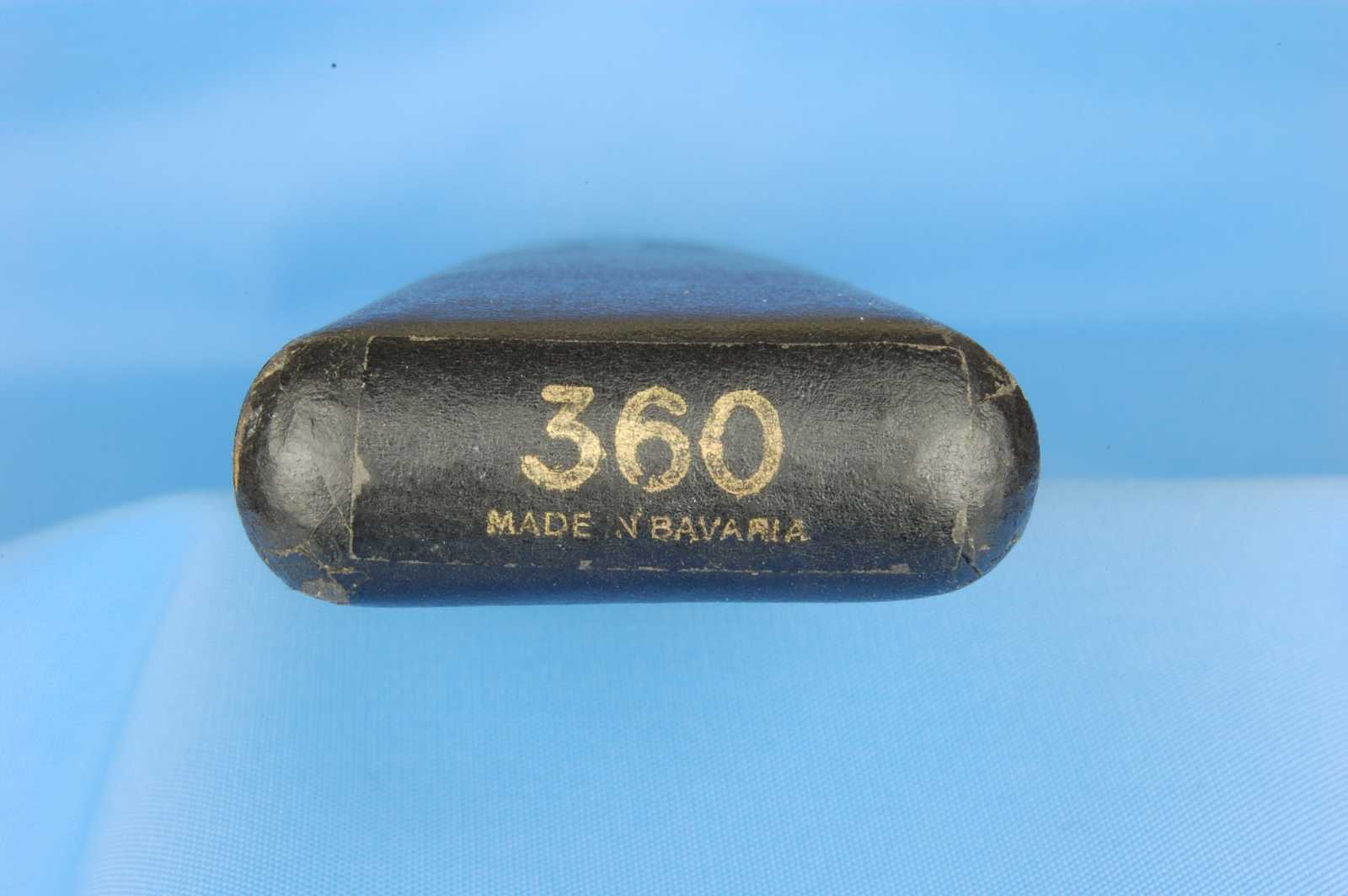

"360" and "MADE IN BAVARIA" smaller underneath on black, on right end.
|
|
Detail Images
|
|
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
|
Click on the images for enlargements.

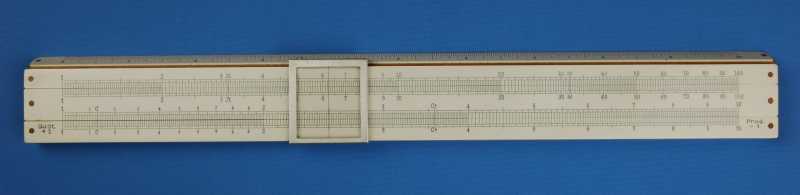

A W Faber "Castell" 360 (1929) |
|
|
Summary
|
|
System:
|
Enhanced Mannheim
|
|
Specialization:
|
-
|
|
Type:
|
Closed frame
|
|
Material:
|
Pearwood
|
|
Facings:
|
Celluliod
|
|
Scale Length:
|
25cm
|
No of Scales:
|
7
|
|
Front Length:
|
280mm
|
Front Width:
|
27.5mm
|
|
Language:
|
English
|
Origin:
|
Bavaria
|
|
Date:
|
1929, July
|
|
Features/Notes:
|
-
|
|
Scales (colours as shown)
|
|
Front:
|
A [ B, C ] D
|
Back:
|
[ S, L, T ]
|
|
Labels Left:
|
-
|
Labels Left:
|
All, as scales
|
|
Labels Right:
|
-
|
Labels Right:
|
All, as scales
|
|
Style:
|
Railway track
|
Typeface:
|
Serif
|
|
Extensions:
|
-
|
Decimals:
|
Units between 1 & 2 on C & D
|
|
Gauge Marks:
|
p (3.14) on A & B
M (1/p=0.318) on A & B
C (1.13) on C
C1 (3.57) on C
|
Rulers:
|
inch on top edge
cm on bottom edge
|
|
Features/Notes:
|
-
|
|
Construction
|
|
Stock:
|
2 part split stock joined with steel springs (DRGM 522689, 1912; DRGM 452965, 1911).
Braced with longitudinal metal strips (DRP 206428, 1908).
Left and right viewing cutouts with index marks, in back for reverse of slide.
Bevelled top edge, square bottom edge.
High cursor grooves both cut parallel to front face.
Shallow rebate in back .
Front, well, top and bottom edges celluloid faced, secured with wooden pins (DRGM 371190, 1908).
Length x Width x Height (mm) - 280 x 34 x 11
|
|
Slide:
|
Double sided
Braced with longitudinal metal strips (DRP 206428, 1908)
Celluliod faced on both sides, secured with wooden pins (DRGM 371190, 1908)
Front face width (mm) - 12
|
Cursor:
|
Aluminium frame, glass pane.
Square window.
Left end riveted steel spring on top runner.
Single central full length hairline.
Width x Height (mm) - 29 x 31
|
|
Printing (colours as shown)
|
|
Stock:
|
"360" +scales logo + "A.W. FABER" + ""CASTELL"" between lying castles in the centre of the well above the split, sans-serif.
"D.R.PATENT.No 206428." in centre of the well below the split, sans-serif.
"MADE IN BAVARIA." on the top centre of the back, sans-serif.
"Quot. +1" and "Prod. -1" on the left and right ends respectively of the front lower stock rail, sans-serif.
|
|
Slide:
|
-
|
|
Cursor:
|
"MADE IN BAVARIA" stamped on the bottom edge, sans-serif.
|
|
Labels:
|

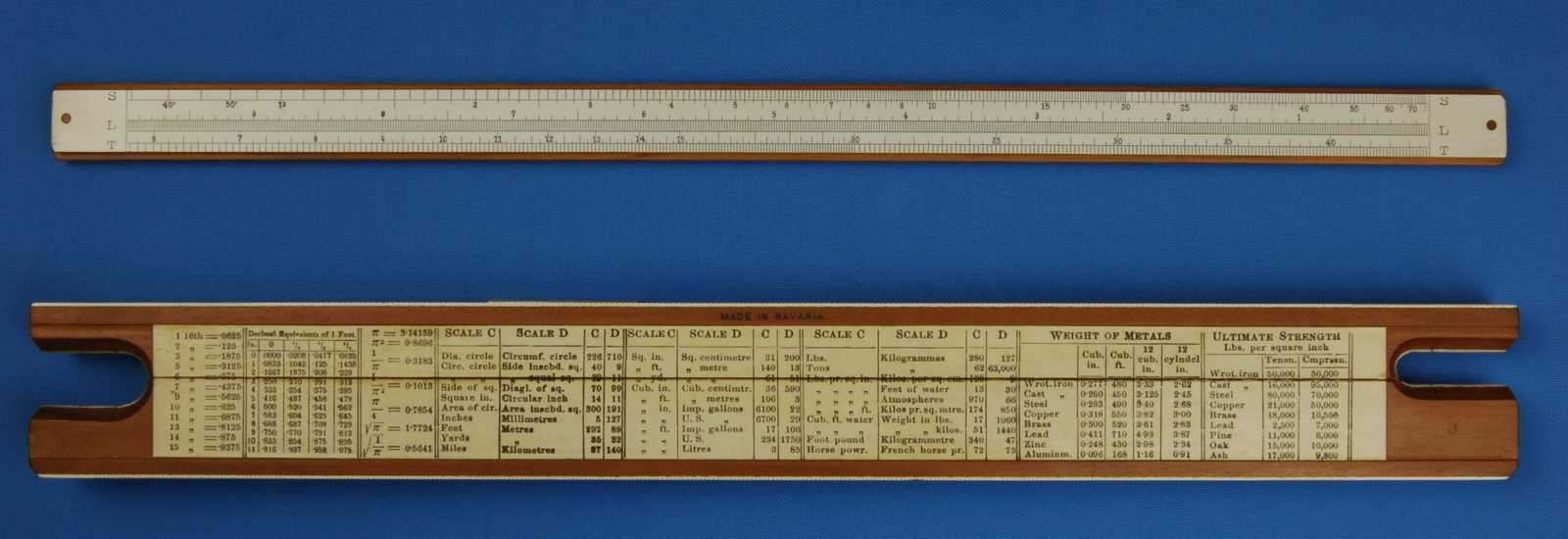

On back, paper table featuring conversions and mathematical and physical constants.
|
|
Instructions
|
|
None
|
|
Box (colours as shown)
|
|
Style:
|
Wooden Sleave
|
L x W x D mm:
|
325 x 44 x 19
|
|
Material:
|
Wood
|
Colour:
|
Black
|
|
Construction:
|
Wooden box sleave, faced.
Wooden 'plug' cap with brass push-in catch.
|
|
Printing:
|
"A.W. FABER" and smaller underneath "D.R.P. No 206428" + scales logo + "D.R.G.M. 985225" on the front.
|
|
Labels:
|
None
|
|
Detail Images
|
|
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
|
Click on the images for enlargements.

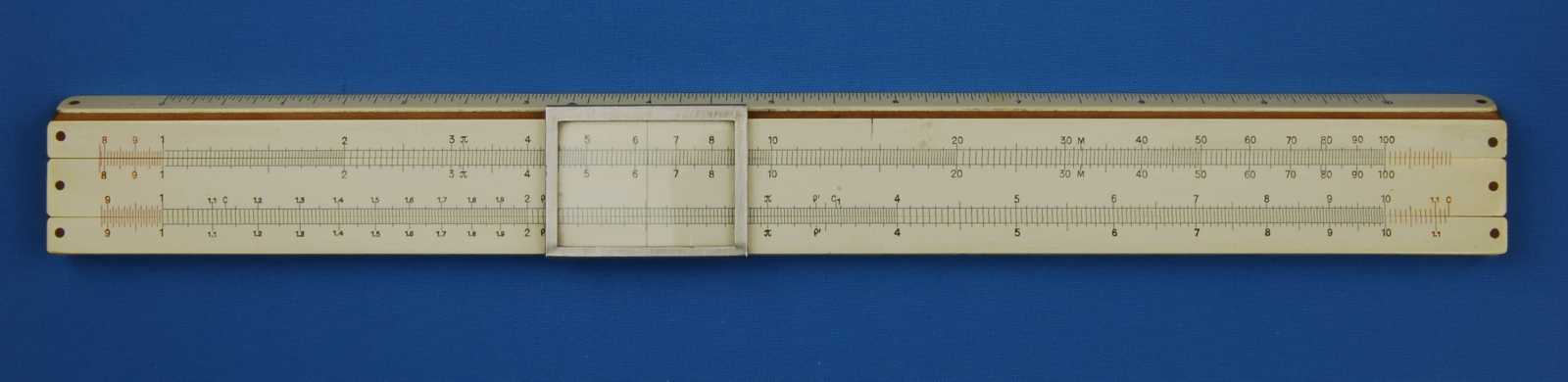

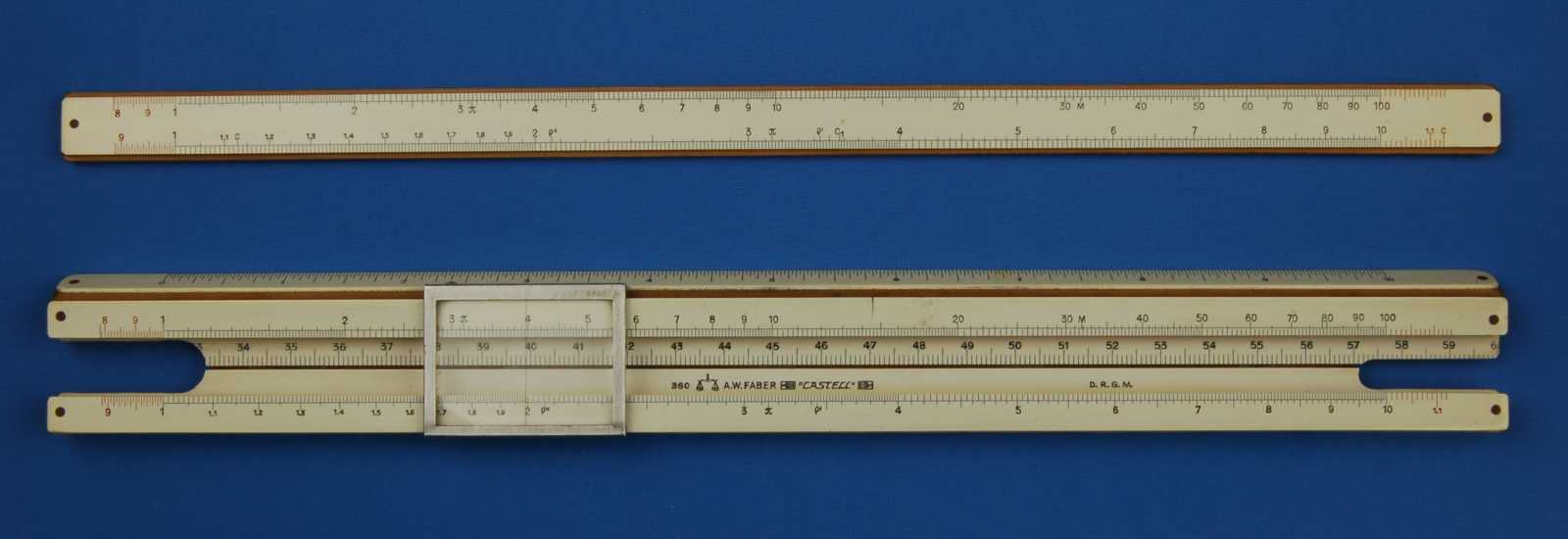

A W Faber "Castell" 360 (19351) |
|
|
Summary
|
|
System:
|
Enhanced Mannheim
|
|
Specialization:
|
-
|
|
Type:
|
Closed frame
|
|
Material:
|
Pearwood
|
|
Facings:
|
Celluliod
|
|
Scale Length:
|
25cm
|
No of Scales:
|
7
|
|
Front Length:
|
300mm
|
Front Width:
|
27.5mm
|
|
Language:
|
English
|
Origin:
|
Bavaria
|
|
Date:
|
1935, July
|
|
Features/Notes:
|
-
|
|
Scales (colours as shown)
|
|
Front:
|
A [ B, C ] D
|
Back:
|
[ S, L, T ]
|
|
Labels Left:
|
-
|
Labels Left:
|
All, as scales
|
|
Labels Right:
|
-
|
Labels Right:
|
All, as scales
|
|
Style:
|
Railway track
|
Typeface:
|
Sans-serif
|
|
Extensions:
|
A, B, C & D beyond 1 & 10 in red
|
Decimals:
|
Tenths between 1 & 2 on C & D
|
|
Gauge Marks:
|
p (3.14) on A, B, C & D
M (1/p=0.318) on A & B
C (1.13) on C
C1 (3.57) on C
r" (2063) on C & D
r' (3438) on C & D
|
Rulers:
|
inch on top edge
cm on bottom edge
cm continuation in well above the split for longer measurements
|
|
Features/Notes:
|
-
|
|
Construction
|
|
Stock:
|
2 part split stock joined with steel springs (DRGM 522689, 1912; DRGM 452965, 1911).
Braced with longitudinal metal strips (DRP 206428, 1908).
Left and right viewing cutouts with index marks, in back for reverse of slide.
Bevelled top edge, square bottom edge.
High cursor grooves both cut parallel to front face.
Shallow rebate in back .
Front, well, top and bottom edges celluloid faced, secured with wooden pins (DRGM 371190, 1908).
Length x Width x Height (mm) - 300 x 34 x 11
|
|
Slide:
|
Double sided
Braced with longitudinal metal strips (DRP 206428, 1908)
Celluliod faced on both sides, secured with wooden pins (DRGM 371190, 1908)
Front face width (mm) - 12
|
Cursor:
|
Aluminium frame, glass pane.
Extra wide.
Square window.
Left end riveted steel spring on top runner.
Single central full length hairline.
Width x Height (mm) - 41 x 31
|
|
Printing (colours as shown)
|
|
Stock:
|

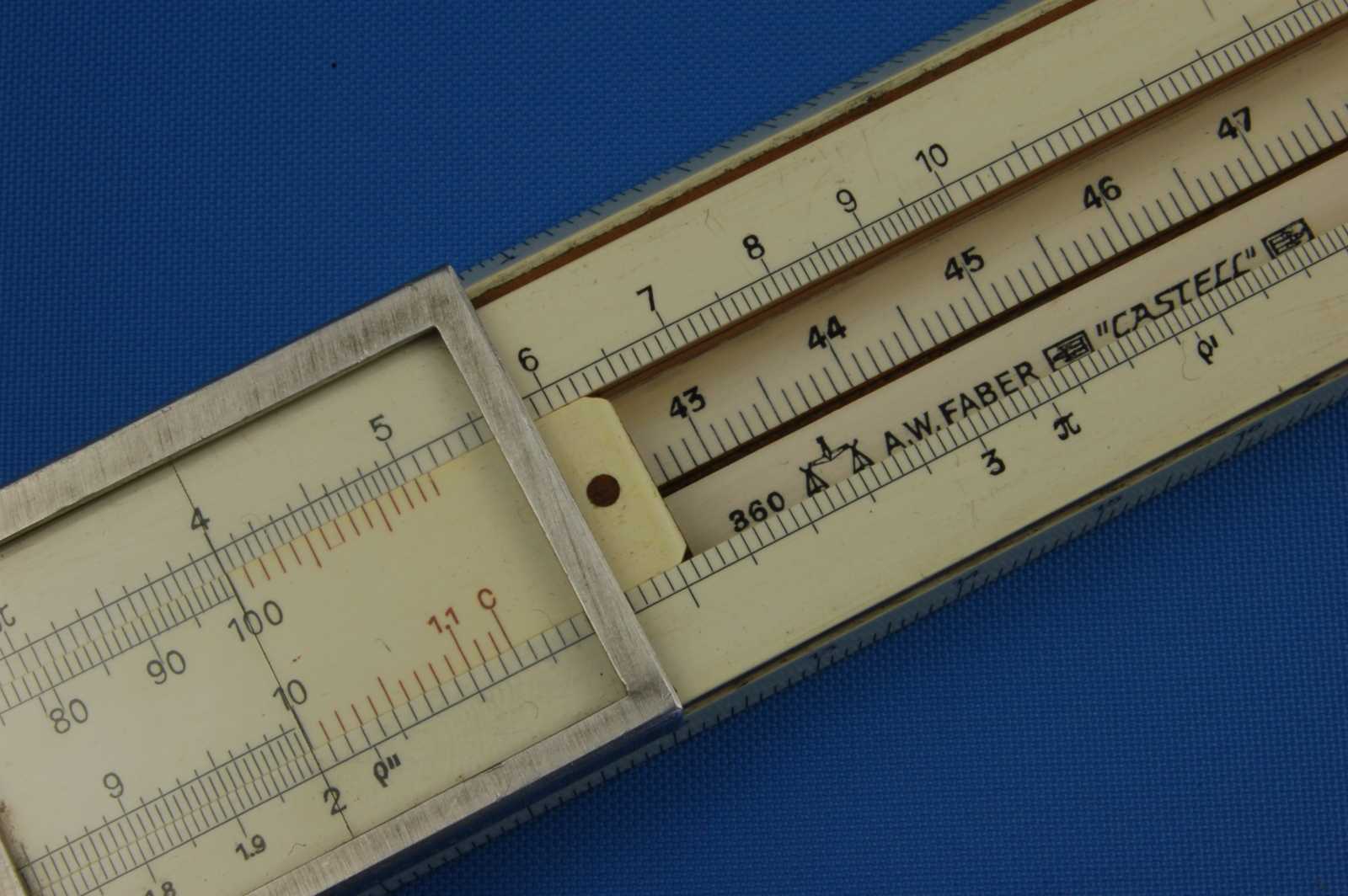

"360" + scales logo + "A.W. FABER" + ""CASTELL"" between lying castles in the centre of the well below the split, sans-serif.
"D.R.G.M." in the well below the split towards the right, sans-serif.
"MADE IN BAVARIA." stamped on the bottom centre of the back, sans-serif.
|
|
Slide:
|
-
|
|
Cursor:
|
"MADE IN BAVARIA" stamped on the bottom edge, sans-serif.
"1" stamped on the top edge
|
|
Labels:
|
On back, paper table featuring conversions and mathematical and physical constants.
|
|
Instructions
|
|
None
|
|
Box (colours as shown)
|
|
Style:
|
Square
|
L x W x D mm:
|
310 x 43 x 20
|
|
Material:
|
Cardboard
|
Colour:
|
Black
|
|
Construction:
|
2 part, internal sleeve join.
Faced.
|
|
Printing:
|
scales + "A.W. FABER" ""CASTELL"" logo on the front.
Round indentations on the front either side of the opening.
|
|
Labels:
|
"360" and "MADE IN BAVARIA" smaller underneath on black, on right end.
|
|
Detail Images
|
|
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
|
Click on the images for enlargements.

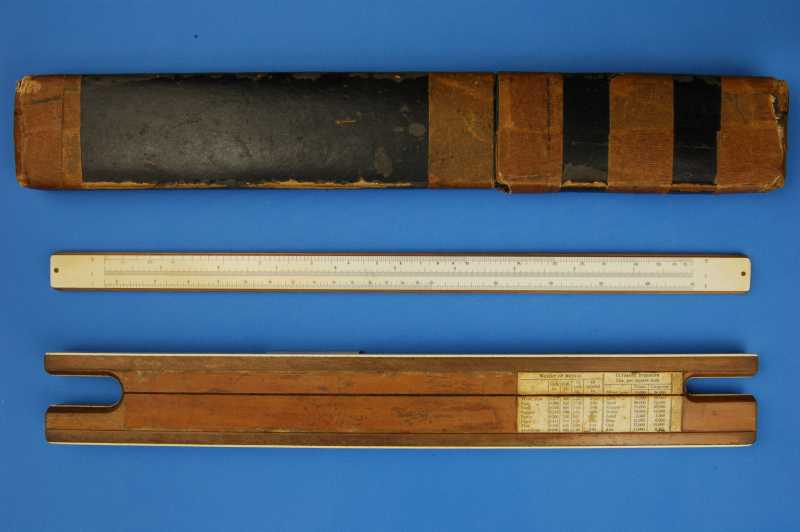

A W Faber "Castell" 1/60/360 (19352) |
|
|
Summary
|
|
System:
|
Enhanced Mannheim
|
|
Specialization:
|
-
|
|
Type:
|
Closed frame
|
|
Material:
|
Pearwood
|
|
Facings:
|
Celluliod
|
|
Scale Length:
|
25cm
|
No of Scales:
|
8
|
|
Front Length:
|
300mm
|
Front Width:
|
32mm
|
|
Language:
|
English
|
Origin:
|
Bavaria
|
|
Date:
|
1935, November
|
|
Features/Notes:
|
Model numbering continuation from '360'.
|
|
Scales (colours as shown)
|
|
Front:
|
A [ B, CI, C ] D
|
Back:
|
[ S, L, T ]
|
|
Labels Left:
|
-
|
Labels Left:
|
All, as scales
|
|
Labels Right:
|
-
|
Labels Right:
|
All, as scales
|
|
Style:
|
Railway track
|
Typeface:
|
Sans-serif
|
|
Extensions:
|
A, B, CI, C & D beyond 1 & 10 in red
|
Decimals:
|
Tenths between 1 & 2 on CI, C & D
|
|
Gauge Marks:
|
p (3.14) on A, B, CI, C & D
M (1/p=0.318) on A & B
C (1.13) on C
C1 (3.57) on C
r" (2063) on C & D
r' (3438) on C & D
|
Rulers:
|
inch on top edge
cm on bottom edge
cm continuation in well for longer measurements
|
|
Features/Notes:
|
-
|
|
Construction
|
|
Stock:
|
2 part split stock joined with steel springs (DRGM 522689, 1912; DRGM 452965, 1911).
Braced with longitudinal metal strips (DRP 206428, 1908).
Left and right viewing cutouts with index marks, in back for reverse of slide.
Bevelled top edge, square bottom edge.
High cursor grooves both cut parallel to front face.
Shallow rebate in back .
Front, well, top and bottom edges celluloid faced, secured with wooden pins (DRGM 371190, 1908).
Length x Width x Height (mm) - 300 x 39 x 11
|
|
Slide:
|
Double sided
Braced with longitudinal metal strips (DRP 206428, 1908)
Celluliod faced on both sides, secured with wooden pins (DRGM 371190, 1908)
Front face width (mm) - 14
|
Cursor:
|
Aluminium frame, glass pane.
Extra wide.
Square window.
Left end riveted steel spring on top runner.
Single central full length hairline.
Width x Height (mm) - 41 x 35
|
|
Printing (colours as shown)
|
|
Stock:
|

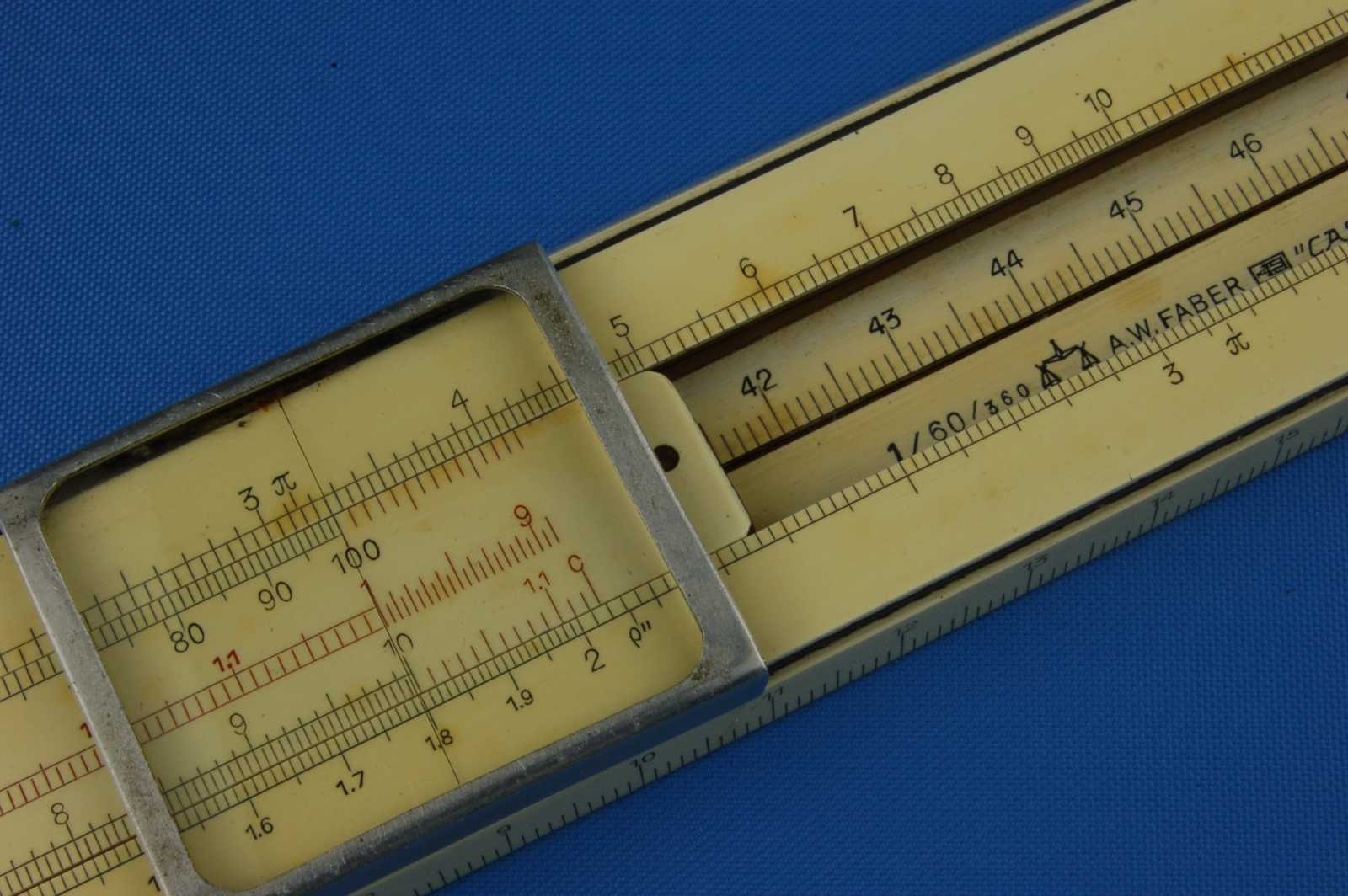

"1/60/360" + scales logo + "A.W. FABER" + ""CASTELL"" between lying castles in the centre of the well below the split, sans-serif.
"D.R.G.M." in the well below the split towards the right end, sans-serif.
"MADE IN GERMANY" stamped in the centre of the back at the bottom, sans-serif.
|
|
Slide:
|
-
|
|
Cursor:
|
"P.C.7 A" stamped at the left end of the top edge.
|
|
Labels:
|
On back, paper table featuring conversions and mathematical and physical constants (mostly missing).
|
|
Instructions
|
|
None
|
|
Box (colours as shown)
|
|
Style:
|
Square
|
L x W x D mm:
|
310 x 45 x 17
|
|
Material:
|
Cardboard
|
Colour:
|
Black
|
|
Construction:
|
2 part, internal sleeve join.
Faced.
|
|
Printing:
|
scales + "A.W. FABER" ""CASTELL"" logo on the front.
Round indentations on the front either side of the opening.
|
|
Labels:
|
"1/60" on black, on right end.
|
|
Detail Images
|
|
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
Click on the images for enlargements.
|
|
_2_b.jpg)
_2f_b.jpg){kind=small}
_2b_b.jpg){kind=small}
_2p_b.jpg)
_2q_b.jpg)
_2r_b.jpg)
_2s_b.jpg)
_b.jpg)
f_b.jpg)
b_b.jpg)
p_b.jpg)
q_b.jpg)
r_b.jpg)
_2x_c.jpg)
_2_c.jpg)
_2f_c.jpg)
_2b_c.jpg)
_2p_c.jpg)
_2q_c.jpg)
_2r_c.jpg)
_2s_c.jpg)
x_c.jpg)
_c.jpg)
f_c.jpg)
b_c.jpg)
p_c.jpg)
q_c.jpg)
r_c.jpg)
