A W Faber "Castell" 322
(25cm Scale, Business, Disponent)
Click on the images for enlargements.
A W Faber "Castell" 322 (1935) |
|
|
Summary
|
|
System:
|
Disponent [business]
|
|
Specialization:
|
Commercial
|
|
Type:
|
Closed frame
|
|
Material:
|
Pearwood
|
|
Facings:
|
Celluliod
|
|
Scale Length:
|
25cm
|
No of Scales:
|
5
|
|
Front Length:
|
300mm
|
Front Width:
|
30mm
|
|
Language:
|
German
|
Origin:
|
-
|
|
Date:
|
1935, May
|
|
Features/Notes:
|
-
|
|

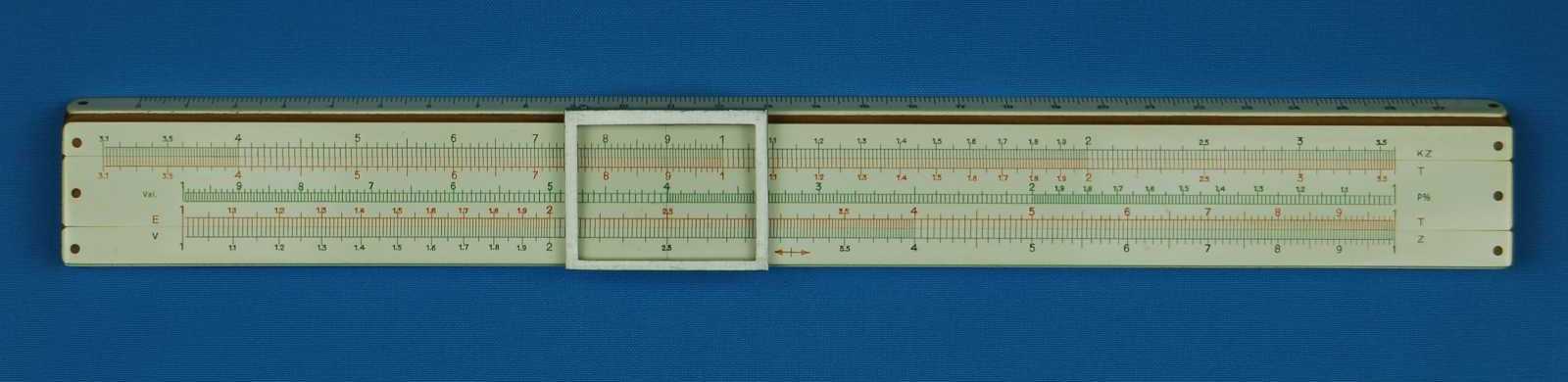

Scales (colours as shown)
|
|
Front:
|
DF [ CF, CI, C ] D
|
Back:
|
-
|
|
Labels Left:
|
[ , Val., E ] V
|
Labels Left:
|
-
|
|
Labels Right:
|
TK [ T, P%, T ] Z
|
Labels Right:
|
-
|
|
Style:
|
Railway track
|
Typeface:
|
Sans-serif
|
|
Extensions:
|
From 3.1 on CF & DF
|
Decimals:
|
Tenths between 1 & 2 on all scales
0.5's between 2 & 4 on all scales
|
|

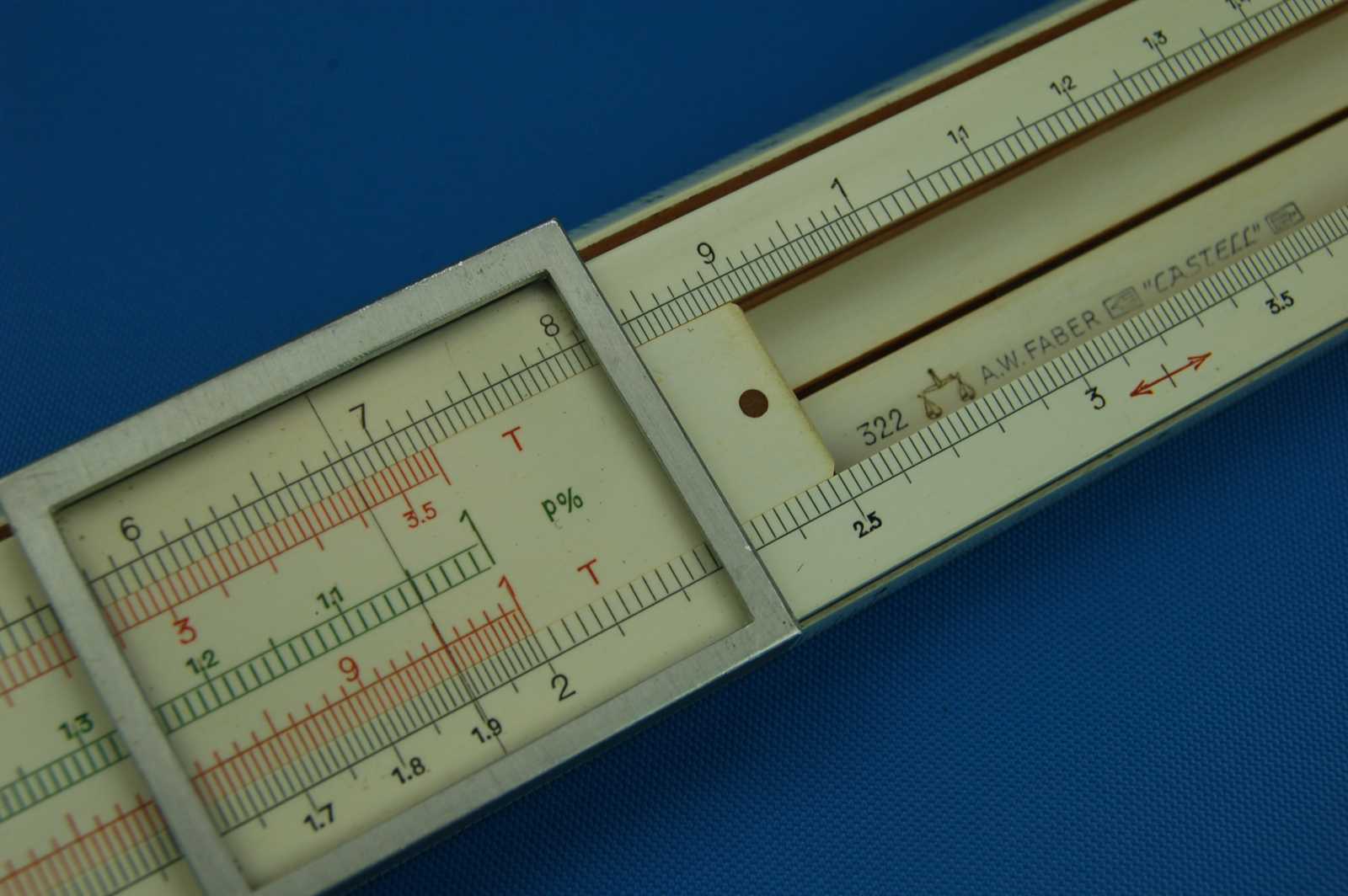

Gauge Marks:
|
Ö10 (3.16) below D, black mark with red arrows each way
|
Rulers:
|
cm on top edge
inch on bottom edge
|
|
Features/Notes:
|
CF & DF folded at 3.6
|
|
Construction
|
|
Stock:
|
2 part split stock joined with steel springs (DRGM 522689, 1912; DRGM 452965, 1911).
Braced with longitudinal metal strips (DRP 206428, 1908).
Bevelled top edge, square bottom edge.
High cursor grooves both cut parallel to front face.
Shallow rebate in back .
Front, well, top and bottom edges celluloid faced, secured with wooden pins (DRGM 371190, 1908).
Length x Width x Height (mm) - 300 x 30 x 10
|
|
Slide:
|
Single sided
Braced with longitudinal metal strips (DRP 206428, 1908)
Celluliod faced on both sides, secured with wooden pins (DRGM 371190, 1908)
Front face width (mm) - 13.5
|
Cursor:
|
Aluminium frame, glass pane.
Extra wide.
Square window.
Left end riveted steel spring on top runner.
Single central full length hairline.
Width x Height (mm) - 41 x 33
|
|
Printing (colours as shown)
|
|
Stock:
|

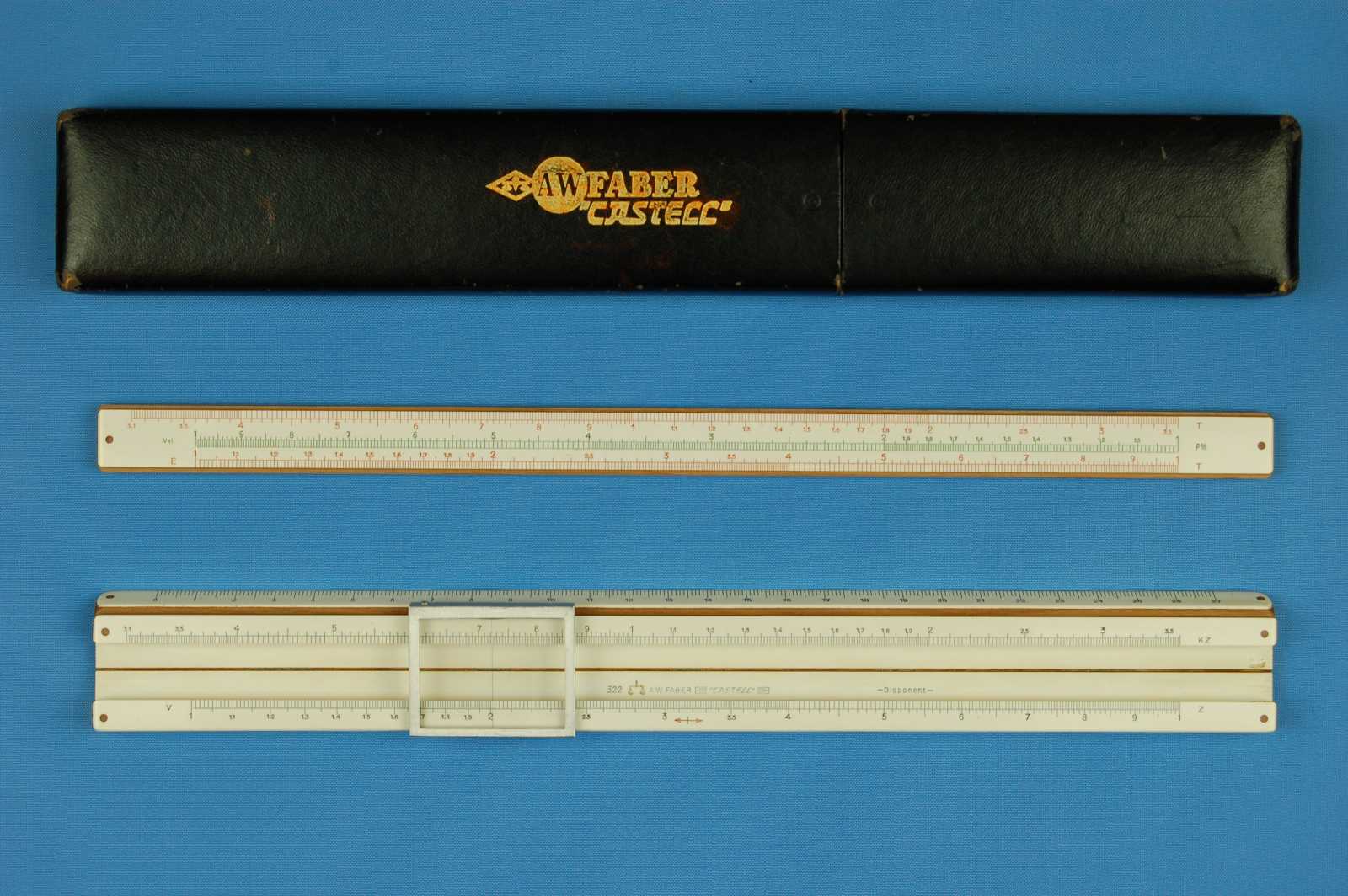

"322" + scales logo + "A.W. FABER" + ""CASTELL"" between lying castles in centre of well below the split , sans-serif.
"- Disponent -" in well towards the right below the split, sans-serif.
|
|
Slide:
|
-
|
|
Cursor:
|
-
|
|
Labels:
|

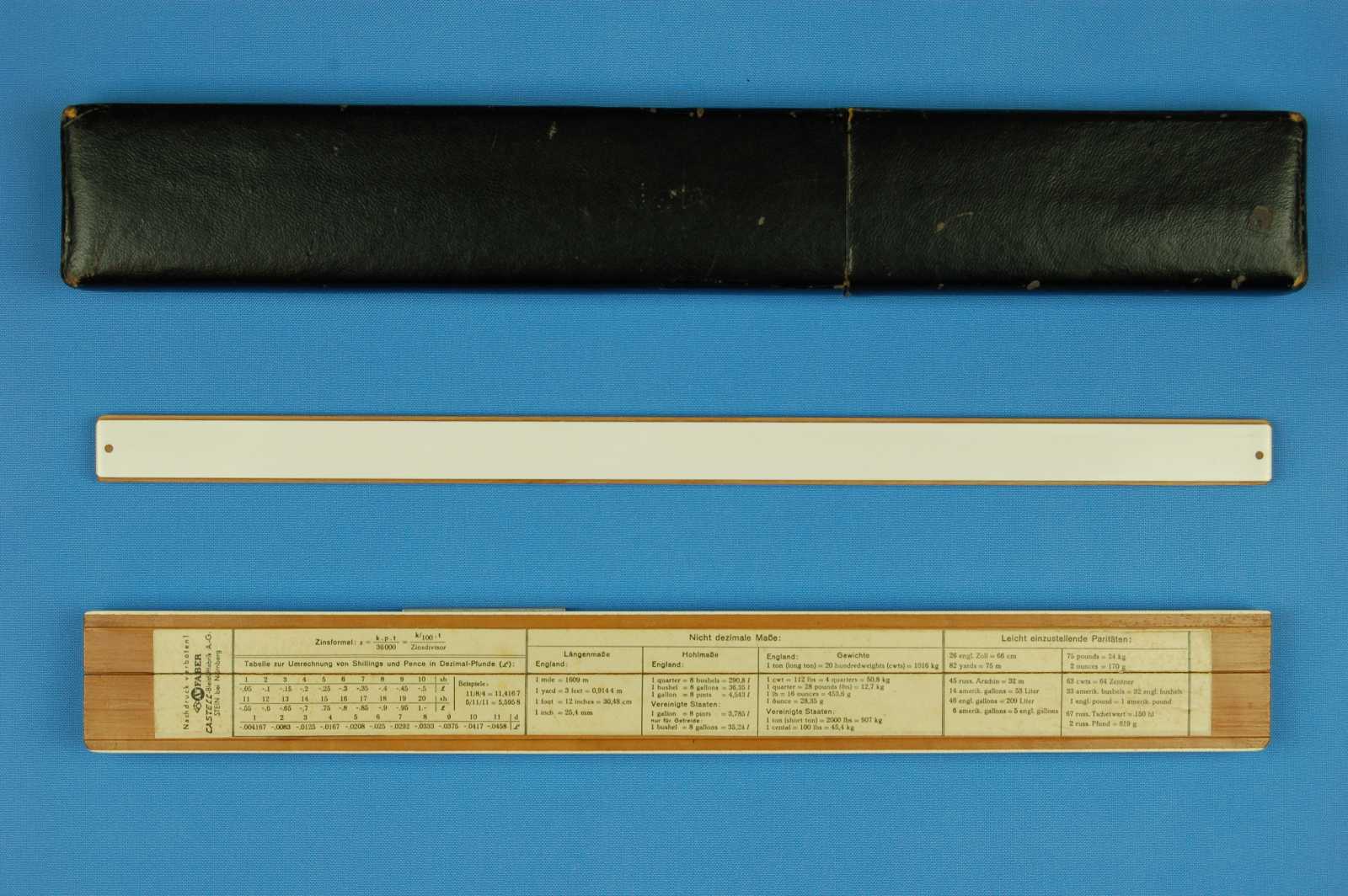

On back, paper table featuring conversions.
Title - "Nachdruck verboten!", scales logo + "AW FABER", "CASTELL Bleistiftfabrik A.-G.", "STEIN bie Nurnburg"
|
|
Instructions
|
|
None
|
|
Box (colours as shown)
|
|
Style:
|
Square
|
L x W x D mm:
|
310 x 45 x 17
|
|
Material:
|
Cardboard
|
Colour:
|
Black
|
|
Construction:
|
2 part, internal sleeve join.
Faced.
|
|
Printing:
|
scales + "A.W. FABER" ""CASTELL"" logo on the front.
Round indentations on the front either side of the opening.
|
|
Labels:
|

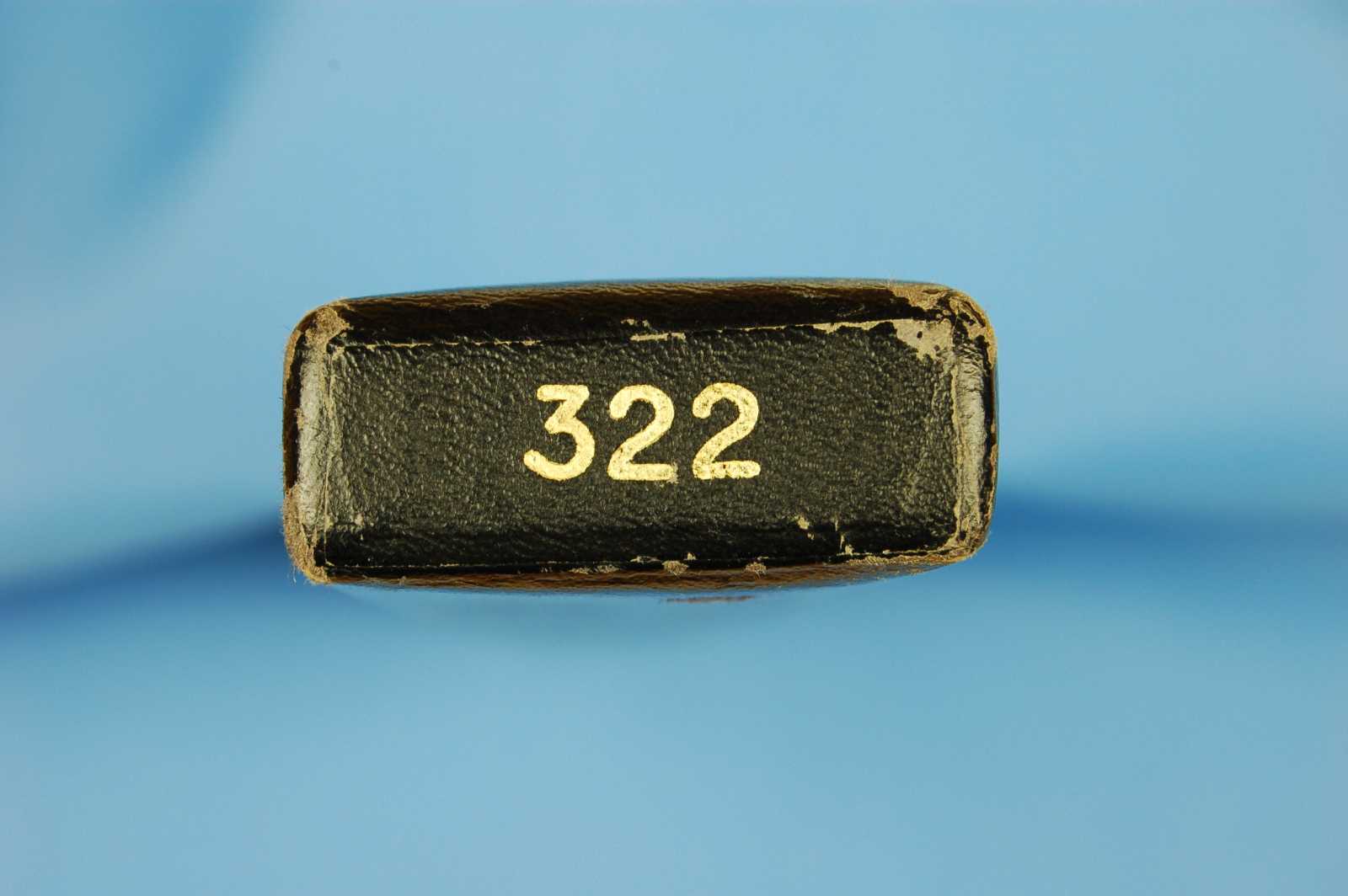

"322" on black, on right end.
|
|
