A W Faber & A W Faber "Castell" 378

`(25cm Scale, Electro) Examples: c1911-13, 1932`

<< Back to Models Summary

Version Comparison

Early and late versions of the model fully detailed below, differences summarised as follows:

Click on a column heading to jump down to version images and detailed description.

	`c1910-13`	`1932`
Branding:	AW Faber	AW Faber "Castell"
Material:	Boxwood	Pearwood
No. of Scales:	11	12
Scales Front:	LL₂, A [ B, C ] D, LL₃	LL₂, A [ B, §₁, C ] D, LL₃
Typeface:	Serif	Sans-serif
Scale Extensions:	-	Red
p Gauge Mark:	A & B	A, B, C & D
C & C₁ Gauge Marks:	C & D	C
28.7 Gauge Mark:	A & B	-
r"' & r' Gauge Marks:	-	C & D
W Gauge Mark:	-	D
R Gauge Mark:	-	D
W index for LL₁ & LL₂:	C	-
A Scale Labelling:	"K.W." right end	"10 Amp." left end, "KW" right end
B Scale Labelling:	"mm²" left end, "H.P." right end	"10 Yd. 10000 circ.mil." left end, "HP" right end
Red Scales & Labelling:	-	Volt Scale
Stock Flex:	Celluloid sprung	Steel sprung
Slide Springs:	In groove	-
Width x Height:	37 x 10mm	39 x 11mm
Slide Length:	284mm	288mm
Slide Index Edge Fixing:	1 rivet	2 rivets
Cursor Hairlines:	1	3 (unequal)
Cursor Spring:	centre rivet	Left rivet
Brand & Model:	Front, centre bottom	Well, right
"*" or "Scales":	*	Scales
DRP/DRGM Labelling:	Full text, front centre bottom	Abbreviated text, well right
Origin Labelling:	Front, centre bottom	Back, centre bottom
Tracking Nmemonics:	Short text	-

^^ Top ^^

<< Back to Model Type

Click on the images for enlargements.

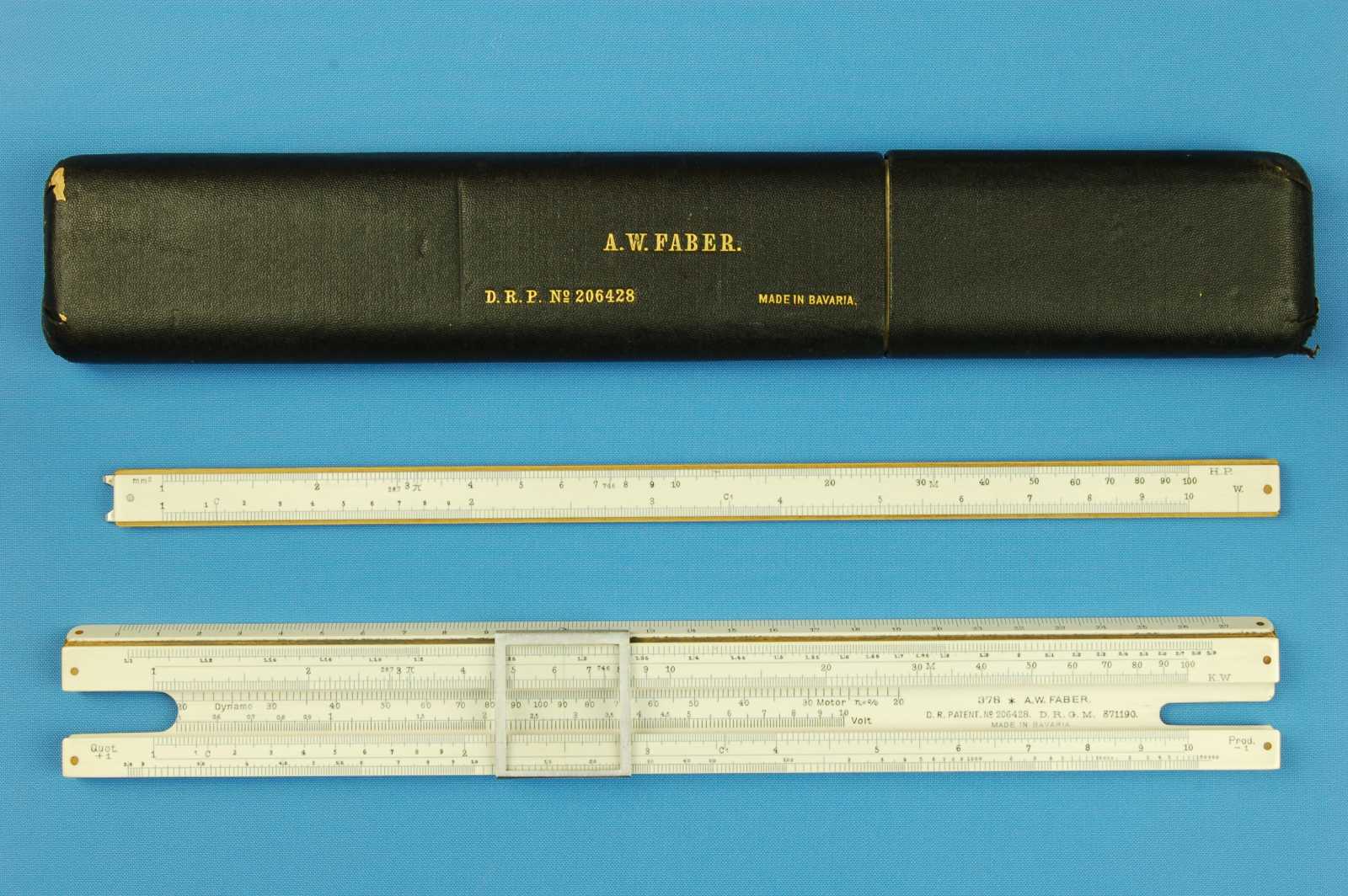

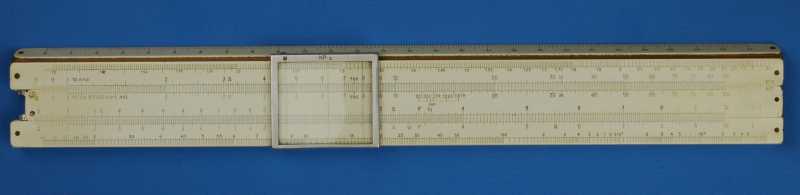

A W Faber 378 `(c1911-13)`

		Summary
		System:	Electro
		Specialization:	Electrical & Mechanical Engineers
		Type:	Closed frame
		Material:	Boxwood
		Facings:	Celluliod
		Scale Length:	25cm	No of Scales:	11
		Front Length:	295mm	Front Width:	32mm
		Language:	English	Origin:	Bavaria
		Date:	c1911-13
Features/Notes:	-
Scales (colours as shown)
Front:	LL₂, A [ B, C ] D, LL₃	Back:	[ S, L, T ]
Labels Left:	-	Labels Left:	All, as scales
Labels Right:	-	Labels Right:	All, as scales
Style:	Railway track	Typeface:	Serif
Extensions:	-	Decimals:	As units between 1 & 2 on C & D
Gauge Marks:	p (3.14) on A & B M (1/p=0.318) on A & B C (1.13) on C & D C₁ (3.57) on C & D 28.7 on A & B 746 on A & B W index on C for LL₂ & LL₃	Rulers:	cm on top edge inch on bottom edge
Features/Notes:	"Dynamo"/"Motor n=%" and "Volt" scales, labelled, in the well.
Construction

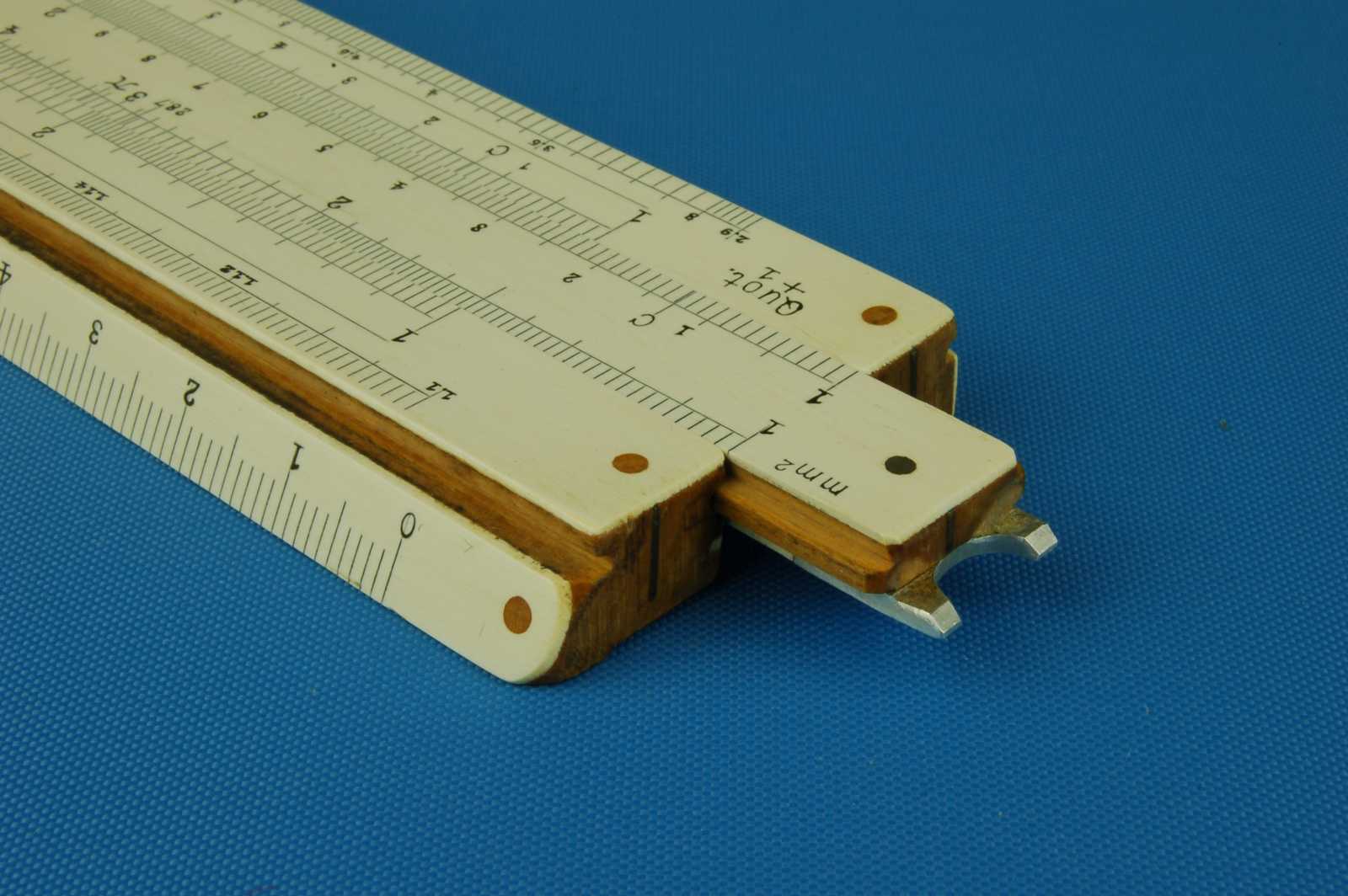

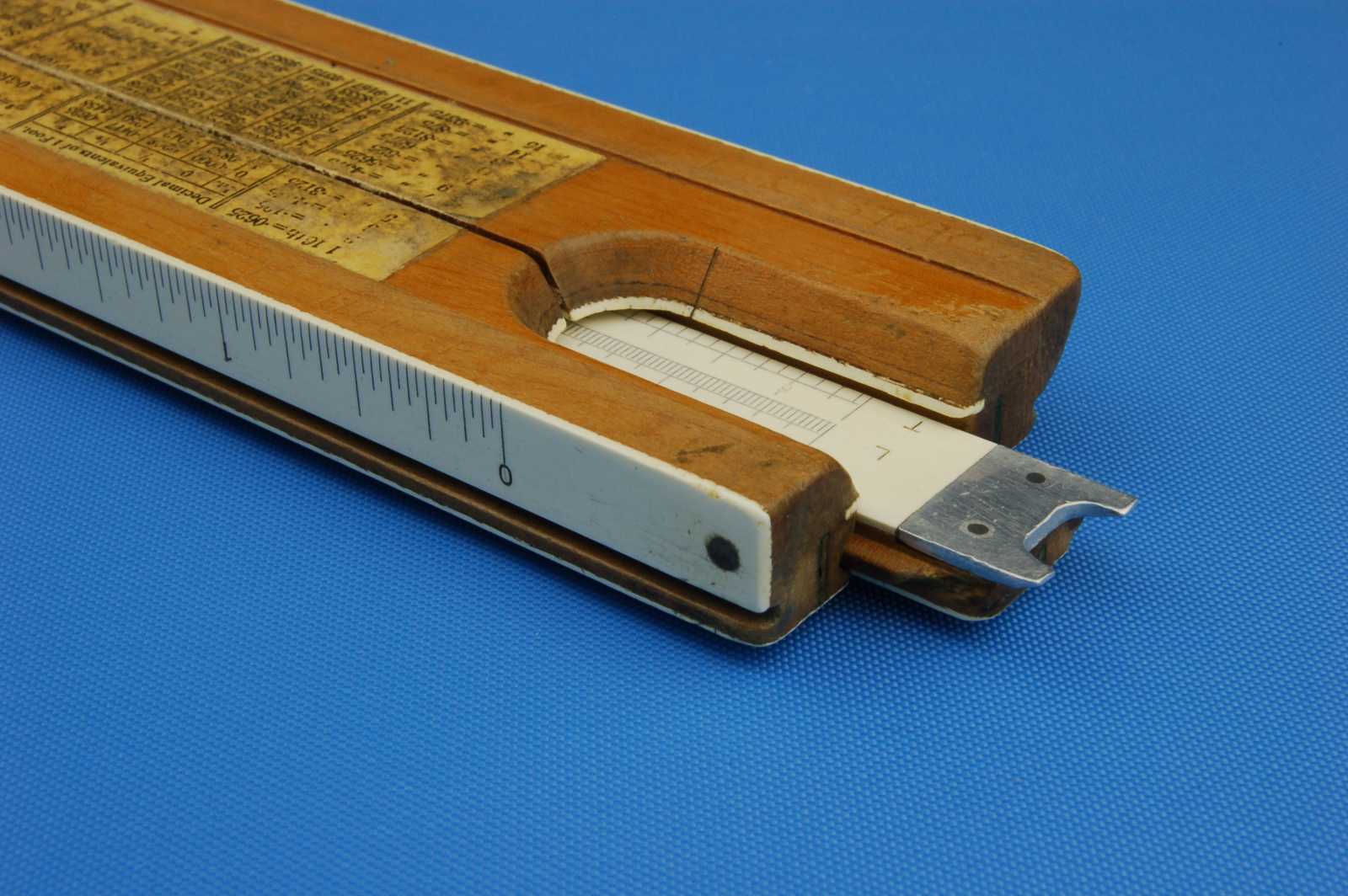

Stock:	2 part split stock joined with celluloid (DRGM 306107, 1907). Braced with longitudinal metal strips (DRP 206428, 1908). Boxwood springs in the well, in the slide groove of the upper rail of the stock (DRGM 98350, 1898). Left and right viewing cutouts with index marks, in back for reverse of slide. Bevelled top edge, square bottom edge. High cursor grooves both cut parallel to front face. Shallow rebate in back . Front, well, top and bottom edges celluloid faced, secured with wooden pins (DRGM 371190, 1908). Length x Width x Height (mm) - 295 x 37 x 10
Slide:	Double sided Braced with longitudinal metal strips (DRP 206428, 1908) Aluminium index edge at the left end (DRGM 247514, 1905) secured with one rivet. Celluliod faced on both sides, secured with wooden pins (DRGM 371190, 1908) Shorter than stock, front face length x width (mm) - 280 x 11.5	Cursor:	Aluminium frame, glass pane. Square window. Centre riveted steel spring on top runner (broken). Single central full length hairline. Width x Height (mm) - 33 x 35
Printing (colours as shown)

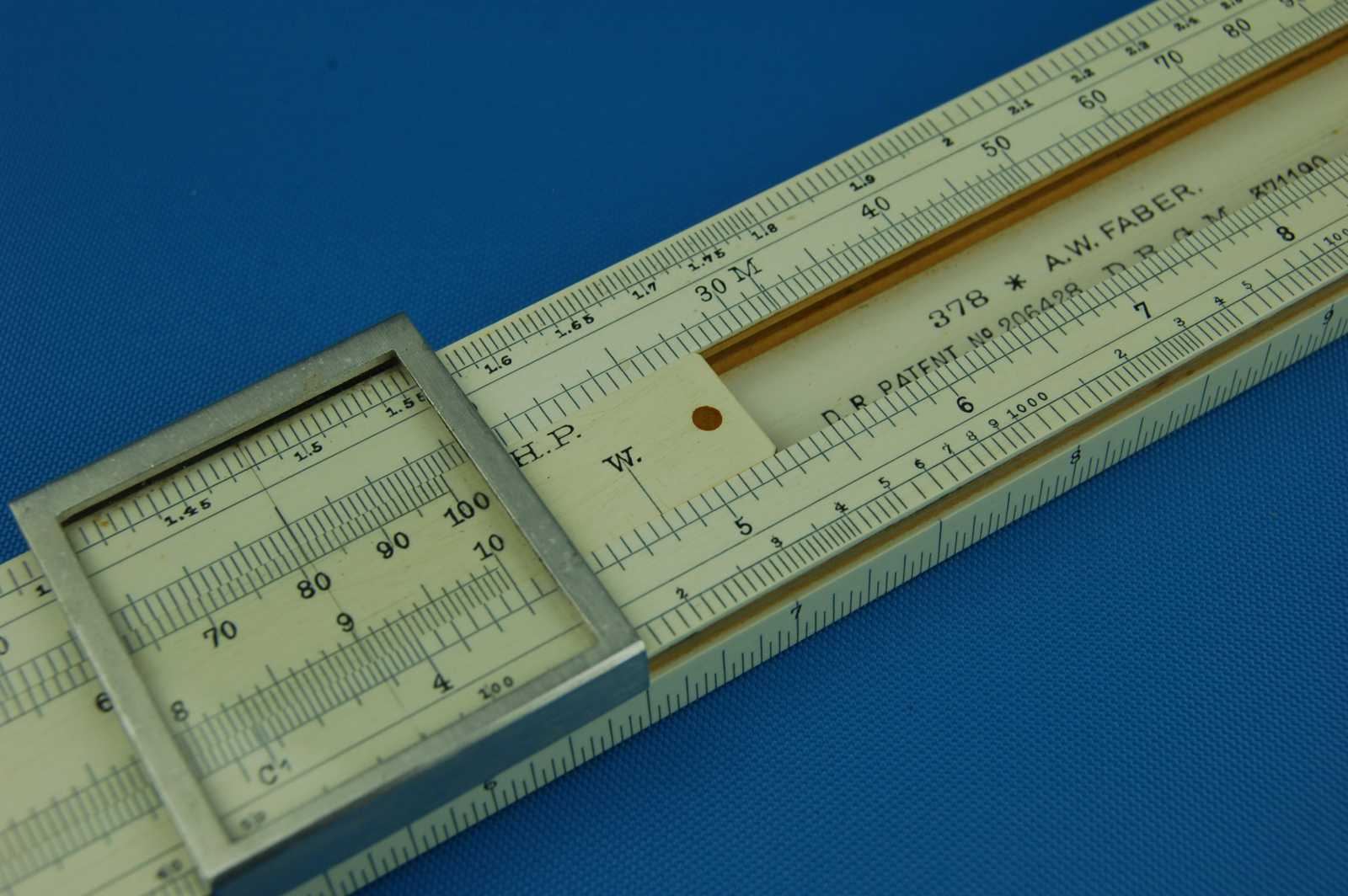

Stock:	"378 * A.W. FABER." then underneath "D. R. PATENT. No 206428. D.R.G.M. 371190. and underneath "MADE IN BAVARIA" all centred, in the well at the right end, sans-serif. "Quot. +1" and "Prod. -1" on the left and right ends respectively of the front lower stock rail, sans-serif. "K.W." at the right end of the A scale.
Slide:	"mm²" & "H.P." at the left and right ends respectively of the B scale.
Cursor:	-

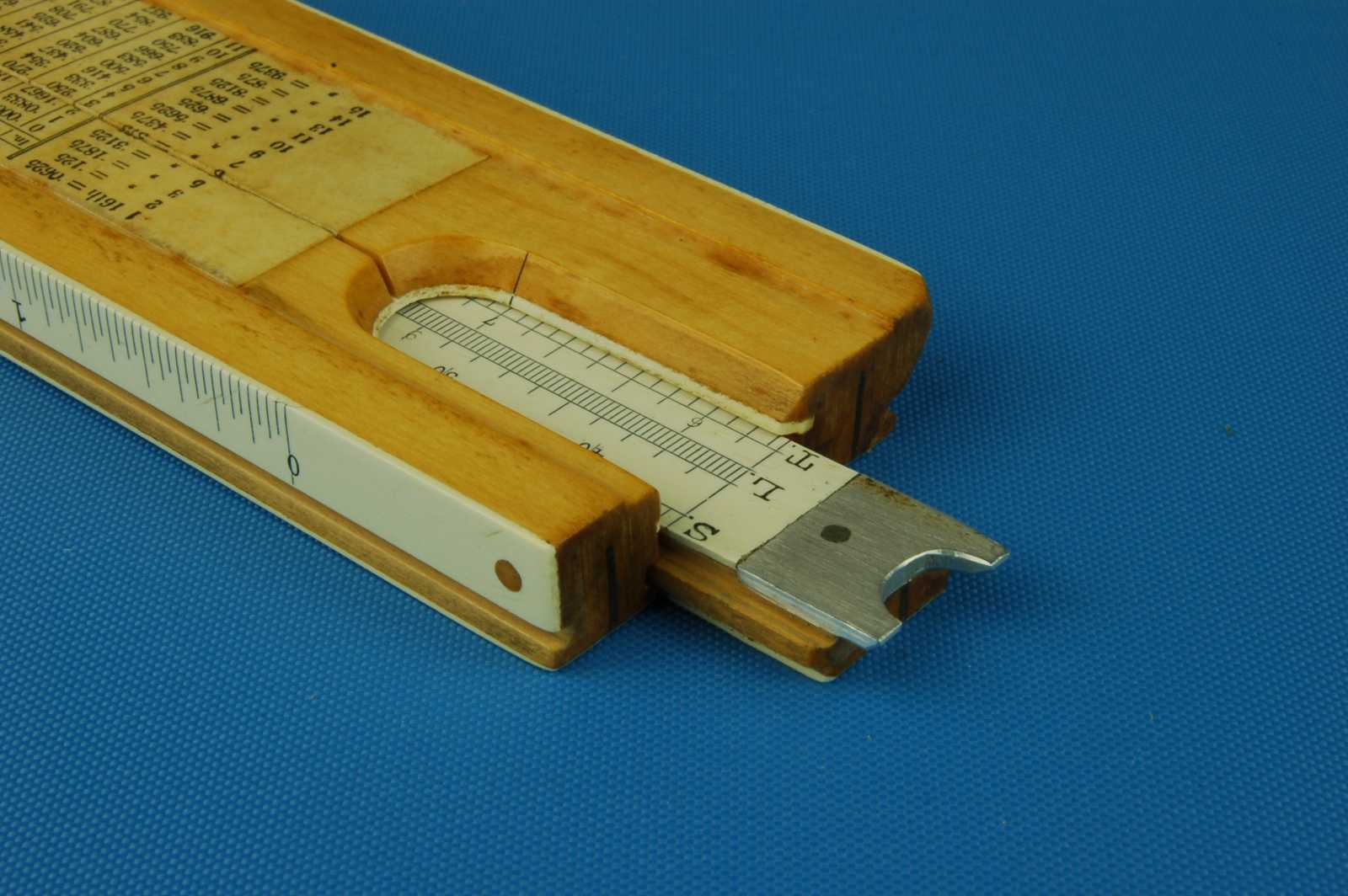

Labels:	On back, paper table featuring conversions and mathematical and physical constants.
Instructions
Original "Calculating Rule" instructions, illustrations sheet and "FOR ELECTRICAL AND MECHANICAL ENGINEERS" electro instructions, all a little tatty and dirty, the latter being more torn and delicate. These can all be seen here.

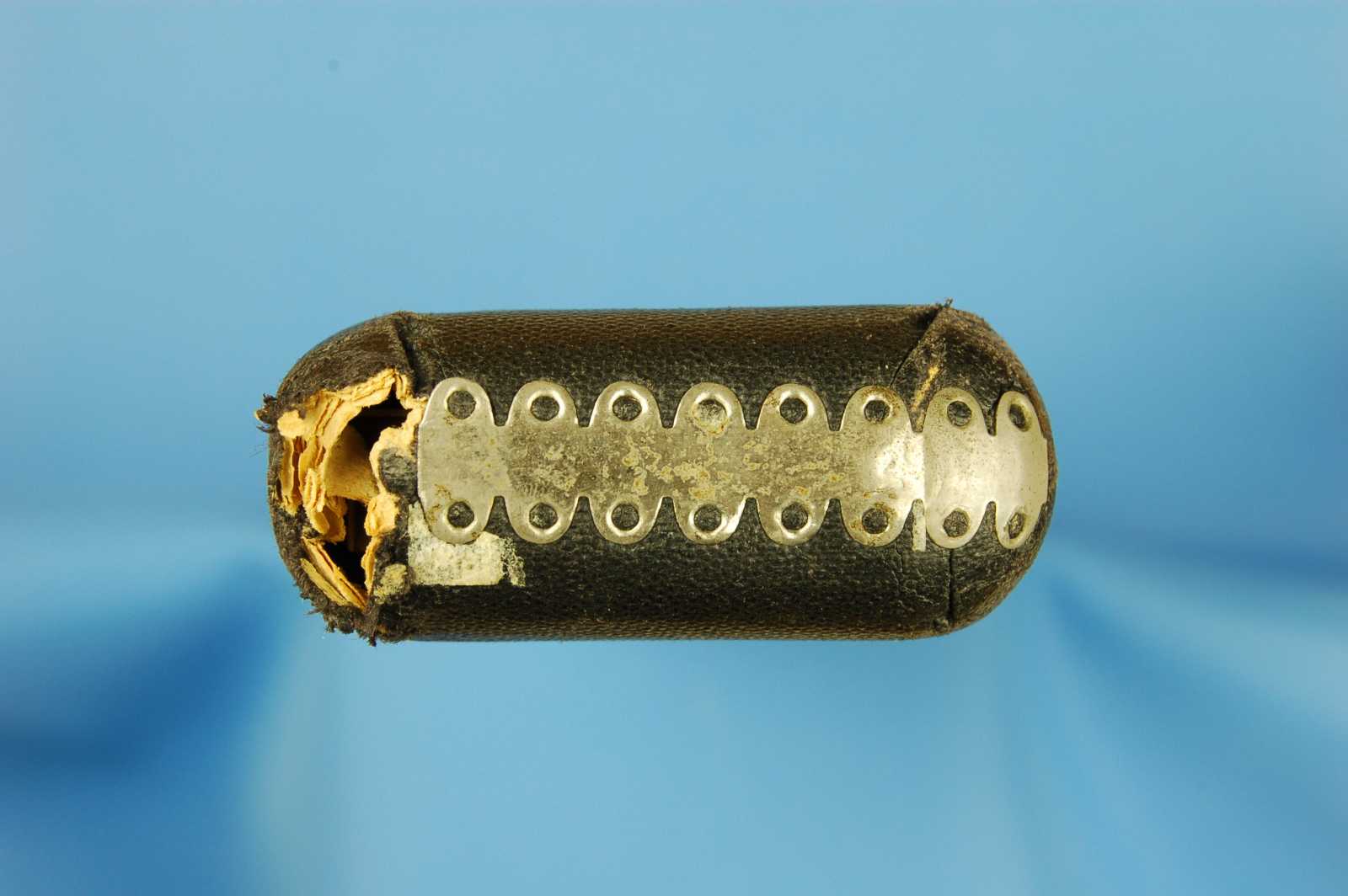

Box (colours as shown)
Style:	Rounded	L x W x D mm:	305 x 50 x 23
Material:	Cardboard	Colour:	Black

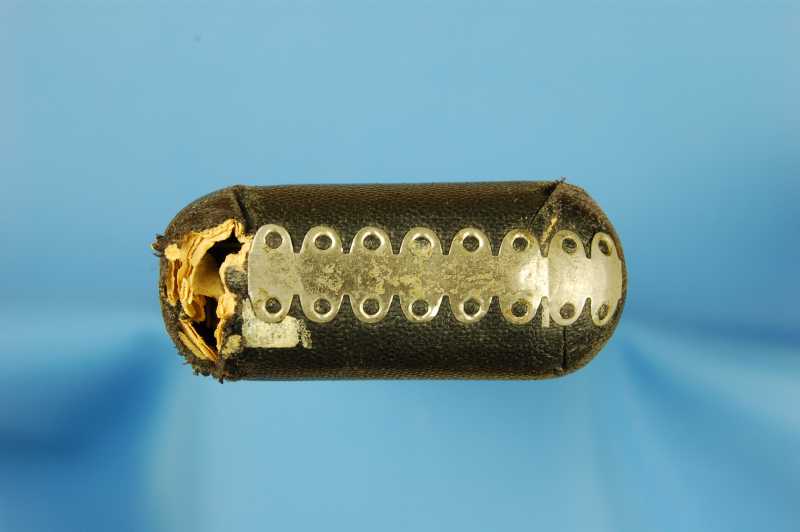

Construction:	2 part, internal sleeve join. Cloth covered. Metal braced ends.
Printing:	"A.W. FABER." and underneath "D.R.P. No 206428" followed by "MADE IN BAVARIA." on the front.

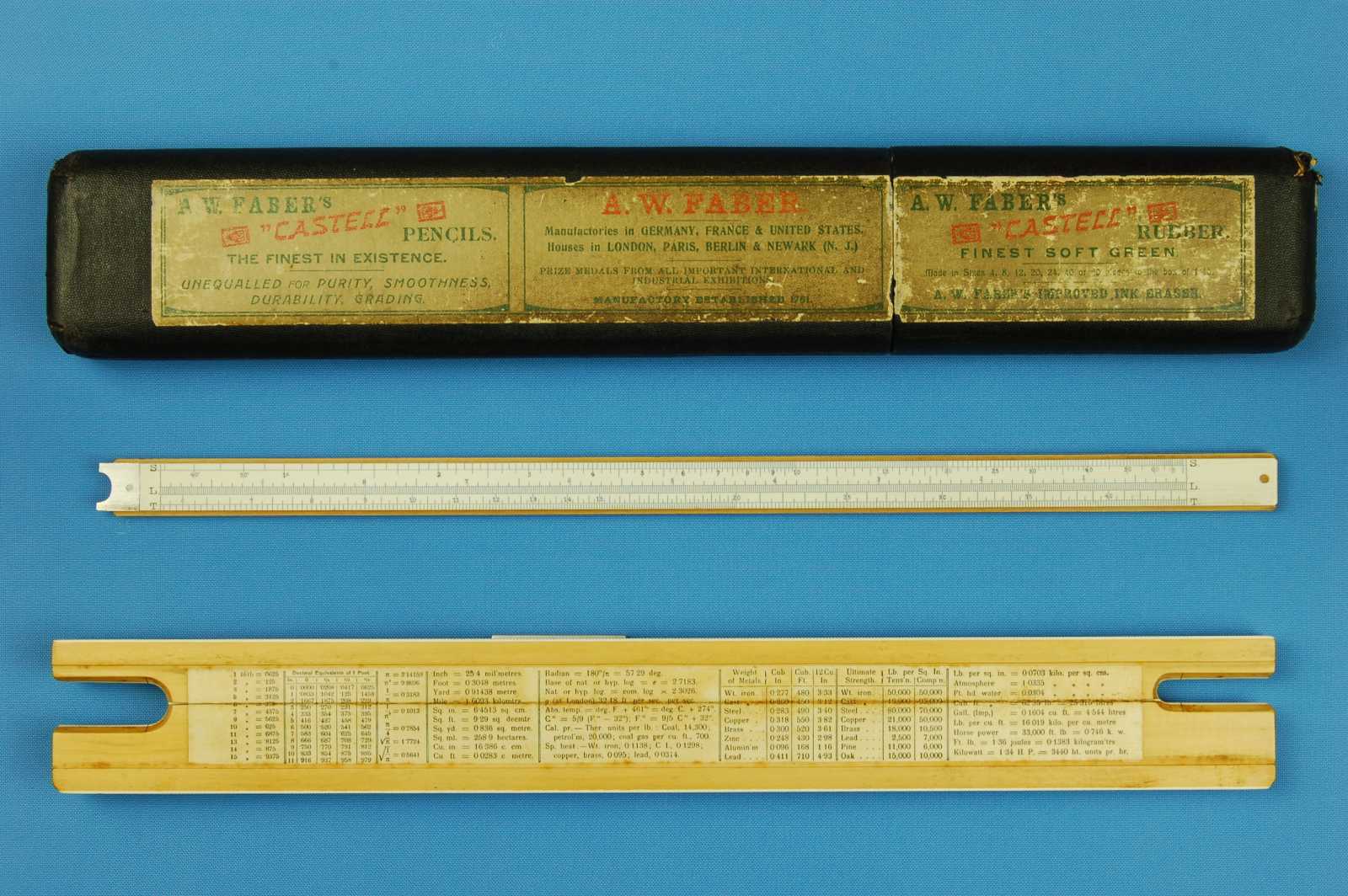

Labels:	Large red/green on white advertising label on back. Possible trace of model number label on right end (ends damaged).
Detail Images
^^ Top ^^ Click on the images for enlargements. ^^ Top ^^ Click on the images for enlargements. ^^ Top ^^ Click on the images for enlargements. ^^ Top ^^ Click on the images for enlargements. ^^ Top ^^ Click on the images for enlargements. ^^ Top ^^ Click on the images for enlargements.

^^ Top ^^

<< Back to Model Type

Click on the images for enlargements.

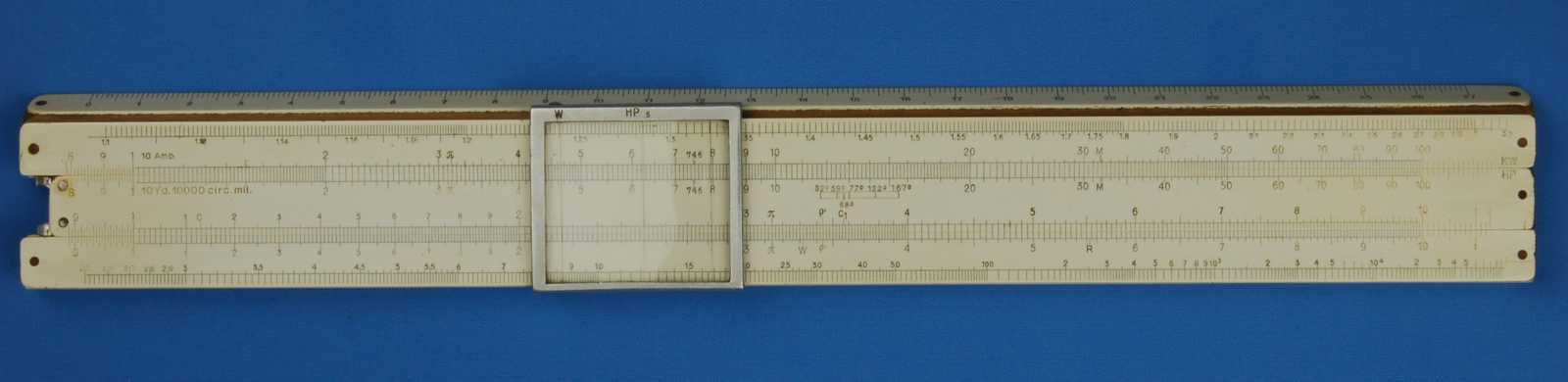

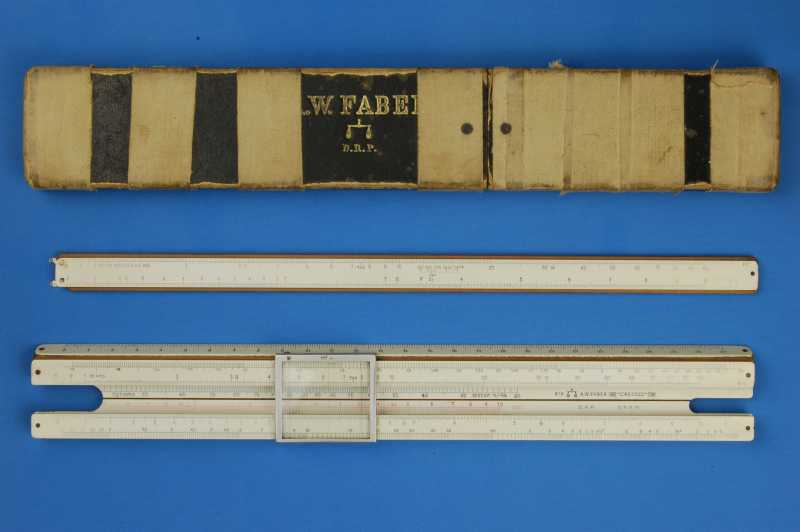

A W Faber "Castell" 378 `(1932)`

		Summary
		System:	Electro
		Specialization:	Electrical & Mechanical Engineers
		Type:	Closed frame
		Material:	Pearwood
		Facings:	Celluliod
		Scale Length:	25cm	No of Scales:	12
		Front Length:	295mm	Front Width:	32mm
		Language:	English	Origin:	Bavaria
		Date:	1932, December
Features/Notes:	-
Scales (colours as shown)

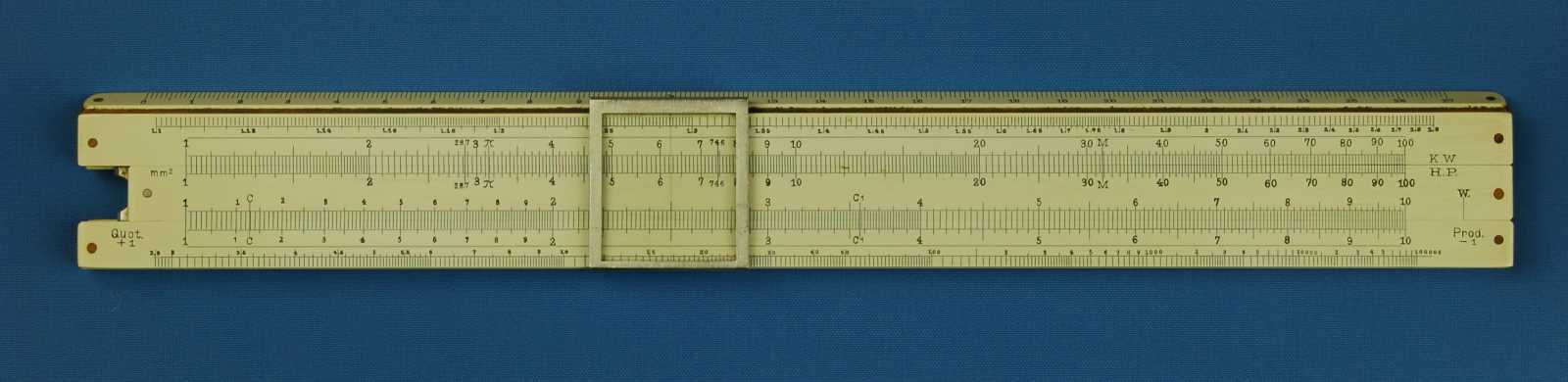

Front:	LL₂, A [ B, §₁, C ] D, LL₃	Back:	[ S, L, T ]
Labels Left:	-	Labels Left:	All, as scales
Labels Right:	-	Labels Right:	All, as scales
Style:	Railway track	Typeface:	Sans-serif
Extensions:	A, B, C & D beyond 1 & 10 in red	Decimals:	As units between 1 & 2 on C & D
Gauge Marks:	p (3.14) on A, B, C & D M (1/p=0.318) on A & B C (1.13) on C C₁ (3.57) on C 746 on A & B r" (2063) on C & D r' (3438) on C & D W (3.32) on D R (5.53) on D	Rulers:	cm on top edge inch on bottom edge

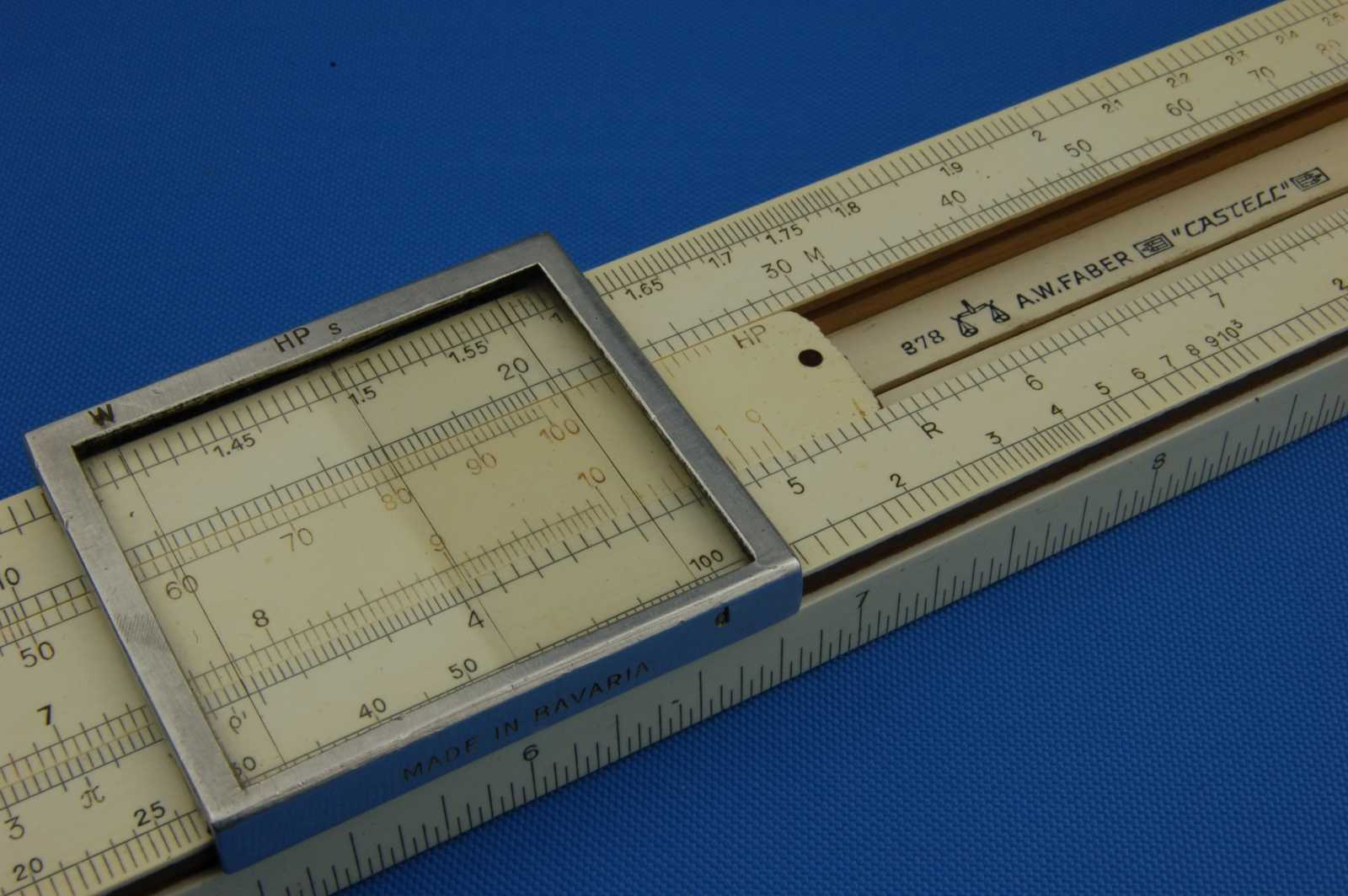

Features/Notes:	Model 378 electro scale layout (DRGM 379365, 1924). "Dynamo"/"Motor n=%" scale and "Volt" scale (DRGM 379366, 1924), labelled, in the well. Volt scale numbers and label in red. Electrical resistance and power load (DRGM 881735, 1924) measured on the A scale. §₁ is a short temperature scale on slide close to B scale. Range 32� to 167� between approx. 11.6 and 15.5 of B scale, with additional marks for 59�, 68�, 77� and 122�.
Construction

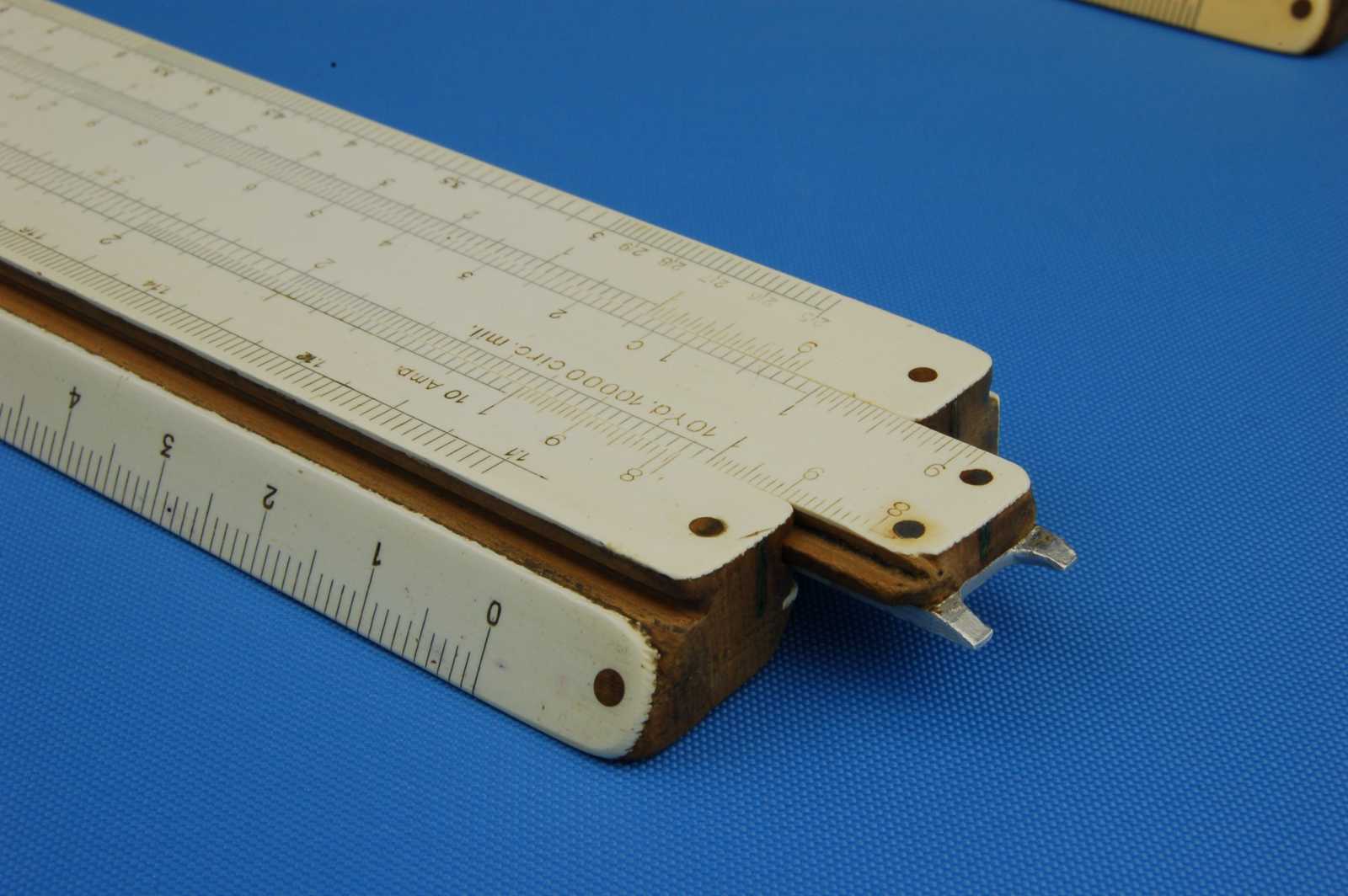

Stock:	2 part split stock joined with steel springs (DRGM 522689, 1912; DRGM 452965, 1911). Braced with longitudinal metal strips (DRP 206428, 1908). Left and right viewing cutouts with index marks, in back for reverse of slide. Bevelled top edge, square bottom edge. High cursor grooves both cut parallel to front face. Shallow rebate in back . Front, well, top and bottom edges celluloid faced, secured with wooden pins (DRGM 371190, 1908). Length x Width x Height (mm) - 295 x 39 x 11
Slide:	Double sided Braced with longitudinal metal strips (DRP 206428, 1908) Aluminium index edge at the left end (DRGM 247514, 1905) secured with two rivets. Celluliod faced on both sides, secured with wooden pins (DRGM 371190, 1908) Shorter than stock, front face length x width (mm) - 288 x 12	Cursor:	Aluminium frame, glass pane. Square window. Left end riveted steel spring on top runner. Three non-eqidistant full length hairlines. Width x Height (mm) - 41 x 36
Printing (colours as shown)
Stock:	"378" + scales logo + "A.W. FABER" + ""CASTELL"" between lying castles in the well above the split towards the right, sans-serif. "D.R.P." and "D.R.G.M." in the well below the split towards the right, sans-serif. "MADE IN BAVARIA." on the bottom centre of the back, sans-serif. "10 Amp." & "KW" at the left and right ends respectively of the A scale.
Slide:	"10 Yd. 10000 circ.mil." & "HP" at the left and right ends respectively of the B scale.
Cursor:	"52" stamped on the right end of the top edge, sans-serif. "MADE IN BAVARIA" stamped on the bottom edge, sans-serif. "W" stamped on the front of the top runner above the left hairline. "HP" and "s" stamped on the front of the top runner above the centre hairline. "d" stamped on the edge of the bottom runner below the right hairline.
Labels:	On back, paper table featuring conversions and mathematical and physical constants.
Instructions
None
Box (colours as shown)

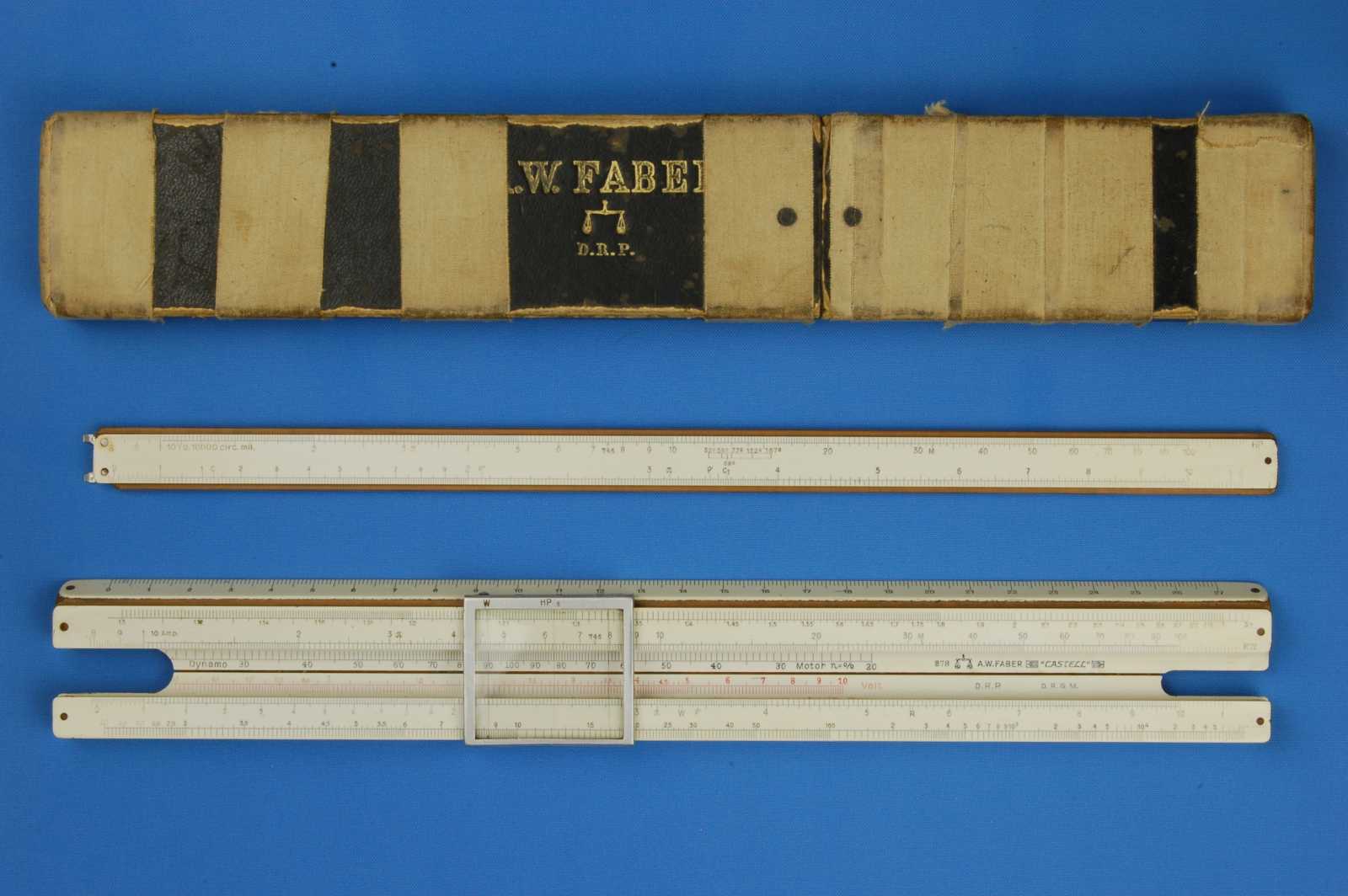

Style:	Square	L x W x D mm:	302 x 48 x 20
Material:	Cardboard	Colour:	Black
Construction:	2 part, internal sleeve join. Faced.
Printing:	"A.W. FABER" and underneath scales logo and "D.R.P." beneath that on the front.

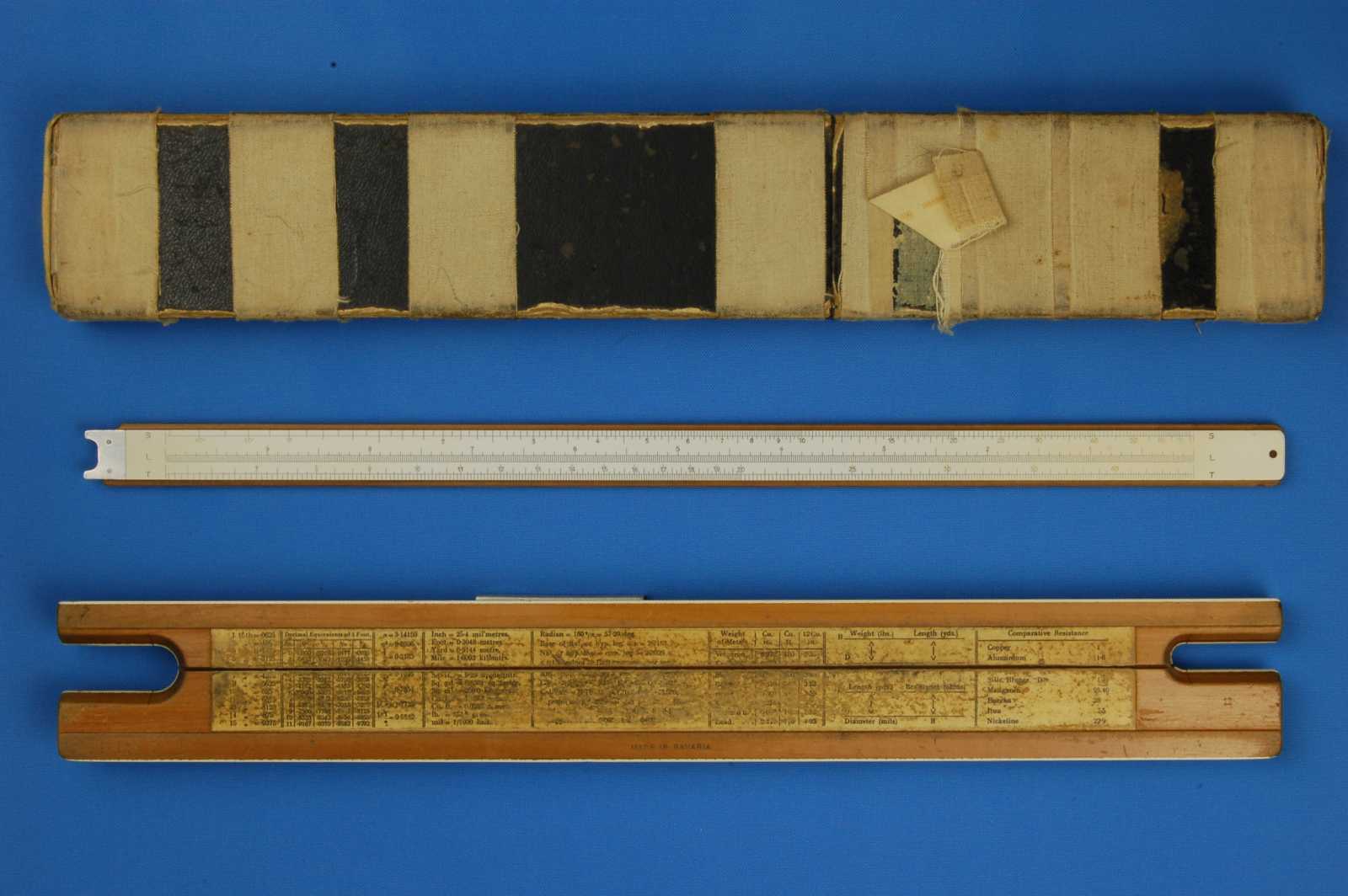

Labels:	None seen, box is heavily taped.
