Faber-Castell 334/83
(100cm Scale Wall hung rule, Demonstration, Novo-Duplex)
Click on the images for enlargements.
Faber-Castell 334/83 (1964) |
|
|
Summary
|
|
System:
|
Novo-Duplex
|
|
Specialization:
|
Demonstration
|
|
Type:
|
Open frame
|
|
Material:
|
Laminated/block wood
|
|
Facings:
|
Plastic
|
|
Scale Length:
|
100cm
|
No of Scales:
|
24
|
|
Front Length:
|
1392mm
|
Front Width:
|
450mm
|
|
Language:
|
English
|
Origin:
|
Germany
|
|

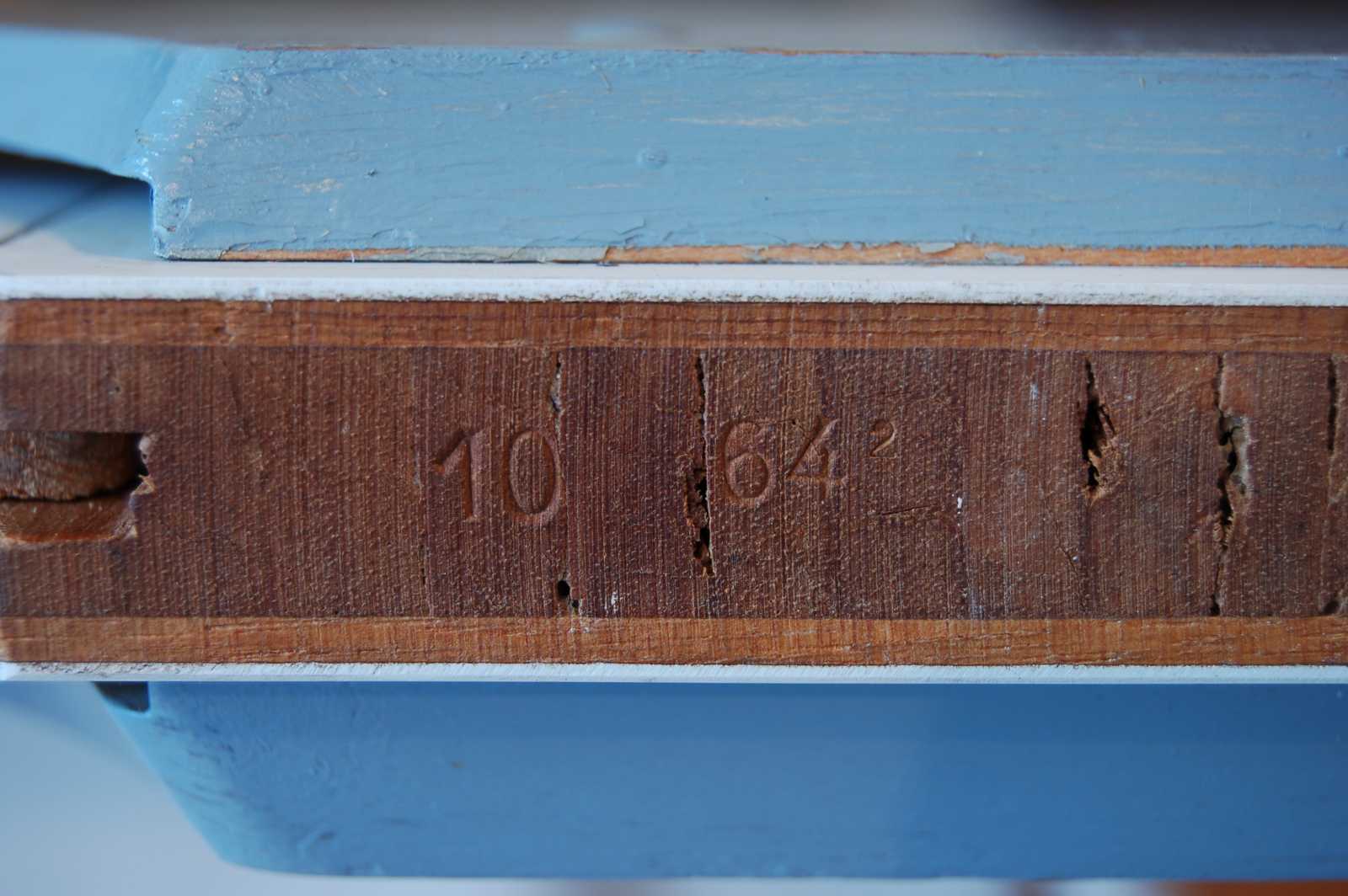

Date:
|
1964, October
|
|
Features/Notes:
|
Demonstration rule for 2/83 & 62/83
|
|
Scales (colours as shown)
|
|

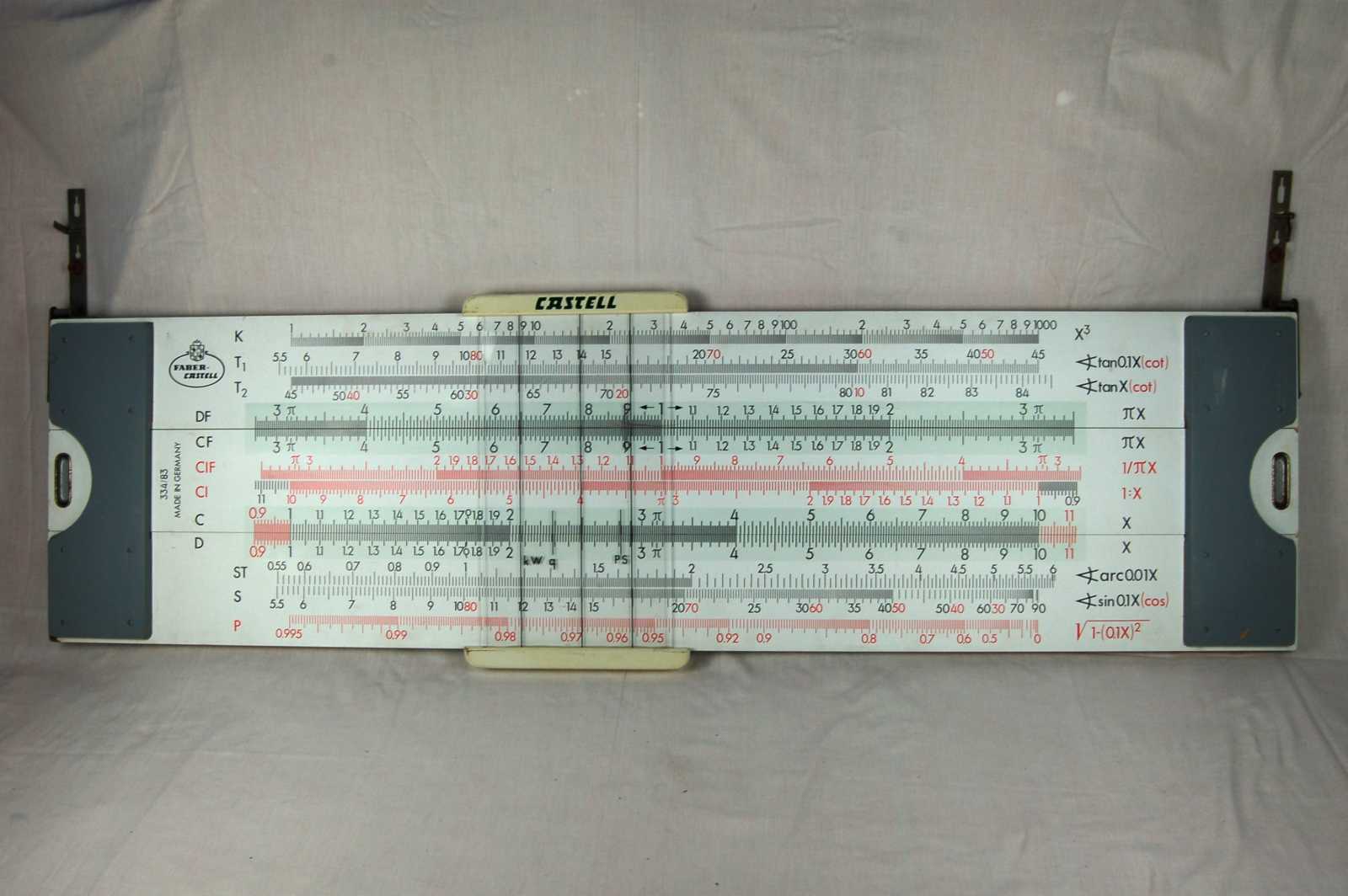

Front:
|
K, T1, T2, DF [ CF, CIF, CI, C ] D, ST, S, P |

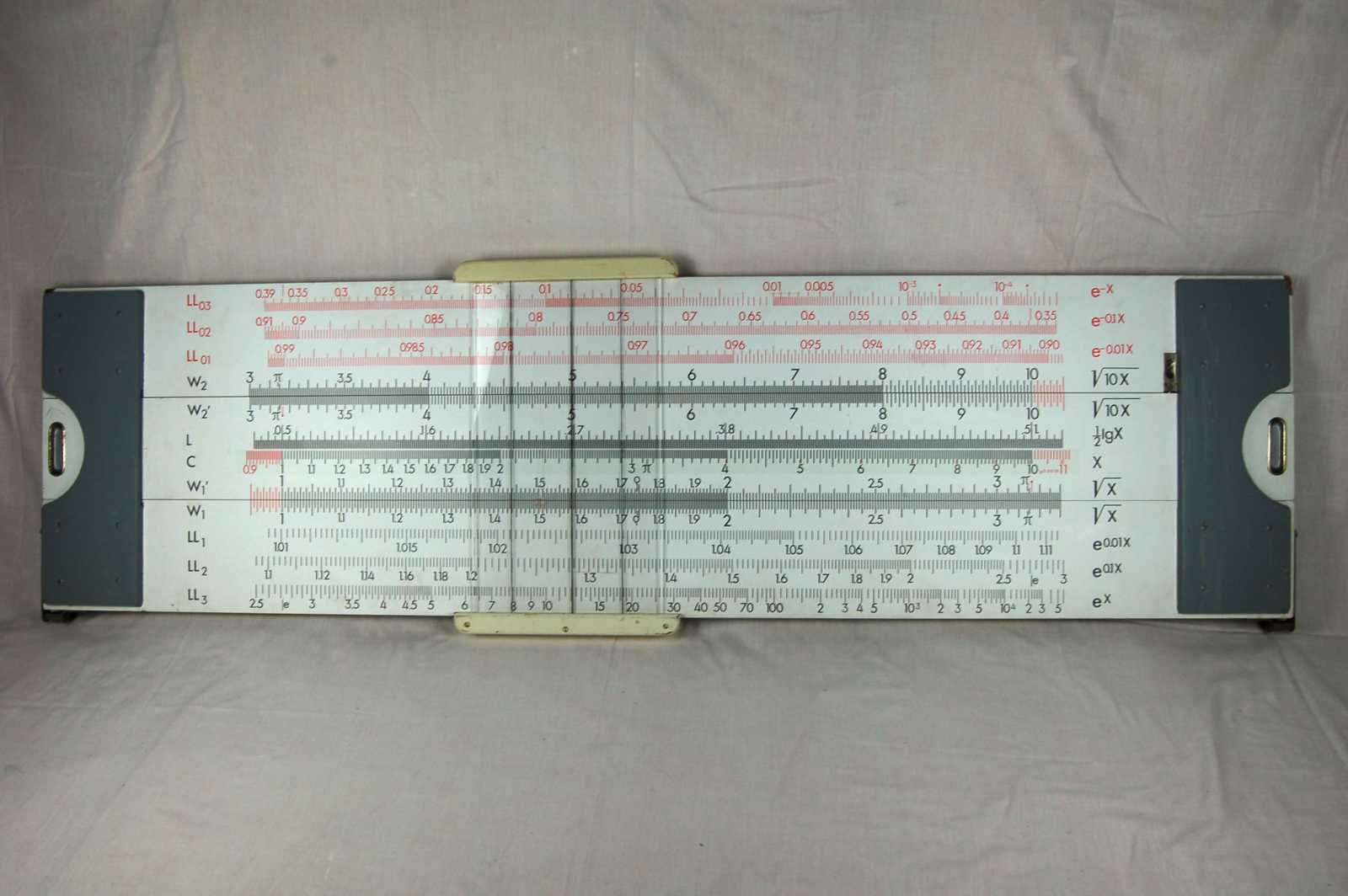

Back:
|
LL03, LL02, LL01, W2 [ W2', L, C, W1' ] W1, LL1, LL2, LL3 |
|
Labels Left:
|
All, as scales
|
Labels Left:
|
All, as scales
|
|
Labels Right:
|
X3, <tan0.1X(cot), <tanX(cot), pX [ pX, 1/pX, 1/X, X ] X, <arc0.01X, <sin0.1X(cos), Ö1-(0.1X)2 |
Labels Right:
|

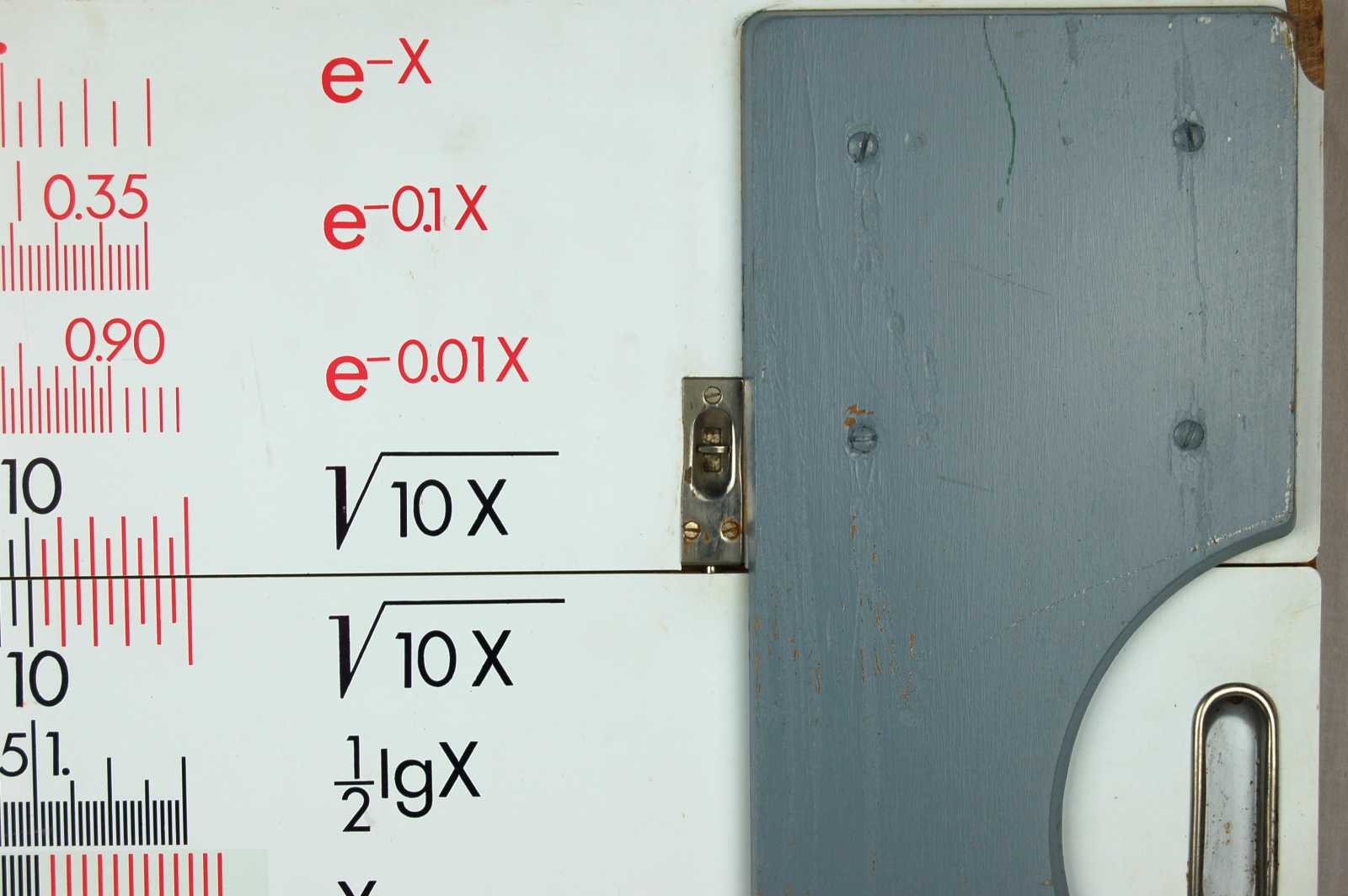

e-X, e-0.1X, e-0.01X, Ö10X [ Ö10X, 1/2lgX, X, ÖX ] ÖX, e0.01X,e0.1X, eX |
|
Style:
|
Normal
|
Typeface:
|
Sans-serif
|
|
Extensions:
|
Beyond 1 and 10 on C & D in red
Below 1 on W1 & W1' in red
Above 10 on W2 & W2' in red
Beyond 1 and 10 on CI in black
|
Decimals:
|
Tenths between 1 & 2 on C, D, CF, DF, CI, CIF, W1 & W1'
|
|
Gauge Marks:
|
p (3.14) on C, D, W1, W1', W2, W2', CI and twice each on DF, CF, CIF
r (1745) on C (front only), D, W1 and W1'
e (2.718) on LL2 & LL3 |
Rulers:
|
-
|
|
Features/Notes:
|
C, D, CF & DF feature a mint green background.
(cot) numbers are printed in red on T1 and T2.
(cos) numbers are printed in red on S.
|
|
Construction
|
|
Stock:
|
Upper and lower rails of stock joined by wooden straps at each end, front and back (total 4).
Each strap features a cut-out for accessing recessed grips in slide.
Front and back faced with plastic.
On back of upper rail inside of right hand strap is a slide lock (DRGM 1864929, 1963) for use in transport.

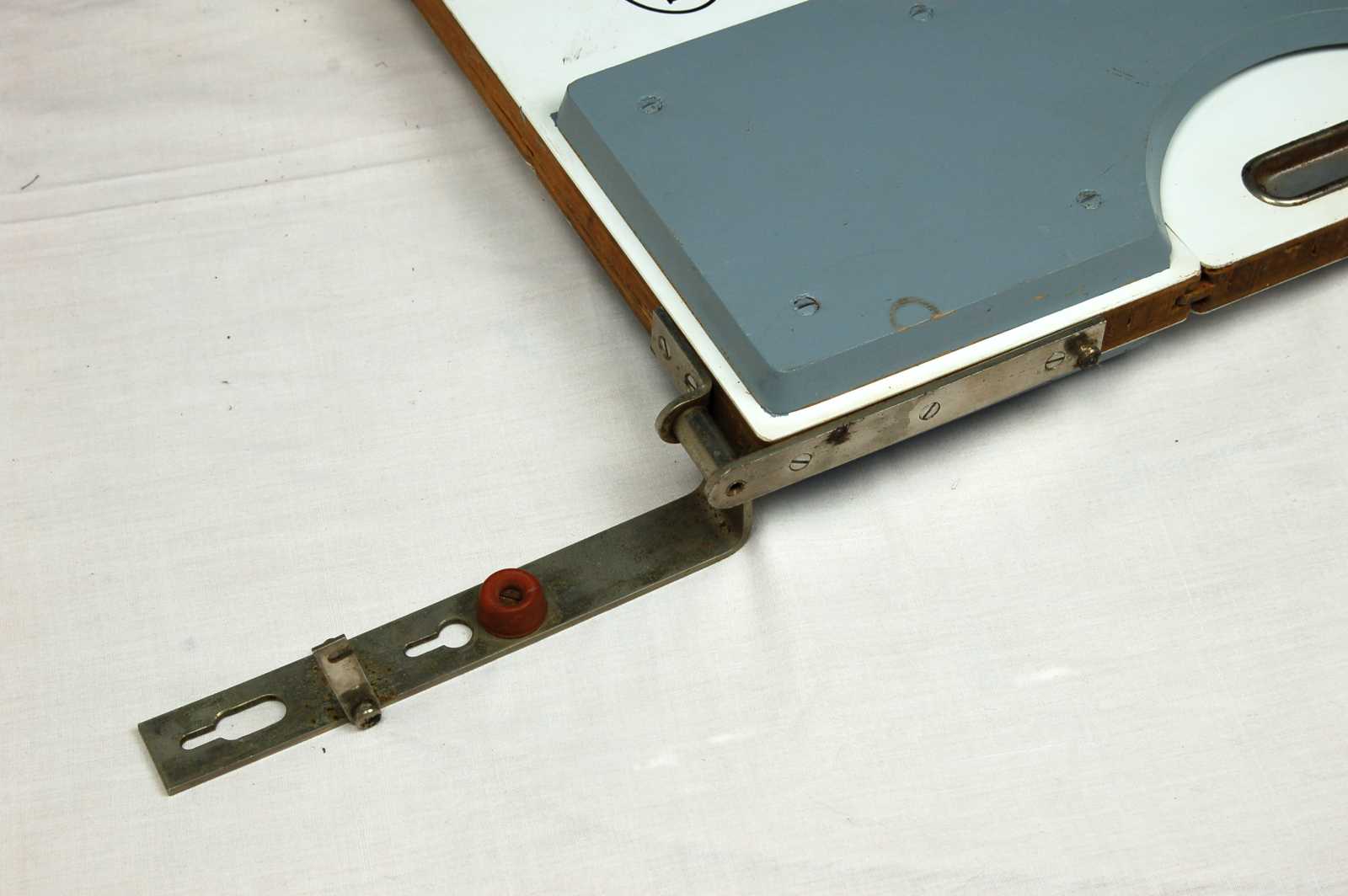

At the top left and right hand ends are metal hanging brackets, hinged and with a clasp allowing both sides of the rule to be demonstrated without the need to remove the rule from its position.
Length x Width x Height (mm) - 1700 x 450 x 22 excluding straps, 48mm thick including straps.
|
|
Slide:
|
Double sided
Plastic faced on both sides
Metal recessed grips at each end on both sides.
Front face width (mm) - 140
|
Cursor:
|
Double sided, wrapping the stock.
Top and bottom wooden runners.
Front:
- three non-equidistant full length black hairlines, left hairline labelled "kW".
- two short non-equidistant black hairlines for C & D scales, left of centre labelled "q", right of centre labelled "PS".
- one short black hairline right of centre for CF & FD scales.
Back:
- three non-equidistant full length black hairlines.
- one short red hairline right of centre for C & W1' scales labelled "q".
Width x Height x Depth (mm) - 300 x 498 x 44
|
|
Printing (colours as shown)
|
|
Stock:
|

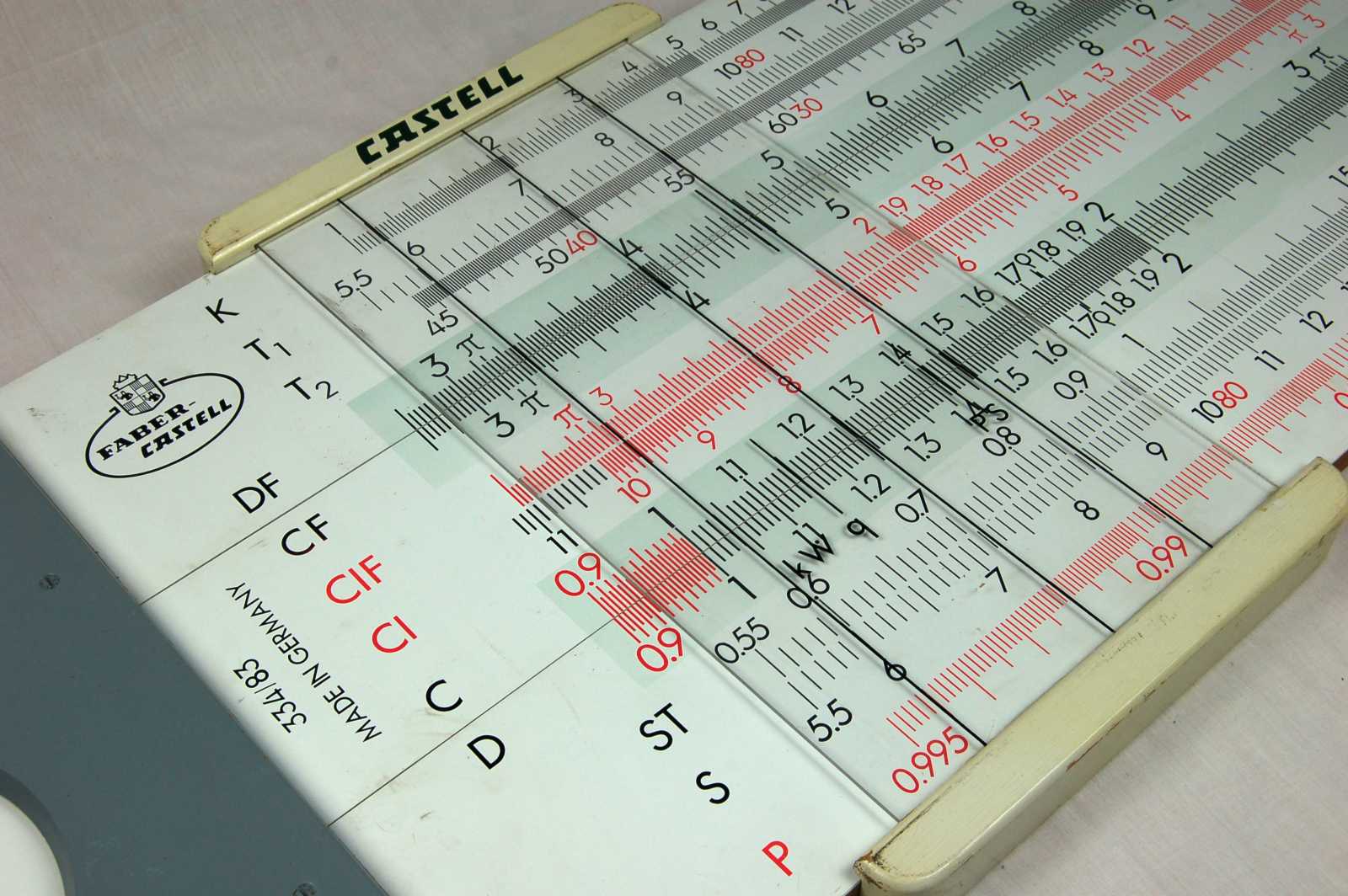

Oval "FABER-CASTELL" logo with shield on the left front upper rail.
|
|
Slide:
|
"334/83" and "MADE IN GERMANY" vertically on the left front
|
|
Cursor:
|
"CASTELL" on front of top runner.
|
|
Labels:
|
None
|
|
Instructions
|
|
None
|
|
Box (colours as shown)
|
|
Style:
|
Not present
|
L x W x D mm:
|
-
|
|
Material:
|
-
|
Colour:
|
-
|
|
Construction:
|
-
|
|
Printing:
|
-
|
|
Labels:
|
-
|
|
